Transistors / Power Field-Effect Transistors / FDA70N20
Datasheets
FDA70N20 by:

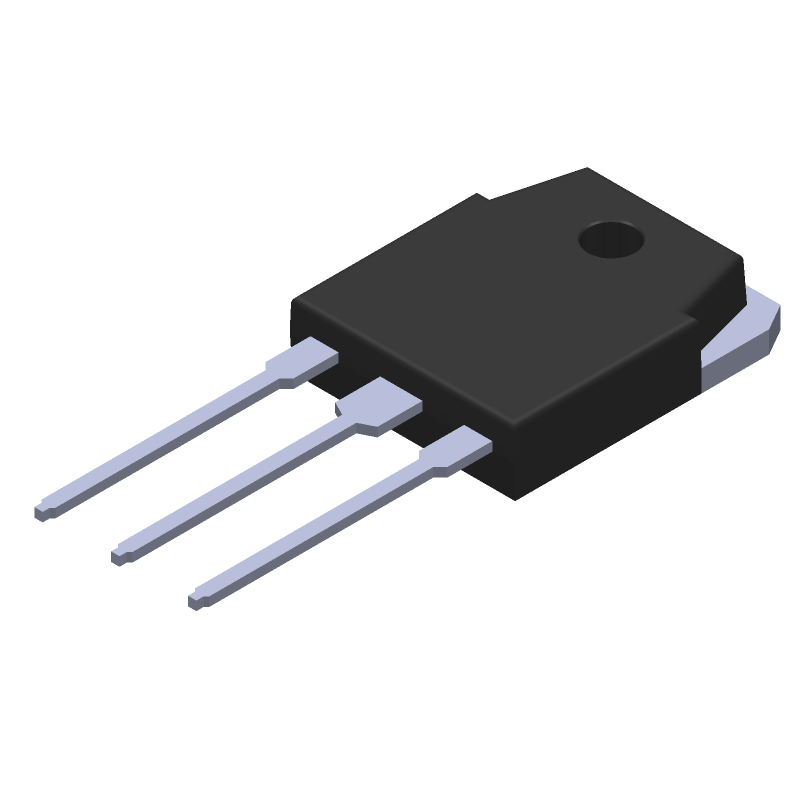

Power MOSFET, N-Channel, UniFETTM, 200V, 70A, 35mΩ, TO-3P, TO-3P-3L, 450-TUBE

Part Details for FDA70N20 by onsemi

Results Overview of FDA70N20 by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Medical Imaging Automotive Robotics and Drones

FDA70N20 Information

FDA70N20 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for FDA70N20

Part # Distributor Description Stock Price Buy
DISTI # 86K1322
Newark Mosfet (Metal-Oxide-Semiconductor Field-Effect Transistor) |Onsemi FDA70N20 RoHS: Not Compliant Min Qty: 450 Package Multiple: 1 Date Code: 0 Container: Bulk 0
Buy Now
DISTI # FDA70N20
TME Transistor: N-MOSFET, unipolar, 200V, 45A, Idm: 280A, 417W, TO3PN Min Qty: 1 0
  • 1 $2.8800
  • 10 $2.6000
  • 30 $2.3000
  • 120 $2.0600
$2.0600 / $2.8800 RFQ
DISTI # FDA70N20
Avnet Silica Trans MOSFET NCH 200V 70A 3Pin3Tab TO3PN Rail (Alt: FDA70N20) RoHS: Compliant Min Qty: 900 Package Multiple: 30 Lead time: 143 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited MOSFET N-CH 200V 70A TO3PN 675
RFQ
DISTI # FDA70N20
EBV Elektronik Trans MOSFET NCH 200V 70A 3Pin3Tab TO3PN Rail (Alt: FDA70N20) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 143 Weeks, 0 Days EBV - 0
Buy Now

Part Details for FDA70N20

FDA70N20 Part Data Attributes

Parametric Data
FDA70N20 onsemi
Buy Now Datasheet
Compare Parts:
FDA70N20 onsemi Power MOSFET, N-Channel, UniFETTM, 200V, 70A, 35mΩ, TO-3P, TO-3P-3L, 450-TUBE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ONSEMI
Part Package Code TO-3P-3L
Package Description TO-3PN, 3 PIN
Manufacturer Package Code 340BZ
Reach Compliance Code not_compliant
ECCN Code EAR99
Factory Lead Time 4 Weeks
Samacsys Manufacturer onsemi
Additional Feature FAST SWITCHING
Avalanche Energy Rating (Eas) 1742 mJ
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 200 V
Drain Current-Max (ID) 70 A
Drain-source On Resistance-Max 0.035 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 417 W
Pulsed Drain Current-Max (IDM) 280 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for FDA70N20

This table gives cross-reference parts and alternative options found for FDA70N20. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FDA70N20, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STW75N20 STMicroelectronics Check for Price 75A, 200V, 0.034ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, ROHS COMPLIANT PACKAGE-3 FDA70N20 vs STW75N20
FMW73N20GSC-K1 Fuji Electric Co Ltd Check for Price Power Field-Effect Transistor, 73A I(D), 200V, 0.036ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247, TO-247, 3 PIN FDA70N20 vs FMW73N20GSC-K1

FDA70N20 Related Parts

FDA70N20 Frequently Asked Questions (FAQ)

  • The maximum SOA for the FDA70N20 is typically defined by the device's voltage and current ratings. For the FDA70N20, the maximum voltage rating is 700V and the maximum current rating is 20A. However, the actual SOA may be limited by the device's thermal characteristics and the application's specific requirements.

  • Proper thermal management is crucial for the FDA70N20. Ensure good thermal contact between the device and the heat sink, and use a thermal interface material (TIM) if necessary. The heat sink should be designed to dissipate the maximum expected power loss, and the device's thermal resistance (RθJA) should be considered in the design.

  • The recommended gate drive voltage for the FDA70N20 is typically between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and the desired switching performance. A higher gate drive voltage can result in faster switching times, but may also increase power consumption.

  • To protect the FDA70N20 from overvoltage and overcurrent conditions, consider using a voltage clamp or a surge protector to limit the voltage across the device. Additionally, a current sense resistor and a fuse or a current limiter can be used to detect and respond to overcurrent conditions.

  • For optimal performance and reliability, the PCB layout should minimize parasitic inductance and capacitance. Use a solid ground plane, keep the gate drive traces short and wide, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using a Kelvin connection for the gate drive to reduce noise and improve switching performance.
