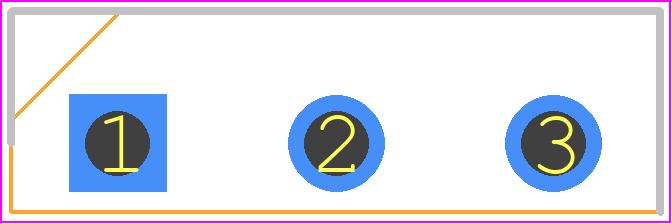

Footprint
-

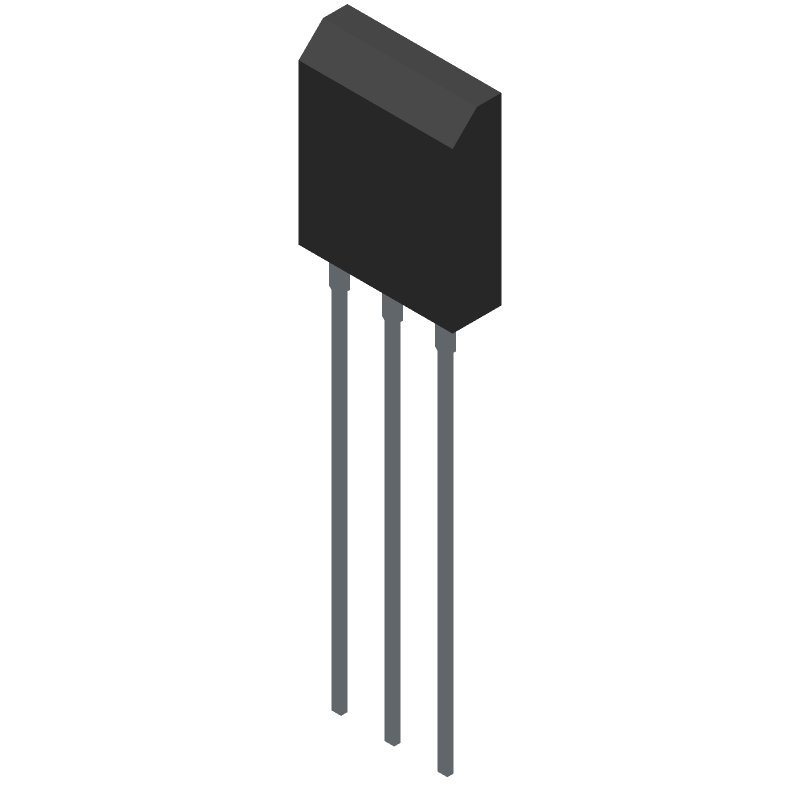

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDA38N30 by onsemi
Results Overview of FDA38N30 by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FDA38N30 Information
FDA38N30 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDA38N30
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y1333
|
Newark | Mosfet Transistor, N Channel, 38 A, 300 V, 0.07 Ohm, 10 V, 5 V Rohs Compliant: Yes |Onsemi FDA38N30 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1196 |
|
$2.8200 / $3.7600 | Buy Now |
|
DISTI #
FDA38N30-ND
|
DigiKey | MOSFET N-CH 300V 38A TO3PN Min Qty: 1 Lead time: 8 Weeks Container: Tube |
9856 In Stock |
|
$1.8500 / $4.8100 | Buy Now |
|
DISTI #
FDA38N30
|
Avnet Americas | Trans MOSFET N-CH 300V 38A 3-Pin(3+Tab) TO-3P(N) Rail - Rail/Tube (Alt: FDA38N30) RoHS: Compliant Min Qty: 450 Package Multiple: 450 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$1.7412 / $1.8049 | Buy Now |
|
DISTI #
512-FDA38N30
|
Mouser Electronics | MOSFETs UniFET1 300V N-chan MOSFET RoHS: Compliant | 1131 |
|
$1.8500 / $4.7200 | Buy Now |
|
DISTI #
E02:0323_02176673
|
Arrow Electronics | Trans MOSFET N-CH 300V 38A 3-Pin(3+Tab) TO-3P Tube Min Qty: 450 Package Multiple: 30 Lead time: 8 Weeks Date Code: 2452 | Europe - 450 |
|
$1.8958 / $1.9243 | Buy Now |
|
DISTI #
V79:2366_30504749
|
Arrow Electronics | Trans MOSFET N-CH 300V 38A 3-Pin(3+Tab) TO-3P Tube Min Qty: 1 Package Multiple: 1 Date Code: 2330 | Americas - 77 |
|
$1.8460 / $4.4930 | Buy Now |
|
|
Onlinecomponents.com | N-Channel Power MOSFET, UniFETTM, 300V, 38A, 85mΩ, TO-3P RoHS: Compliant | 0 |
|
$1.7500 / $2.2100 | Buy Now |
|
DISTI #
87736363
|
Verical | Trans MOSFET N-CH 300V 38A 3-Pin(3+Tab) TO-3P Tube Min Qty: 450 Package Multiple: 450 Date Code: 2452 | Americas - 450 |
|
$1.8893 / $1.9178 | Buy Now |
|
DISTI #
87073523
|
Verical | Trans MOSFET N-CH 300V 38A 3-Pin(3+Tab) TO-3P Tube Min Qty: 155 Package Multiple: 1 Date Code: 2201 | Americas - 174 |
|
$2.4250 | Buy Now |
|
DISTI #
87839627
|
Verical | Trans MOSFET N-CH 300V 38A 3-Pin(3+Tab) TO-3P Tube Min Qty: 4 Package Multiple: 1 Date Code: 2330 | Americas - 77 |
|
$1.8460 / $4.4930 | Buy Now |
Part Details for FDA38N30
FDA38N30 CAD Models
FDA38N30 Part Data Attributes
|
|
FDA38N30
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDA38N30
onsemi
Power MOSFET, N-Channel, UniFETTM, 300V, 38A, 85mΩ, TO-3P, TO-3P-3L, 450-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-3P-3L | |
| Package Description | TO-3PN, 3 PIN | |
| Manufacturer Package Code | 340BZ | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 1200 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 300 V | |
| Drain Current-Max (ID) | 38 A | |
| Drain-source On Resistance-Max | 0.085 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 312 W | |
| Pulsed Drain Current-Max (IDM) | 150 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
