Part Details for FCX458TA by Diodes Incorporated
Results Overview of FCX458TA by Diodes Incorporated
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Space Technology
Industrial Automation
Telecommunications
Electronic Manufacturing
FCX458TA Information
FCX458TA by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FCX458TA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2061438RL
|
element14 Asia-Pacific | , NPN, 400V, 0.225A, SOT89 RoHS: Compliant Min Qty: 50 Container: Reel | 1 |
|
$0.2200 / $0.2700 | Buy Now |
|
DISTI #
2061438
|
element14 Asia-Pacific | , NPN, 400V, 0.225A, SOT89 RoHS: Compliant Min Qty: 1 Container: Cut Tape | 1 |
|
$0.2200 / $0.7000 | Buy Now |
|
DISTI #
FCX458CT-ND
|
DigiKey | TRANS NPN 400V 0.225A SOT-89-3 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5005 In Stock |
|
$0.1313 / $0.7400 | Buy Now |
|
DISTI #
FCX458TA
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 400 V, 225 mA, 1 W, SOT-89, Surface Mount - Tape and Reel (Alt: FCX458TA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1235 / $0.1340 | Buy Now |
|
DISTI #
522-FCX458TA
|
Mouser Electronics | Bipolar Transistors - BJT NPN High Voltage RoHS: Compliant | 33783 |
|
$0.1310 / $0.6800 | Buy Now |
|
DISTI #
E02:0323_01116064
|
Arrow Electronics | Trans GP BJT NPN 400V 0.225A 2000mW 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Date Code: 2505 | Europe - 31000 |
|
$0.1118 / $0.1443 | Buy Now |
|
DISTI #
A03:0893_13588143
|
Arrow Electronics | Trans GP BJT NPN 400V 0.225A 2000mW 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Date Code: 2505 | Asia - 2000 |
|
$0.1111 / $0.1570 | Buy Now |
|
DISTI #
70550454
|
RS | NPN High Voltage Transistor SOT-89 Min Qty: 25 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4340 | RFQ |
|
|
Bristol Electronics | Min Qty: 7 | 825 |
|
$0.1572 / $0.7860 | Buy Now |
|
|
Bristol Electronics | 262 |
|
RFQ |
Part Details for FCX458TA

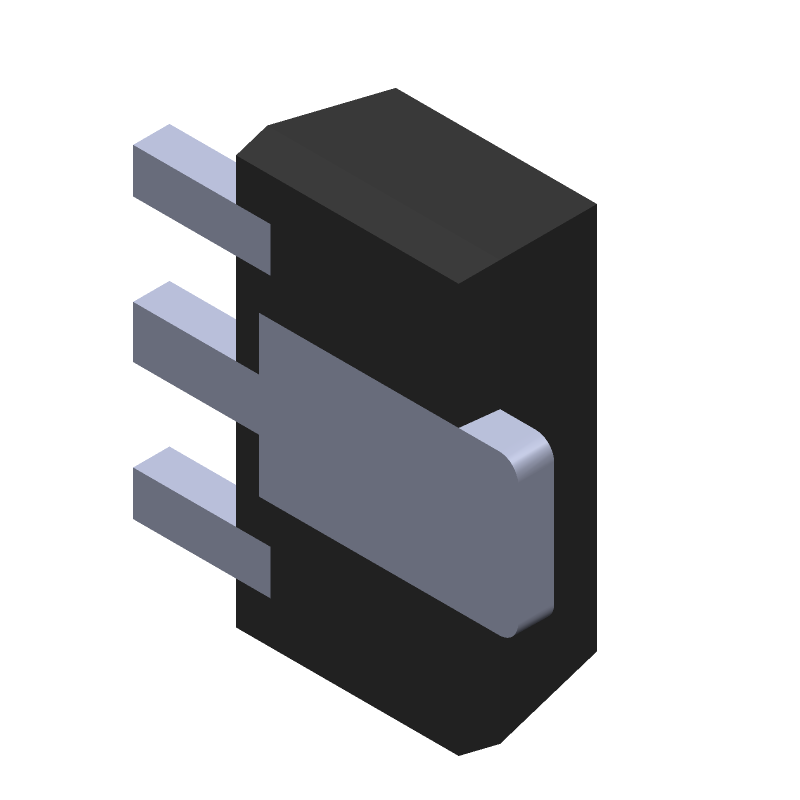

FCX458TA CAD Models
FCX458TA Part Data Attributes
|
|
FCX458TA
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
FCX458TA
Diodes Incorporated
Small Signal Bipolar Transistor, 0.225A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, SOT-89, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Part Package Code | SOT-89 | |
| Package Description | SOT-89, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 0.225 A | |
| Collector-Emitter Voltage-Max | 400 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 50 MHz |
