FCA20N60 Information
FCA20N60 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FCA20N60
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31K6743
|
Newark | Power Mosfet, N Channel, 20 A, 600 V, 150 Mohm, 10 V, 5 V Rohs Compliant: Yes |Onsemi FCA20N60 RoHS: Compliant Min Qty: 450 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.1900 / $3.2900 | Buy Now |
|
DISTI #
FCA20N60-ND
|
DigiKey | MOSFET N-CH 600V 20A TO3PN Min Qty: 1 Lead time: 16 Weeks Container: Tube |
442 In Stock |
|
$3.3825 / $7.0100 | Buy Now |
|
DISTI #
FCA20N60
|
Avnet Americas | Trans MOSFET N-CH 600V 20A 3-Pin(3+Tab) TO-3P Rail - Rail/Tube (Alt: FCA20N60) RoHS: Compliant Min Qty: 450 Package Multiple: 450 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
RFQ | |
|
DISTI #
FCA20N60
|
Avnet Americas | Trans MOSFET N-CH 600V 20A 3-Pin(3+Tab) TO-3P Rail - Rail/Tube (Alt: FCA20N60) RoHS: Compliant Min Qty: 371 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tube | 0 |
|
$2.4192 / $2.6264 | Buy Now |
|
DISTI #
512-FCA20N60
|
Mouser Electronics | MOSFETs HIGH POWER RoHS: Compliant | 372 |
|
$3.3100 / $6.4100 | Buy Now |
|
|
Rochester Electronics | FCS20N60 - Power Field-Effect Transistor, 20A, 600V, 0.19ohm, N-Channel, MOSFET RoHS: Not Compliant Status: Active Min Qty: 1 | 850 |
|
$2.5200 / $3.1500 | Buy Now |
|
DISTI #
FCA20N60
|
TME | Transistor: N-MOSFET, unipolar, 600V, 12.5A, Idm: 60A, 208W, TO3PN Min Qty: 1 | 0 |
|
$2.5100 / $3.5100 | RFQ |
|
DISTI #
FCA20N60
|
Richardson RFPD | POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 450 | 0 |
|
$3.0000 | Buy Now |
|
DISTI #
FCA20N60
|
EBV Elektronik | Trans MOSFET NCH 600V 20A 3Pin3Tab TO3P Rail (Alt: FCA20N60) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 400 |
|
RFQ |
Part Details for FCA20N60

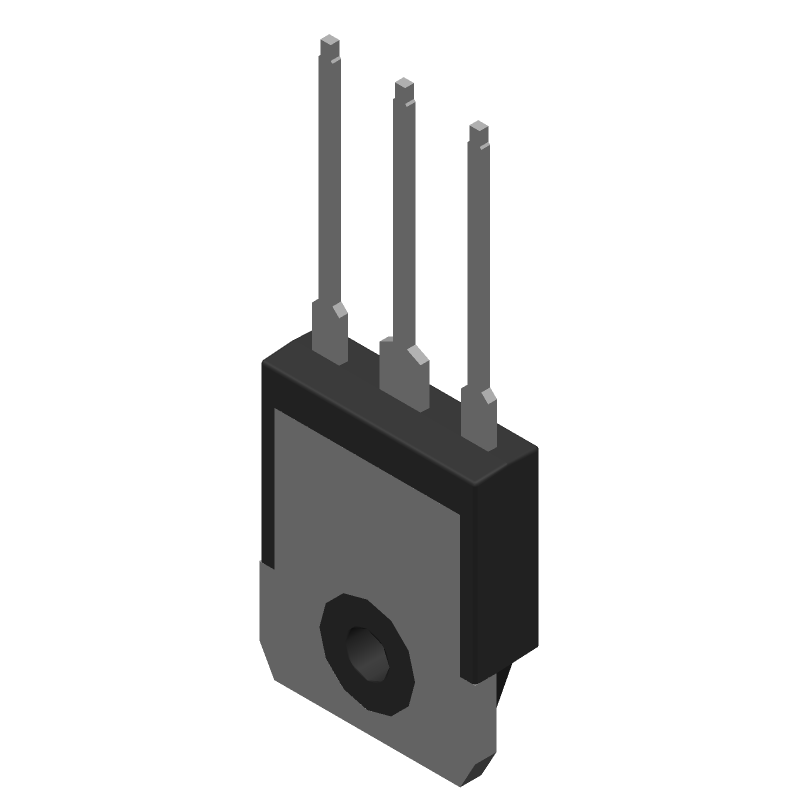

FCA20N60 CAD Models
FCA20N60 Part Data Attributes
|
|
FCA20N60
onsemi
Buy Now
Datasheet
|
Compare Parts:
FCA20N60
onsemi
Power MOSFET, N-Channel, SUPERFET®, Easy Drive, 600 V, 20 A, 190 mΩ, TO-3P, TO-3P-3L, 450-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-3P-3L | |
| Package Description | TO-3PN, 3 PIN | |
| Manufacturer Package Code | 340BZ | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 690 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 600 V | |
| Drain Current-Max (ID) | 20 A | |
| Drain-source On Resistance-Max | 0.19 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 60 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
FCA20N60 Frequently Asked Questions (FAQ)
-
The maximum junction temperature of the FCA20N60 is 150°C, but it's recommended to keep it below 125°C for reliable operation.
-
Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
-
The recommended gate drive voltage for the FCA20N60 is between 10V and 15V, with a maximum of 20V.
-
Yes, the FCA20N60 is suitable for high-frequency switching applications up to 100 kHz, but be aware of the increased switching losses and ensure proper cooling.
-
Use a voltage clamp or a transient voltage suppressor (TVS) to protect against overvoltage, and a current sense resistor or a fuse to protect against overcurrent.
