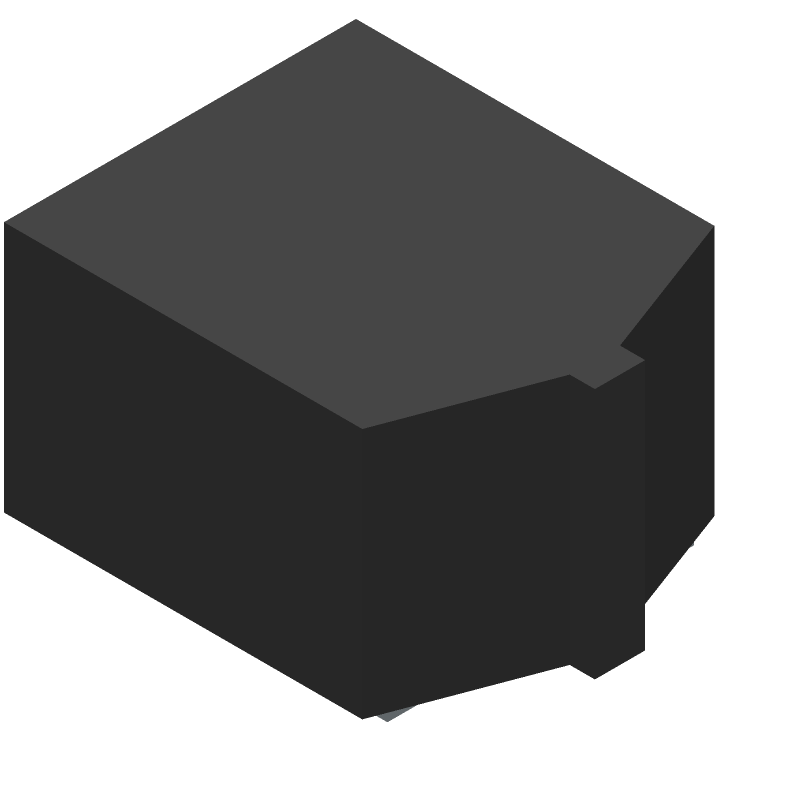

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for F951C476MBAAQ2 by Kyocera AVX Components
Results Overview of F951C476MBAAQ2 by Kyocera AVX Components
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
F951C476MBAAQ2 Information
F951C476MBAAQ2 by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for F951C476MBAAQ2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AC2293
|
Newark | Cap, 47Μf, 16V, 20%, Capacitance:47Μf, Voltage Rating:16V, Tantalum Capacitor Case:1411 [3528 Metric], Product Range:F95 Series, Capacitance Tolerance:± 20%, Operating Temperature Min:-55°C, Operating Temperature Max:125°C, Rohs Compliant: Yes |Kyocera Avx F951C476MBAAQ2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1746 |
|
$0.8770 / $1.5200 | Buy Now |
|
DISTI #
58R4065
|
Newark | Tantalum Capacitor, 47Uf, 16V, 3528-21 20%, Full Reel, Capacitance:47Μf, Voltage(Dc):16V, Capacitor Case/Package:1411 [3528 Metric], Capacitance Tolerance:± 20%, Esr:0.6Ohm, Manufacturer Size Code:A, Failure Rate:-, Qualification:-Rohs Compliant: Yes |Kyocera Avx F951C476MBAAQ2 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5360 / $0.5810 | Buy Now |
|
DISTI #
478-8478-1-ND
|
DigiKey | CAP TANT 47UF 20% 16V 1411 Min Qty: 1 Lead time: 37 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
28724 In Stock |
|
$0.4801 / $1.4500 | Buy Now |
|
DISTI #
F951C476MBAAQ2
|
Avnet Americas | Surface Mount Tantalum Capacitor, 47 ?F, 16 V, 1411 [3528 Metric], ? 20%, 0.6 ohm, B - Tape and Reel (Alt: F951C476MBAAQ2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 37 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
647-F951C476MBAAQ2
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 47uF 16V 20% 1411 3. 5x2.8x1.8mm RoHS: Compliant | 5807 |
|
$0.4800 / $1.4500 | Buy Now |
|
DISTI #
73983799
|
RS | Tantalum - NTP Conformal,47 uF,16 V Min Qty: 2000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$1.3200 | RFQ |
|
|
Bristol Electronics | 16654 |
|
RFQ | ||
|
DISTI #
F951C476MBAAQ2
|
TTI | Tantalum Capacitors - Solid SMD 47uF 16V 20% 1411 3. 5x2.8x1.8mm RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 16000 In Stock |
|
$0.4750 / $0.5330 | Buy Now |
|
DISTI #
F951C476MBAAQ2
|
TME | Capacitor: tantalum, 47uF, 16VDC, SMD, B, 1210, ±20%, -55÷125°C Min Qty: 2000 | 0 |
|
$0.9600 | RFQ |
|
DISTI #
F951C476MBAAQ2
|
Avnet Abacus | Surface Mount Tantalum Capacitor 47 F 16 V 1411 3528 Metric 20 06 ohm B (Alt: F951C476MBAAQ2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 38 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for F951C476MBAAQ2
F951C476MBAAQ2 CAD Models
F951C476MBAAQ2 Part Data Attributes
|
|
F951C476MBAAQ2
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
F951C476MBAAQ2
Kyocera AVX Components
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | STANDARD CONFORMAL COATED CHIP CAPACITOR | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Factory Lead Time | 37 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
| Capacitance | 47 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 600 mΩ | |
| Height | 1.8 mm | |
| JESD-609 Code | e2 | |
| Leakage Current | 0.0075 mA | |
| Length | 3.5 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 16 V | |
| Ripple Current | 151 mA | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Tan Delta | 0.1 | |
| Terminal Finish | TIN COPPER | |
| Terminal Shape | WRAPAROUND | |
| Width | 2.8 mm |
F951C476MBAAQ2 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the F951C476MBAAQ2 is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the F951C476MBAAQ2 is a high-frequency capacitor with a self-resonant frequency of 1.2 GHz, making it suitable for high-frequency applications.
-
The maximum operating voltage derating for the F951C476MBAAQ2 is 80% of the rated voltage, which is 4.76V for this capacitor.
-
Yes, the F951C476MBAAQ2 is AEC-Q200 qualified, making it suitable for use in automotive applications.
-
The MSL of the F951C476MBAAQ2 is 3, which means it can withstand exposure to moisture for up to 168 hours.
