Capacitors / Tantalum Capacitors / F930J107MAA
Datasheets
F930J107MAA by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT

Part Details for F930J107MAA by Kyocera AVX Components

Results Overview of F930J107MAA by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

F930J107MAA Information

F930J107MAA by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for F930J107MAA

Part # Distributor Description Stock Price Buy
DISTI # 478-8155-1-ND
DigiKey CAP TANT 100UF 20% 6.3V 1206 Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1013
In Stock
  • 1 $0.5800
  • 10 $0.3590
  • 50 $0.2708
  • 100 $0.2439
  • 500 $0.1984
  • 1,000 $0.1844
  • 2,000 $0.1763
  • 4,000 $0.1666
  • 6,000 $0.1617
  • 10,000 $0.1563
  • 14,000 $0.1532
  • 20,000 $0.1502
  • 50,000 $0.1436
$0.1436 / $0.5800 Buy Now
DISTI # 82AC9099
Avnet Americas Surface Mount Tantalum Capacitor, 100 ?F, 6.3 V, 1206 [3216 Metric], ? 20%, 2 ohm, A - Product that comes on tape, but is not reeled (Alt: 82AC9099) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Ammo Pack 418 Partner Stock
  • 1 $0.8220
  • 10 $0.3650
  • 25 $0.3520
  • 50 $0.3380
  • 100 $0.3320
$0.3320 / $0.8220 Buy Now
DISTI # F930J107MAA
Avnet Americas Surface Mount Tantalum Capacitor, 100 ?F, 6.3 V, 1206 [3216 Metric], ? 20%, 2 ohm, A - Tape and Reel (Alt: F930J107MAA) RoHS: Compliant Min Qty: 18000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Container: Reel 4000 Factory Stock
  • 18,000 $0.1019
  • 22,000 $0.1014
  • 40,000 $0.1009
  • 90,000 $0.1004
  • 180,000 $0.0998
$0.0998 / $0.1019 Buy Now
DISTI # 647-F930J107MAA
Mouser Electronics Tantalum Capacitors - Solid SMD 6.3V 100uF 1206 ESR= 2Ohms 20% RoHS: Compliant 11445
  • 1 $0.5800
  • 10 $0.2760
  • 100 $0.2490
  • 500 $0.2180
$0.2180 / $0.5800 Buy Now
DISTI # V36:1790_07467192
Arrow Electronics Cap Tant Solid 100uF 6.3V A CASE 20% (3.2 X 1.6 X 1.6mm) Inward L SMD 3216-18 2 Ohm 125°C T/R RoHS: Compliant Min Qty: 18000 Package Multiple: 18000 Lead time: 15 Weeks Date Code: 2351 Americas - 20000
  • 18,000 $0.1502
  • 36,000 $0.1281
  • 54,000 $0.1268
  • 72,000 $0.1255
  • 90,000 $0.1243
  • 450,000 $0.1230
$0.1230 / $0.1502 Buy Now
DISTI # V72:2272_07467192
Arrow Electronics Cap Tant Solid 100uF 6.3V A CASE 20% (3.2 X 1.6 X 1.6mm) Inward L SMD 3216-18 2 Ohm 125°C T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2220 Container: Cut Strips Americas - 10
  • 10 $0.1539
$0.1539 Buy Now
DISTI # 73978857
RS Tantalum - NTP Conformal100 uF,6.3 V Min Qty: 2000 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.3630
  • 20,000 $0.3450
  • 100,000 $0.3270
  • 200,000 $0.3090
$0.3090 / $0.3630 RFQ
Bristol Electronics   1612
RFQ
Quest Components TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 20% +TOL, 20% -TOL, 100UF, SURFACE MOUNT, 1206 1504
  • 1 $1.3600
  • 295 $0.5440
  • 1,472 $0.4760
$0.4760 / $1.3600 Buy Now
DISTI # F930J107MAA
TTI Tantalum Capacitors - Solid SMD 6.3V 100uF 1206 ESR= 2Ohms 20% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 296000
In Stock
  • 2,000 $0.1760
  • 4,000 $0.1670
  • 6,000 $0.1620
  • 10,000 $0.1560
  • 20,000 $0.1500
  • 50,000 $0.1440
$0.1440 / $0.1760 Buy Now
DISTI # F930J107MAA
TME Capacitor: tantalum, 100uF, 6.3VDC, SMD, A, 1206, ±20%, -55÷125°C Min Qty: 1 1990
  • 1 $0.1940
  • 10 $0.1670
$0.1670 / $0.1940 Buy Now
DISTI # F930J107MAA
IBS Electronics CAP TANT SOLID 100UF 6.3V A CASE 20%( 3.2 X 1.6 X 1.6MM) INWARD L SMD 3216-18 2 OHM 125C T/R Min Qty: 2000 Package Multiple: 1 56000
  • 2,000 $0.1677
  • 4,000 $0.1664
  • 6,000 $0.1651
  • 8,000 $0.1638
  • 10,000 $0.1612
$0.1612 / $0.1677 Buy Now
DISTI # F930J107MAA
Avnet Abacus Surface Mount Tantalum Capacitor 100 F 63 V 1206 3216 Metric 20 2 ohm A (Alt: F930J107MAA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # F930J107MAA
Avnet Asia Surface Mount Tantalum Capacitor, 100 ?F, 6.3 V, 1206 [3216 Metric], ? 20%, 2 ohm, A (Alt: F930J107MAA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days 0
RFQ

Part Details for F930J107MAA

F930J107MAA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

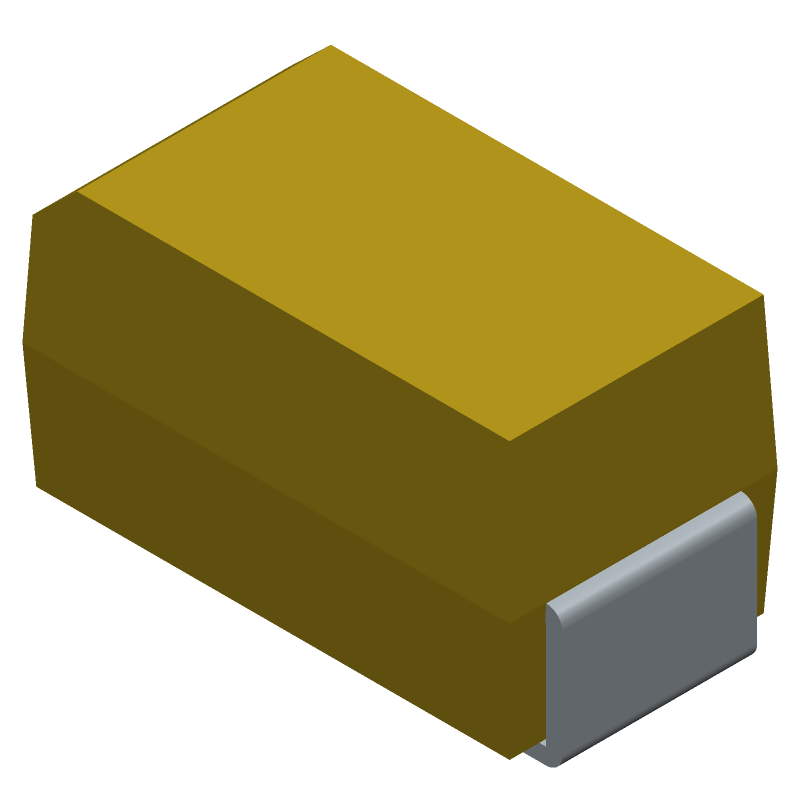

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

F930J107MAA Part Data Attributes

Parametric Data
F930J107MAA Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
F930J107MAA Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 15 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 100 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 2000 mΩ
Height 1.6 mm
Leakage Current 0.0063 mA
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 6.3 V
Ripple Current 77 mA
Size Code 1206
Surface Mount YES
Tan Delta 0.35
Terminal Shape J BEND
Width 1.6 mm

Alternate Parts for F930J107MAA

This table gives cross-reference parts and alternative options found for F930J107MAA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of F930J107MAA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TMCMA0J107MTRF Vishay Intertechnologies $0.2095 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, 1206, F930J107MAA vs TMCMA0J107MTRF
TLJA107M006R0800 Kyocera AVX Components $0.7312 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1206, CHIP F930J107MAA vs TLJA107M006R0800
TACA107M006XTA Kyocera AVX Components $1.9653 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT F930J107MAA vs TACA107M006XTA
TACA107M006ATA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT F930J107MAA vs TACA107M006ATA

F930J107MAA Related Parts

F930J107MAA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the F930J107MAA is 260°C (500°F) for a maximum of 10 seconds.

  • Yes, the F930J107MAA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.

  • The maximum operating voltage derating for the F930J107MAA is 80% of the rated voltage, which is 80% of 100V = 80V.

  • Yes, the F930J107MAA capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.

  • The F930J107MAA capacitor is designed to withstand moisture and humidity, with a moisture sensitivity level (MSL) of 3, which means it can withstand up to 30°C and 60% relative humidity.
