F32R-1A7H1-11026 Information
F32R-1A7H1-11026 by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| F32R-1A7H1-11026 | Amphenol Communications Solutions | Flex Connector, 0.50mm Pitch, Height 2.00mm, Right angle, Slider type, ZIF, Bottom contact, 26 position , Without MYLAR | |
| F32R-1A7A1-11026 | Amphenol Communications Solutions | Flex Connector, 0.50mm Pitch, Height 2.00mm, Right angle, Slider type, ZIF, Bottom contact, 26 position | |
| F32R-1A7H1-11004 | Amphenol Communications Solutions | Flex Connector, 0.50mm Pitch, Height 2.00mm, Right angle, Slider type, ZIF, Bottom contact, 4 position , Without MYLAR |
Price & Stock for F32R-1A7H1-11026
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83AH4353
|
Newark | Conn, R/A, Ffc/Fpc, 26Pos, 1Row, 0.5Mm Rohs Compliant: Yes |Amphenol Communications Solutions F32R-1A7H1-11026 RoHS: Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Reel | 7200 |
|
$0.3740 / $0.4300 | Buy Now |
|
DISTI #
82AH7179
|
Newark | Conn, R/A, Ffc/Fpc, 26Pos, 1Row, 0.5Mm Rohs Compliant: Yes |Amphenol Communications Solutions F32R-1A7H1-11026 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2498 |
|
$0.5110 / $0.9500 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.3499 / $0.4112 | Buy Now |
Part Details for F32R-1A7H1-11026

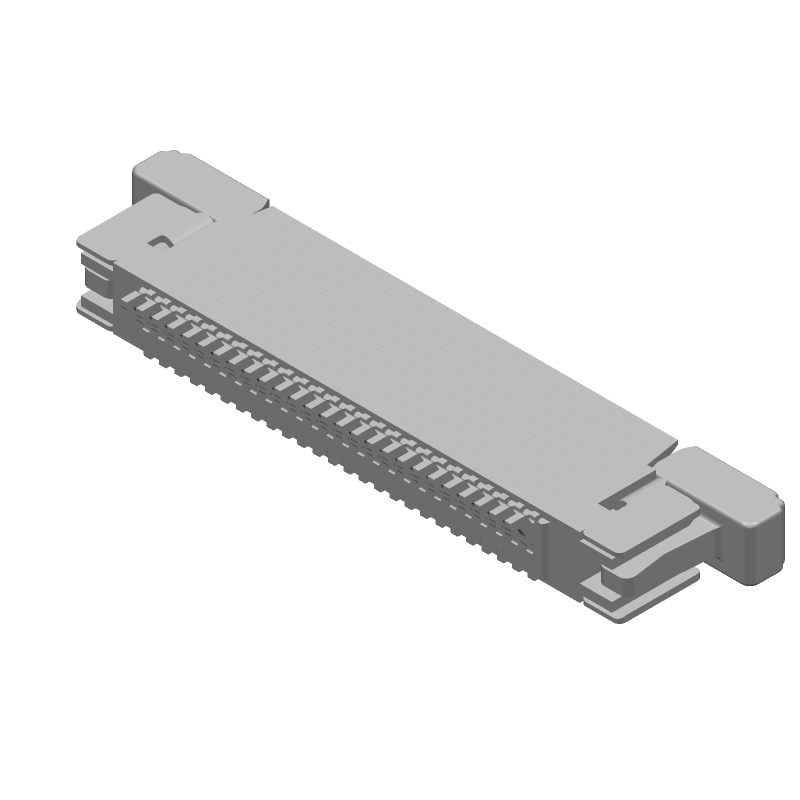

F32R-1A7H1-11026 CAD Models
F32R-1A7H1-11026 Part Data Attributes
|
|
F32R-1A7H1-11026
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
F32R-1A7H1-11026
Amphenol Communications Solutions
Flex Connector, 0.50mm Pitch, Height 2.00mm, Right angle, Slider type, ZIF, Bottom contact, 26 position , Without MYLAR
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 26 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.079 inch | |
| Body Depth | 0.217 inch | |
| Body Length | 0.799 inch | |
| Connector Type | FFC/FPC CONNECTOR | |
| Contact Gender | FEMALE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | BELLOWED TYPE | |
| Filter Feature | NO | |
| Insertion Force-Max | ZIF N | |
| Insulator Color | NATURAL | |
| Insulator Material | GLASS FILLED LIQUID CRYSTAL POLYMER | |
| Mating Contact Pitch | 0.020 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 1.97u inch | |
| Reference Standard | UL | |
| Terminal Pitch | 0.5 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 26 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | ZIF N |
