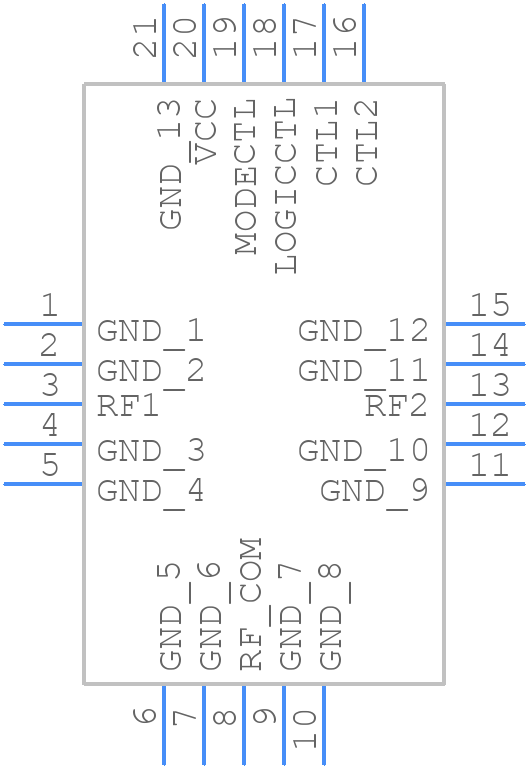

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for F2912NCGI8 by Renesas Electronics Corporation
Results Overview of F2912NCGI8 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
F2912NCGI8 Information
F2912NCGI8 by Renesas Electronics Corporation is an RF/Microwave Switch.
RF/Microwave Switches are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for F2912NCGI8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42AH1782
|
Newark | Rf Switch, 9Khz To 9Ghz, 2.7V, Tqfn-20, Frequency Min:9Khz, Frequency Max:9Ghz, Rf Ic Case Style:Tqfn, No. Of Pins:20Pins, Supply Voltage Min:3.6V, Supply Voltage Max:2.7V, Operating Temperature Min:-55°C, Product Range:- Rohs Compliant: Yes |Renesas F2912NCGI8 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1 |
|
$2.3900 / $3.6200 | Buy Now |
|
DISTI #
972-F2912NCGI8
|
Mouser Electronics | RF Switch ICs High Reliability ISO Sgl-Pole DBL Thrw RF RoHS: Compliant | 0 |
|
$2.0600 / $3.6200 | Order Now |
|
DISTI #
F2912NCGI8
|
Avnet Silica | RF Switch Absorptive SPDT 9 kHz to 9 GHz 20 Pins VFQFPNEP (Alt: F2912NCGI8) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
F2912NCGI8
|
EBV Elektronik | RF Switch Absorptive SPDT 9 kHz to 9 GHz 20 Pins VFQFPNEP (Alt: F2912NCGI8) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for F2912NCGI8
F2912NCGI8 CAD Models
F2912NCGI8 Part Data Attributes
|
|
F2912NCGI8
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
F2912NCGI8
Renesas Electronics Corporation
High Reliability SPDT RF Switch, VFQFPN0/Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | VFQFPN | |
| Pin Count | 20 | |
| Manufacturer Package Code | NCG20P1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | NLR | |
| HTS Code | 8542390001 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| 1dB Compression Point | 30 dBm | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Insertion Loss-Max | 1.4 dB | |
| Isolation-Min | 23 dB | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| On Time-Nom | 1.1 µs | |
| Operating Frequency-Max | 9000 MHz | |
| Operating Frequency-Min | 0.009 MHz | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | LCC20,.16SQ,20 | |
| Port Termination | ABSORPTIVE | |
| Power Supplies | 3.3 V | |
| RF/Microwave Device Type | SPDT | |
| Supply Current-Max | 0.153 mA | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| VSWR-Max | 1.09 |
