F20J1K5E Information
F20J1K5E by Ohmite Mfg Co is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for F20J1K5E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64K4467
|
Newark | 20W 1500 Ohms Vit 5%/ Box Rohs Compliant: Yes |Ohmite F20J1K5E RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
2485-F20J1K5E-ND
|
DigiKey | RES CHAS MNT 1.5K OHM 5% 20W Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT | Temporarily Out of Stock |
|
Buy Now | |
|
DISTI #
F20J1K5E-ND
|
DigiKey | 20W 1500 OHMS VIT 5% Min Qty: 50 Lead time: 8 Weeks Container: Box | Temporarily Out of Stock |
|
$9.3602 | Buy Now |
|
DISTI #
588-F20J1K5E
|
Mouser Electronics | Wirewound Resistors - Chassis Mount 20watt 1.5K 5% Stackohm RoHS: Compliant | 0 |
|
$9.3600 / $19.4500 | Order Now |
|
DISTI #
70584317
|
RS | RES CHAS MNT 1.5K OHM 5% 20W Min Qty: 50 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$12.2200 / $13.6100 | RFQ |
|
|
Onlinecomponents.com | Res Wirewound 1.5K Ohm 5% 20W ±260ppm/°C Vitreous Enamel RDL Lug Bolt-On RoHS: Compliant |
60 In Stock |
|
$9.0500 / $10.9700 | Buy Now |
|
DISTI #
62994590
|
Verical | Res Wirewound 1.5K Ohm 5% 20W ±260ppm/°C Vitreous Enamel RDL Lug Bolt-On RoHS: Compliant Min Qty: 10 Package Multiple: 10 Date Code: 2232 | Americas - 60 |
|
$12.2460 / $14.2610 | Buy Now |
|
DISTI #
F20J1K5E
|
IBS Electronics | RES WIREWOUND 1.5K OHM 5% 20W ±, 260PPM/C VITREOUS ENAMEL RDL LUG BOLT-ON Min Qty: 10 Package Multiple: 1 | 60 |
|
$11.7650 / $14.2610 | Buy Now |
|
|
Master Electronics | Res Wirewound 1.5K Ohm 5% 20W ±260ppm/°C Vitreous Enamel RDL Lug Bolt-On RoHS: Compliant |
60 In Stock |
|
$9.0500 / $10.9700 | Buy Now |
Part Details for F20J1K5E

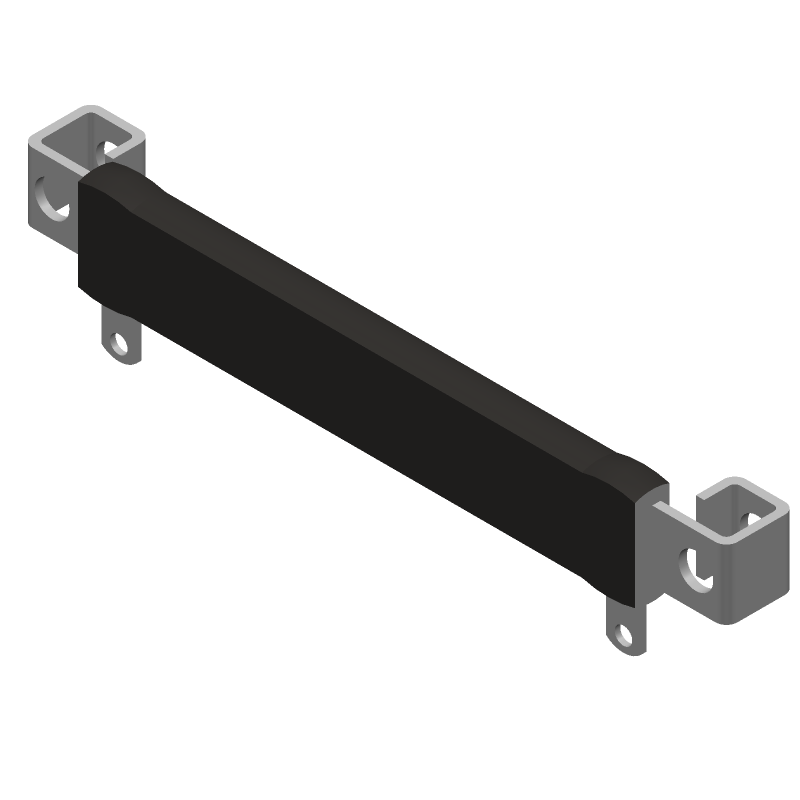

F20J1K5E CAD Models
F20J1K5E Part Data Attributes
|
|
F20J1K5E
Ohmite Mfg Co
Buy Now
Datasheet
|
Compare Parts:
F20J1K5E
Ohmite Mfg Co
Fixed Resistor, Wire Wound, 20W, 1500ohm, 815V, 5% +/-Tol, 260ppm/Cel, Chassis Mount, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OHMITE MANUFACTURING CO | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Samacsys Manufacturer | Ohmite | |
| Construction | All-Welded | |
| JESD-609 Code | e1 | |
| Mounting Feature | CHASSIS MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 350 °C | |
| Operating Temperature-Min | 25 °C | |
| Package Diameter | 9.525 mm | |
| Package Length | 50.8 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Chassis Mount | |
| Rated Power Dissipation (P) | 20 W | |
| Rated Temperature | 25 °C | |
| Resistance | 1500 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 260 ppm/°C | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Shape | LUG | |
| Tolerance | 5% | |
| Working Voltage | 815 V |
