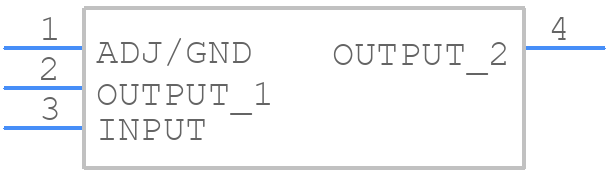

Part Symbol
-

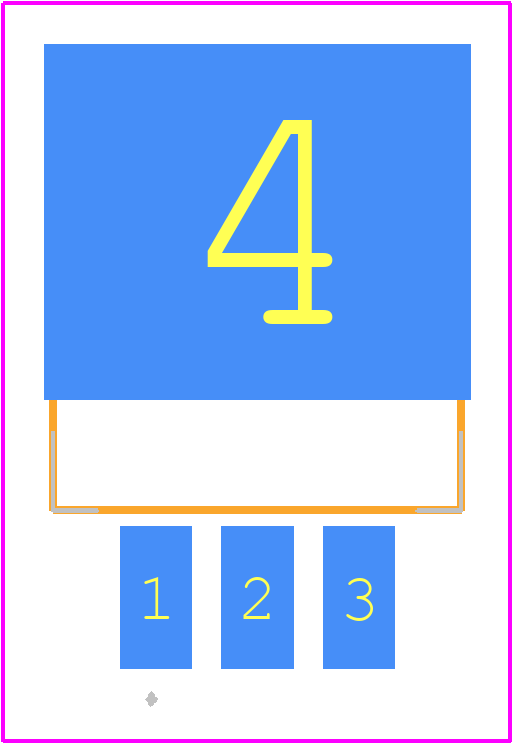

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EZ1085CMTRT by Semtech Corporation
Results Overview of EZ1085CMTRT by Semtech Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EZ1085CMTRT Information
EZ1085CMTRT by Semtech Corporation is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for EZ1085CMTRT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 790 |
|
RFQ | ||
|
|
Quest Components | 1.3 V-5.7 V ADJUSTABLE POSITIVE LDO REGULATOR, 1.35 V DROPOUT, PSSO3 | 632 |
|
$1.5000 / $4.0000 | Buy Now |
Part Details for EZ1085CMTRT
EZ1085CMTRT CAD Models
EZ1085CMTRT Part Data Attributes
|
|
EZ1085CMTRT
Semtech Corporation
Buy Now
Datasheet
|
Compare Parts:
EZ1085CMTRT
Semtech Corporation
Adjustable Positive LDO Regulator, 1.3V Min, 5.7V Max, 1.35V Dropout, BIPolar, PSSO3, ROHS COMPLIANT, TO-263, 3 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | SEMTECH CORP | |
| Part Package Code | D2PAK | |
| Package Description | ROHS COMPLIANT, TO-263, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | SEMTECH | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 1.35 V | |
| Dropout Voltage1-Nom | 1.2 V | |
| JESD-30 Code | R-PSSO-G3 | |
| JESD-609 Code | e0 | |
| Length | 10.16 mm | |
| Line Regulation-Max (%/V) | 0.047 | |
| Load Regulation-Max(%) | 0.4% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 3 A | |
| Output Voltage1-Max | 5.7 V | |
| Output Voltage1-Min | 1.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP3H,.55TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 5.08 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Width | 8.965 mm |
Alternate Parts for EZ1085CMTRT
This table gives cross-reference parts and alternative options found for EZ1085CMTRT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EZ1085CMTRT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| EZ1085CM.TR | Semtech Corporation | Check for Price | Adjustable Positive LDO Regulator, 1.3V Min, 5.7V Max, 1.35V Dropout, BIPolar, PSSO3, TO-263, 3 PIN | EZ1085CMTRT vs EZ1085CM.TR |
EZ1085CMTRT Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
-
Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Also, ensure the input voltage is within the recommended range and the device is operated within the specified temperature range.
-
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V to ensure reliable operation and prevent damage to the device.
-
While the device is rated for operation up to 125°C, it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating. A heat sink or thermal pad may be necessary for high-temperature applications.
-
Check the PCB layout, input voltage, and output capacitor values. Ensure the device is operated within the specified frequency range and the output is not overloaded. Also, verify that the input and output pins are not swapped.
