Capacitors / Aluminum Electrolytic Capacitors / ESY337M016AG3AA
Datasheets
ESY337M016AG3AA by:
KEMET Corporation

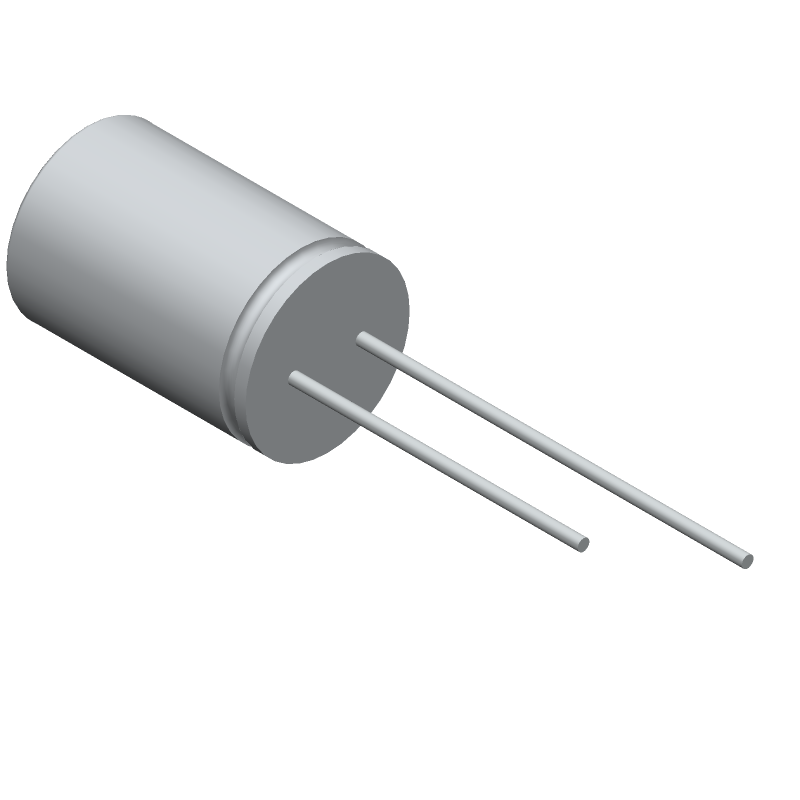

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED

Part Details for ESY337M016AG3AA by KEMET Corporation

Results Overview of ESY337M016AG3AA by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Telecommunications Renewable Energy

ESY337M016AG3AA Information

ESY337M016AG3AA by KEMET Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ESY337M016AG3AA

Part # Distributor Description Stock Price Buy
DISTI # 87AC8470
Newark 330 U 16V |Kemet ESY337M016AG3AA RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $0.1130
$0.1130 Buy Now
DISTI # 399-ESY337M016AG3AA-ND
DigiKey CAP ALUM 330UF 20% 16V RADIAL TH Min Qty: 6000 Lead time: 26 Weeks Container: Bulk Temporarily Out of Stock
  • 6,000 $0.1252
$0.1252 Buy Now
DISTI # 80-ESY337M016AG3AA
Mouser Electronics Aluminum Electrolytic Capacitors - Radial Leaded 16V 330uF 105C 3k Hour Radial RoHS: Compliant 0
  • 1 $0.5600
  • 10 $0.3710
  • 100 $0.2230
  • 500 $0.1800
  • 1,000 $0.1660
  • 2,500 $0.1340
  • 12,000 $0.1290
$0.1290 / $0.5600 Order Now
DISTI # ESY337M016AG3AA
Avnet Abacus Aluminum Electrolytic Capacitor 330 uF 16 V 20 3000 hours 105C Radial Leaded (Alt: ESY337M016AG3AA) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 25 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for ESY337M016AG3AA

ESY337M016AG3AA Part Data Attributes

Parametric Data
ESY337M016AG3AA KEMET Corporation
Buy Now Datasheet
Compare Parts:
ESY337M016AG3AA KEMET Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description ,
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Samacsys Manufacturer KEMET
Capacitance 330 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 8 mm
Dielectric Material ALUMINUM (WET)
Leakage Current 0.0528 mA
Length 11 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method BULK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 532 mA
Surface Mount NO
Tan Delta 0.16
Terminal Pitch 3.5 mm
Terminal Shape WIRE

Alternate Parts for ESY337M016AG3AA

This table gives cross-reference parts and alternative options found for ESY337M016AG3AA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESY337M016AG3AA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
8331LCM0811LLN011P Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF, ESY337M016AG3AA vs 8331LCM0811LLN011P
GRZ330M016-0811 Gemmy Electronics Co Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF ESY337M016AG3AA vs GRZ330M016-0811
SY016M0330A3F-0811 YAGEO Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT ESY337M016AG3AA vs SY016M0330A3F-0811
SH016M0330F5F10811 YAGEO Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF, ESY337M016AG3AA vs SH016M0330F5F10811
2331LCM0811LLN111J Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF, ESY337M016AG3AA vs 2331LCM0811LLN111J
GSZ330M016-0811 Gemmy Electronics Co Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF ESY337M016AG3AA vs GSZ330M016-0811
2331LCM0811LLN011F Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF, ESY337M016AG3AA vs 2331LCM0811LLN011F
8331LCM0811LLN311B Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF, ESY337M016AG3AA vs 8331LCM0811LLN311B
SL016M0330C3F10811 YAGEO Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF ESY337M016AG3AA vs SL016M0330C3F10811
8331LCM0811LLN211M Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 330uF, ESY337M016AG3AA vs 8331LCM0811LLN211M
