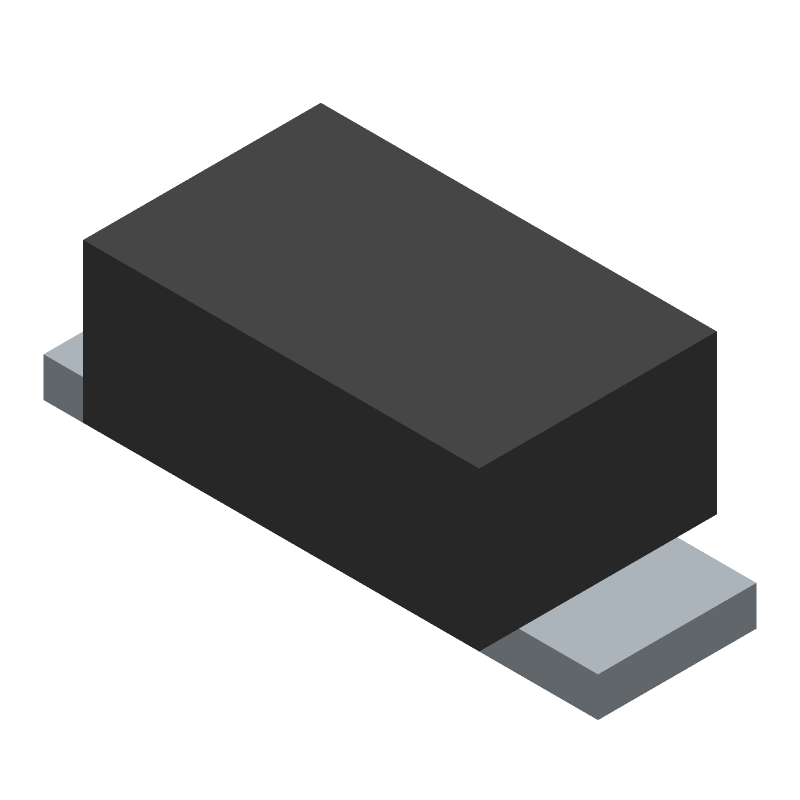

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESDAVLC8-1BT2Y by STMicroelectronics
Results Overview of ESDAVLC8-1BT2Y by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ESDAVLC8-1BT2Y Information
ESDAVLC8-1BT2Y by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESDAVLC8-1BT2Y
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-14545-1-ND
|
DigiKey | TVS DIODE 3VWM SOD882T Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9680 In Stock |
|
$0.0585 / $0.3000 | Buy Now |
|
DISTI #
ESDAVLC8-1BT2Y
|
Avnet Americas | ESD Protection Device, SOD-882T, 2 Pins, 3 V, 5.5 pF - Tape and Reel (Alt: ESDAVLC8-1BT2Y) RoHS: Compliant Min Qty: 24000 Package Multiple: 12000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0578 / $0.0590 | Buy Now |
|
DISTI #
511-ESDAVLC8-1BT2Y
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Auto SGL-line low cap Transil TVS RoHS: Compliant | 10760 |
|
$0.0580 / $0.3000 | Buy Now |
|
DISTI #
E02:0323_07691187
|
Arrow Electronics | ESD Suppressor Diode TVS Bi-Dir 3V Automotive AEC-Q101 2-Pin SOD-882T T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks | Europe - 35449 |
|
$0.0408 / $0.0459 | Buy Now |
|
DISTI #
V72:2272_17706217
|
Arrow Electronics | ESD Suppressor Diode TVS Bi-Dir 3V Automotive AEC-Q101 2-Pin SOD-882T T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks Date Code: 1833 Container: Cut Strips | Americas - 9 |
|
$0.0458 | Buy Now |
|
|
STMicroelectronics | Automotive 3 V TVS in 0402 COO: Philippines RoHS: Compliant Min Qty: 1 | 10760 |
|
$0.0800 / $0.2900 | Buy Now |
|
DISTI #
18818401
|
Verical | ESD Suppressor Diode TVS Bi-Dir 3V Automotive AEC-Q101 2-Pin SOD-882T T/R RoHS: Compliant Min Qty: 139 Package Multiple: 1 | Americas - 35445 |
|
$0.0359 | Buy Now |
|
|
Bristol Electronics | 69 |
|
RFQ | ||
|
|
Quest Components | 55 |
|
$0.2295 / $0.5100 | Buy Now | |
|
DISTI #
ESDAVLC8-1BT2Y
|
TME | Diode: TVS, 30W, 8.5V, 1.3A, bidirectional, SOD882T, ESD Min Qty: 1 | 0 |
|
$0.0646 / $0.2154 | RFQ |
Part Details for ESDAVLC8-1BT2Y
ESDAVLC8-1BT2Y CAD Models
ESDAVLC8-1BT2Y Part Data Attributes
|
|
ESDAVLC8-1BT2Y
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ESDAVLC8-1BT2Y
STMicroelectronics
Automotive 3 V TVS in 0402
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | SOD-882T, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | HIGH RELIABILITY, LOW CAPACITANCE | |
| Breakdown Voltage-Max | 14 V | |
| Breakdown Voltage-Min | 8.5 V | |
| Breakdown Voltage-Nom | 11 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 30 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101, IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 3 V | |
| Reverse Current-Max | 0.05 µA | |
| Reverse Test Voltage | 3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
ESDAVLC8-1BT2Y Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the ESDAVLC8-1BT2Y is -40°C to 125°C.
-
The ESDAVLC8-1BT2Y requires a single 3.3V power supply, and it's recommended to use a decoupling capacitor of 100nF or more to ensure stable operation.
-
The ESDAVLC8-1BT2Y supports data rates up to 3.2 Gbps.
-
The ESDAVLC8-1BT2Y has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device.
-
Yes, the ESDAVLC8-1BT2Y is AEC-Q100 qualified, making it suitable for use in automotive applications.
