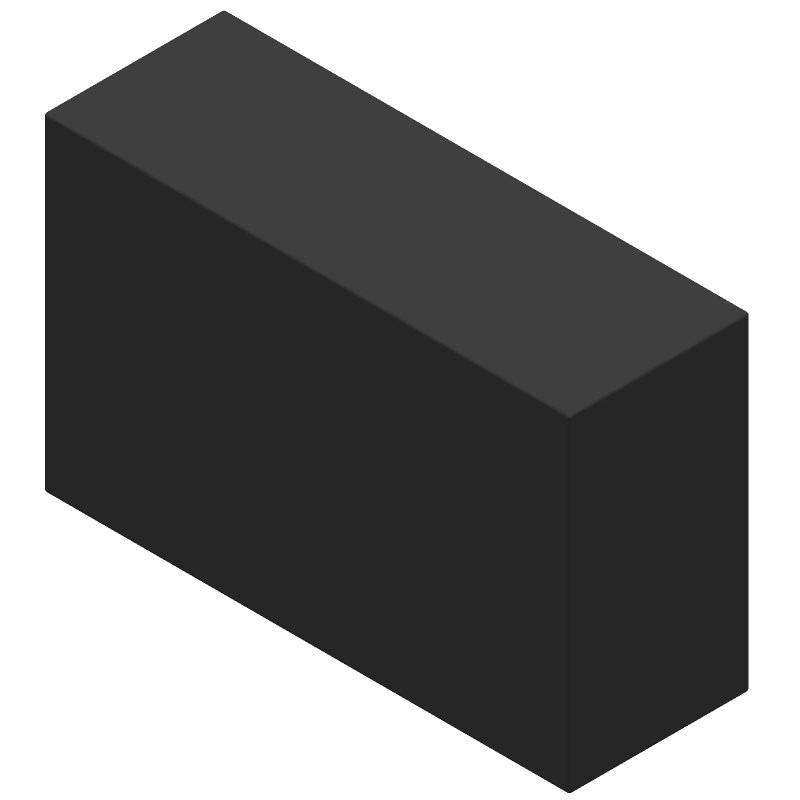

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESDA7P60-1U1M by STMicroelectronics
Results Overview of ESDA7P60-1U1M by STMicroelectronics
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
ESDA7P60-1U1M Information
ESDA7P60-1U1M by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESDA7P60-1U1M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56Y0649
|
Newark | Protection |Stmicroelectronics ESDA7P60-1U1M RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
26AM3241
|
Newark | Protection |Stmicroelectronics ESDA7P60-1U1M RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0650 | Buy Now |
|
DISTI #
497-16253-1-ND
|
DigiKey | TVS DIODE 5VWM 11.6VC 1610 Min Qty: 1 Lead time: 15 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
62534 In Stock |
|
$0.0754 / $0.5000 | Buy Now |
|
DISTI #
ESDA7P60-1U1M
|
Avnet Americas | ESD Protection Device, 11.6 V, QFN, 2 Pins, 5 V, 450 pF, ESDAxxPxxx-1U1M - Tape and Reel (Alt: ESDA7P60-1U1M) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0624 / $0.0637 | Buy Now |
|
DISTI #
511-ESDA7P60-1U1M
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes High-power transient volt suppressor (TVS) RoHS: Compliant | 0 |
|
$0.0780 / $0.4200 | Order Now |
|
DISTI #
V79:2366_28697630
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5V 2-Pin Case 1610 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 15900 |
|
$0.0716 / $0.3444 | Buy Now |
|
DISTI #
E02:0323_09170358
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5V 2-Pin Case 1610 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2515 | Europe - 10959 |
|
$0.0596 / $0.4173 | Buy Now |
|
DISTI #
V36:1790_13795857
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5V 2-Pin Case 1610 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 15 Weeks Date Code: 2443 | Americas - 8000 |
|
$0.0703 / $0.0840 | Buy Now |
|
DISTI #
V72:2272_13795857
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5V 2-Pin Case 1610 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2443 Container: Cut Strips | Americas - 3116 |
|
$0.3478 / $0.3563 | Buy Now |
|
|
STMicroelectronics | 60 A - 8/20 us, 5 V TVS in QFN-2L COO: France RoHS: Compliant Min Qty: 1 | 22258 |
|
$0.1300 / $0.4000 | Buy Now |
Part Details for ESDA7P60-1U1M
ESDA7P60-1U1M CAD Models
ESDA7P60-1U1M Part Data Attributes
|
|
ESDA7P60-1U1M
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ESDA7P60-1U1M
STMicroelectronics
High-power transient voltage suppressor (TVS)
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Max | 7.2 V | |
| Breakdown Voltage-Min | 6.4 V | |
| Breakdown Voltage-Nom | 6.8 V | |
| Clamping Voltage-Max | 11.6 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 700 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Reverse Current-Max | 0.2 µA | |
| Reverse Test Voltage | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
ESDA7P60-1U1M Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the ESDA7P60-1U1M is -40°C to 125°C.
-
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Also, ensure the PCB is designed with a suitable land pattern and thermal relief to prevent overheating.
-
The recommended layout and spacing for the ESDA7P60-1U1M on the PCB is to keep the device at least 1.5 mm away from other components and to use a ground plane underneath the device to reduce electromagnetic interference (EMI).
-
Handle the ESDA7P60-1U1M with anti-static wrist straps, mats, or bags to prevent electrostatic discharge (ESD) damage. Store the devices in their original packaging or in a conductive bag to prevent ESD damage during storage.
-
The recommended power supply decoupling for the ESDA7P60-1U1M is to use a 10 nF to 100 nF ceramic capacitor in parallel with a 1 μF to 10 μF electrolytic capacitor, placed as close as possible to the device.
