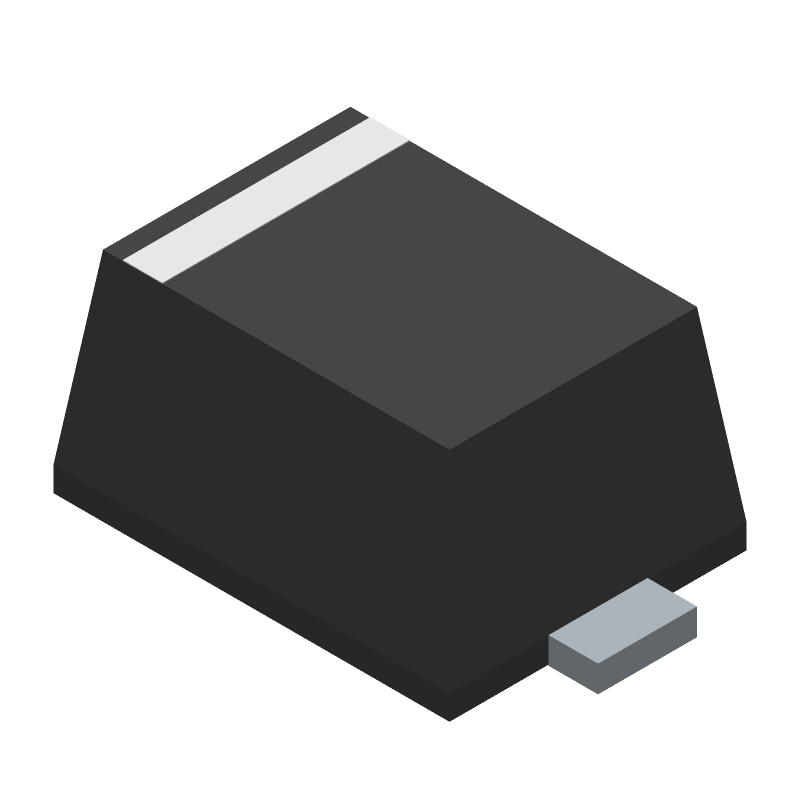

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD9X3.3ST5G by onsemi
Results Overview of ESD9X3.3ST5G by onsemi
- Distributor Offerings: (35 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ESD9X3.3ST5G Information
ESD9X3.3ST5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD9X3.3ST5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96K3041
|
Newark | Tvs Diode, 102W, 3.3V, Sod-923, Clamping Voltage Vc Max:10.4V, Diode Case Style:Sod-923, No. Of Pins:2Pins, Operating Voltage:3.3V, Power Dissipation Pd:150Mw, Product Range:Esd9X Series, Automotive Qualification Standard:Aec-Q101 Rohs Compliant: Yes |Onsemi ESD9X3.3ST5G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7890 |
|
$0.0390 | Buy Now |
|
DISTI #
29X6002
|
Newark | Esd Protection Diode, 10.4V, Sod-923-2, Clamping Voltage Vc Max:10.4V, Diode Case Style:Sod-923, No. Of Pins:2Pins, Operating Voltage:3.3V, Power Dissipation Pd:150Mw, Product Range:Esd9X Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Onsemi ESD9X3.3ST5G RoHS: Compliant Min Qty: 24000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0320 / $0.0390 | Buy Now |
|
DISTI #
ESD9X3.3ST5GOSCT-ND
|
DigiKey | TVS DIODE 3.3VWM 10.4VC SOD923 Min Qty: 1 Lead time: 5 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
101314 In Stock |
|
$0.0275 / $0.1700 | Buy Now |
|
DISTI #
ESD9X3.3ST5G
|
Avnet Americas | ESD Protection Device, 10.4 V, SOD-923, 2 Pins, 3.3 V, 150 mW, AEC-Q101 - Tape and Reel (Alt: ESD9X3.3ST5G) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 5 Weeks, 0 Days Container: Reel | 88000 |
|
$0.0236 / $0.0272 | Buy Now |
|
DISTI #
96K3041
|
Avnet Americas | ESD Protection Device, 10.4 V, SOD-923, 2 Pins, 3.3 V, 150 mW, AEC-Q101 - Product that comes on tape, but is not reeled (Alt: 96K3041) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 1 Days Container: Ammo Pack | 0 |
|
$0.0630 / $0.1790 | Buy Now |
|
DISTI #
863-ESD9X3.3ST5G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SOD-923 ESD PROT RoHS: Compliant | 114275 |
|
$0.0270 / $0.1700 | Buy Now |
|
DISTI #
E02:0323_00047306
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 5 Weeks Date Code: 2507 | Europe - 1312000 |
|
$0.0269 / $0.0273 | Buy Now |
|
DISTI #
V79:2366_19920733
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2209 | Americas - 448990 |
|
$0.0159 / $0.0680 | Buy Now |
|
DISTI #
V36:1790_07310172
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 5 Weeks Date Code: 2423 | Americas - 200000 |
|
$0.0257 / $0.0269 | Buy Now |
|
DISTI #
V72:2272_07310172
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2301 Container: Cut Strips | Americas - 3711 |
|
$0.0687 / $0.0901 | Buy Now |
Part Details for ESD9X3.3ST5G
ESD9X3.3ST5G CAD Models
ESD9X3.3ST5G Part Data Attributes
|
|
ESD9X3.3ST5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD9X3.3ST5G
onsemi
ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-923, 1.0x0.6, 0.43 Max Height | |
| Pin Count | 2 | |
| Manufacturer Package Code | 514AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks, 1 Day | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, PRSM-NOM | |
| Breakdown Voltage-Min | 5 V | |
| Clamping Voltage-Max | 10.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 102 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.15 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Reverse Current-Max | 2.5 µA | |
| Reverse Test Voltage | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
