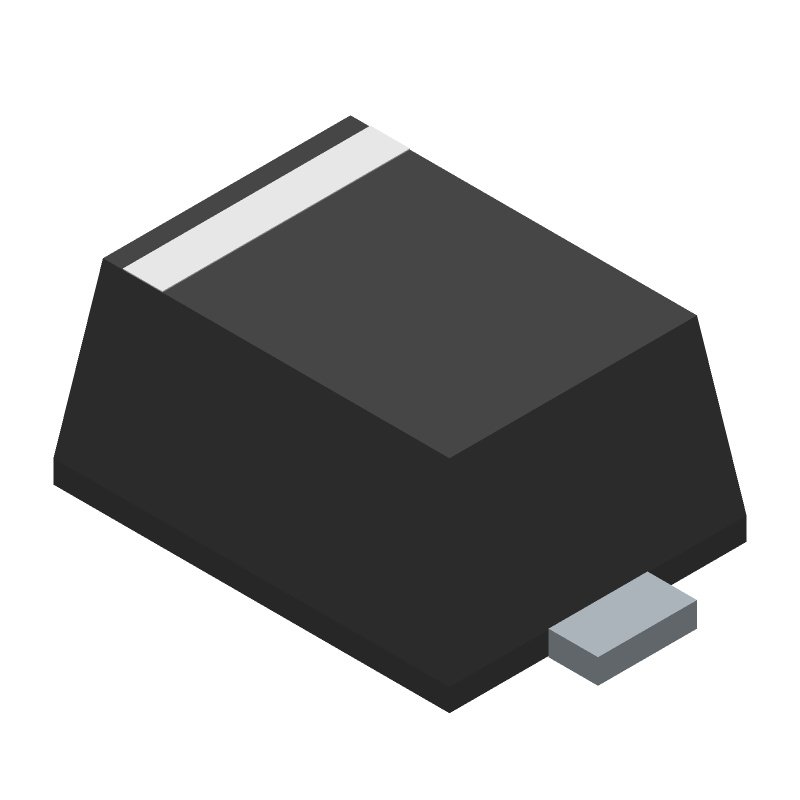

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD9X12ST5G by onsemi
Results Overview of ESD9X12ST5G by onsemi
- Distributor Offerings: (38 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
ESD9X12ST5G Information
ESD9X12ST5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD9X12ST5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02M9630
|
Newark | Tvs Diode, 140W, 12V, Sod-923, Clamping Voltage Vc Max:23.7V, Diode Case Style:Sod-923, No. Of Pins:2Pins, Operating Voltage:12V, Power Dissipation Pd:150Mw, Product Range:Esd9X Series, Automotive Qualification Standard:Aec-Q101 Rohs Compliant: Yes |Onsemi ESD9X12ST5G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 21837 |
|
$0.0340 | Buy Now |
|
DISTI #
02AC3660
|
Newark | Diode, Esd Protection, 12V, Sod-923-2, Clamping Voltage Vc Max:23.7V, Diode Case Style:Sod-923, No. Of Pins:2Pins, Operating Voltage:12V, Power Dissipation Pd:150Mw, Product Range:-, Automotive Qualification Standard:Aec-Q101, Rohs Compliant: Yes |Onsemi ESD9X12ST5G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 251 |
|
$0.0230 | Buy Now |
|
DISTI #
29X6001
|
Newark | Esd Protection Diode, 23.7V, Sod-923-2, Clamping Voltage Vc Max:23.7V, Diode Case Style:Sod-923, No. Of Pins:2Pins, Operating Voltage:12V, Power Dissipation Pd:150Mw, Product Range:Esd9X Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Onsemi ESD9X12ST5G RoHS: Compliant Min Qty: 24000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0300 / $0.0360 | Buy Now |
|
DISTI #
ESD9X12ST5GOSCT-ND
|
DigiKey | TVS DIODE 12VWM 23.7VC SOD923 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
88030 In Stock |
|
$0.0232 | Buy Now |
|
DISTI #
ESD9X12ST5G
|
Avnet Americas | ESD Suppressor TVS Single Uni-Dir ?30kV 2-Pin SOD-923 T/R - Tape and Reel (Alt: ESD9X12ST5G) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks, 0 Days Container: Reel | 112000492060 Factory Stock |
|
$0.0214 / $0.0238 | Buy Now |
|
DISTI #
ESD9X12ST5G
|
Avnet Americas | ESD Suppressor TVS Single Uni-Dir ?30kV 2-Pin SOD-923 T/R - Tape and Reel (Alt: ESD9X12ST5G) RoHS: Compliant Min Qty: 29412 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 848000 Partner Stock |
|
$0.0214 / $0.0219 | Buy Now |
|
DISTI #
02M9630
|
Avnet Americas | ESD Suppressor TVS Single Uni-Dir ?30kV 2-Pin SOD-923 T/R - Product that comes on tape, but is not reeled (Alt: 02M9630) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 1 Days Container: Ammo Pack | 14949 Partner Stock |
|
$0.0540 / $0.1480 | Buy Now |
|
DISTI #
02AC3660
|
Avnet Americas | ESD Suppressor TVS Single Uni-Dir ?30kV 2-Pin SOD-923 T/R - Product that comes on tape, but is not reeled (Alt: 02AC3660) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Ammo Pack | 251 Partner Stock |
|
$0.0570 / $0.1550 | Buy Now |
|
DISTI #
863-ESD9X12ST5G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SOD-923 ESD PROT RoHS: Compliant | 30055 |
|
$0.0230 / $0.1400 | Buy Now |
|
DISTI #
E02:0323_00017932
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 12V 23.7Vc 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks Date Code: 2401 | Europe - 8000 |
|
$0.0240 | Buy Now |
Part Details for ESD9X12ST5G
ESD9X12ST5G CAD Models
ESD9X12ST5G Part Data Attributes
|
|
ESD9X12ST5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD9X12ST5G
onsemi
ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-923, 1.0x0.6, 0.43 Max Height | |
| Pin Count | 2 | |
| Manufacturer Package Code | 514AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, PRSM-NOM | |
| Breakdown Voltage-Min | 13.5 V | |
| Clamping Voltage-Max | 23.7 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 140 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.15 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 12 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 12 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for ESD9X12ST5G
This table gives cross-reference parts and alternative options found for ESD9X12ST5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD9X12ST5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESD9M5.0ST5G | onsemi | $0.0740 | Low Capacitance ESD Protection; Unidirectional, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X12ST5G vs ESD9M5.0ST5G |
| ESD9X7.0ST5G | onsemi | $50.1098 | ESD Protection Diode, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X12ST5G vs ESD9X7.0ST5G |
| UESD5.0ST5G | onsemi | Check for Price | ESD Protection Diode, SOD-723 2 LEAD, 8000-REEL | ESD9X12ST5G vs UESD5.0ST5G |
| ESD9X5.0ST5G | onsemi | $0.0282 | ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL | ESD9X12ST5G vs ESD9X5.0ST5G |
| ESD9R3.3ST5G | onsemi | $0.2887 | ESD Protection Diode, Ultra-Low Leakage, Low Capacitance, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X12ST5G vs ESD9R3.3ST5G |
| ESD9X3.3ST5G | onsemi | $0.0430 | ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL | ESD9X12ST5G vs ESD9X3.3ST5G |
| ESD9L3.3ST5G | onsemi | $0.0500 | ESD Protection Diode, Ultra Low Capacitance, Unidirectional, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X12ST5G vs ESD9L3.3ST5G |
ESD9X12ST5G Frequently Asked Questions (FAQ)
-
A good PCB layout for the ESD9X12ST5G involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the connector. A ground plane under the device can also help to reduce noise and improve performance.
-
The recommended capacitor value for the ESD9X12ST5G is 1-10nF. The capacitor value should be chosen based on the specific application requirements, such as the frequency of operation and the desired level of ESD protection.
-
The ESD9X12ST5G has an operating temperature range of -40°C to 150°C. However, the device can be operated at temperatures above 150°C for short periods of time, but this may affect its reliability and lifespan.
-
Yes, the ESD9X12ST5G is suitable for high-speed data lines, such as USB, HDMI, and Ethernet. It has a low capacitance of 0.5pF and a high bandwidth of 3GHz, making it suitable for high-speed applications.
-
To ensure proper soldering of the ESD9X12ST5G, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the device.
