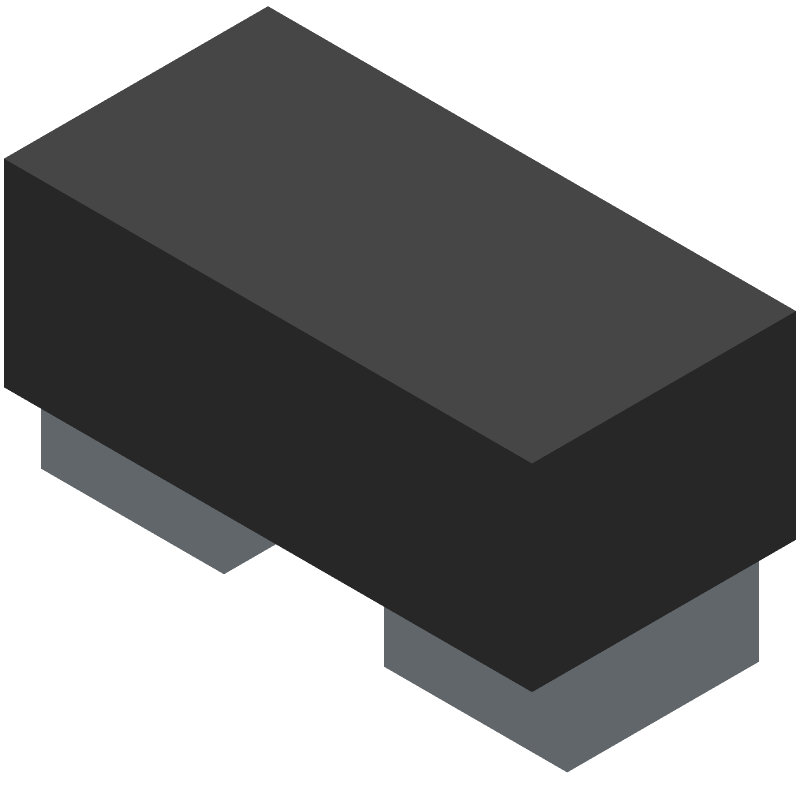

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD8111PFCT5G by onsemi
Results Overview of ESD8111PFCT5G by onsemi
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
ESD8111PFCT5G Information
ESD8111PFCT5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD8111PFCT5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2770606RL
|
Farnell | DIODE, ESD PROTECTION, 3.3V, WLCSP-10 RoHS: Compliant Min Qty: 500 Lead time: 53 Weeks, 2 Days Container: Reel | 9020 |
|
$0.0845 / $0.0885 | Buy Now |
|
DISTI #
2770606
|
Farnell | DIODE, ESD PROTECTION, 3.3V, WLCSP-10 RoHS: Compliant Min Qty: 5 Lead time: 53 Weeks, 2 Days Container: Cut Tape | 9020 |
|
$0.0845 / $0.2075 | Buy Now |
|
DISTI #
ESD8111PFCT5GOSCT-ND
|
DigiKey | TVS DIODE 3.3VWM 8VC 2WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
44422 In Stock |
|
$0.0690 / $0.1600 | Buy Now |
|
DISTI #
ESD8111PFCT5G
|
Avnet Americas | ESD Suppressor TVS Single Bi-Dir 30kV 2-Pin WLCSP T/R - Tape and Reel (Alt: ESD8111PFCT5G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
863-ESD8111PFCT5G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes High Speed Data Line Protection (3.3 V - USB 3.x), (Tx/Rx Pairs), 0.4 pF Isolated DSN package RoHS: Compliant | 15487 |
|
$0.0760 / $0.1600 | Buy Now |
|
|
Onlinecomponents.com | High Speed Data Line Protection (3.3 V – USB 3.x), (Tx/Rx Pairs), 0.4 pF Isolated DSN package RoHS: Compliant | 0 |
|
$0.0661 / $0.0824 | Buy Now |
|
|
Rochester Electronics | High uPeed Data Line Protection (3.3 V USB 3.x), (Tx/Rx Pairs) RoHS: Compliant Status: Active Min Qty: 1 | 5768253 |
|
$0.0580 / $0.0935 | Buy Now |
|
DISTI #
ESD8111PFCT5G
|
Richardson RFPD | TVS RoHS: Compliant Min Qty: 10000 | 0 |
|
$0.0700 | Buy Now |
|
DISTI #
ESD8111PFCT5G
|
Avnet Asia | ESD Suppressor TVS Single Bi-Dir 30kV 2-Pin WLCSP T/R (Alt: ESD8111PFCT5G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | 0 |
|
$0.0655 / $0.0765 | Buy Now |
|
DISTI #
ESD8111PFCT5G
|
Avnet Silica | ESD Suppressor TVS Single BiDir 30kV 2Pin WLCSP TR (Alt: ESD8111PFCT5G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ESD8111PFCT5G
ESD8111PFCT5G CAD Models
ESD8111PFCT5G Part Data Attributes
|
|
ESD8111PFCT5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD8111PFCT5G
onsemi
High Speed Data Line Protection (3.3 V - USB 3.x), (Tx/Rx Pairs), 0.4 pF Isolated DSN package, DFN-2, 10000-DSFTP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DFN-2 | |
| Manufacturer Package Code | 152AX | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LOW CAPACITANCE | |
| Breakdown Voltage-Max | 8.6 V | |
| Breakdown Voltage-Min | 5.5 V | |
| Breakdown Voltage-Nom | 7.9 V | |
| Clamping Voltage-Max | 8 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESD8111PFCT5G
This table gives cross-reference parts and alternative options found for ESD8111PFCT5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD8111PFCT5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESDL1531MX4T5G | onsemi | Check for Price | Ultra Low Capacitance ESD Protection Diode for High Speed Data Line Micro-packaged Diodes for ESD Protection, X4DFN-2, 10000-REEL | ESD8111PFCT5G vs ESDL1531MX4T5G |
ESD8111PFCT5G Frequently Asked Questions (FAQ)
-
A good PCB layout for ESD8111PFCT5G involves placing the device close to the connector or interface, using short traces, and minimizing the distance between the device and the protected circuit. A ground plane under the device can also help to reduce parasitic inductance.
-
The recommended capacitor value for the VCC pin is 1-10uF, depending on the specific application and noise requirements. A larger capacitor value can help to filter out noise, but may increase the device's power-up time.
-
The maximum operating temperature for the ESD8111PFCT5G is 125°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
-
Yes, the ESD8111PFCT5G is suitable for high-speed interfaces like HDMI, USB, and SATA. Its low capacitance and high bandwidth make it an ideal choice for protecting high-speed signals.
-
To ensure proper soldering, follow the recommended reflow soldering profile, and use a solder paste with a melting point below 260°C. Avoid overheating the device, and use a soldering iron with a temperature-controlled tip.
