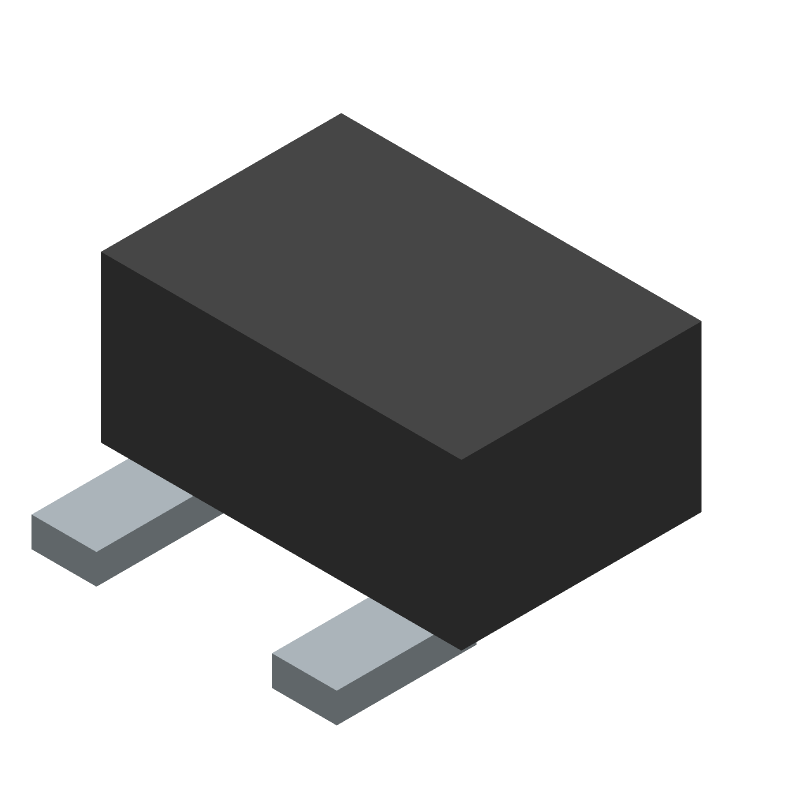

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD7C5.0DT5G by onsemi
Results Overview of ESD7C5.0DT5G by onsemi
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ESD7C5.0DT5G Information
ESD7C5.0DT5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD7C5.0DT5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC0730
|
Newark | Diode, Aec-Q101, Esd Protection, Sot-723, Clamping Voltage Vc Max:-, Diode Case Style:Sot-723, No. Of Pins:3Pins, Operating Voltage:-, Power Dissipation Pd:240Mw, Product Range:Esd7Cxxd Series, Automotive Qualification Rohs Compliant: Yes |Onsemi ESD7C5.0DT5G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 180 |
|
$0.1300 / $0.3670 | Buy Now |
|
DISTI #
ESD7C5.0DT5GOSCT-ND
|
DigiKey | TVS DIODE 5VWM SOT723 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
151302 In Stock |
|
$0.0653 / $0.3300 | Buy Now |
|
DISTI #
ESD7C5.0DT5G
|
Avnet Americas | ESD Suppressor TVS ?15KV 3-Pin SOT-723 T/R - Tape and Reel (Alt: ESD7C5.0DT5G) RoHS: Compliant Min Qty: 16000 Package Multiple: 8000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0607 / $0.0669 | Buy Now |
|
DISTI #
863-ESD7C5.0DT5G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes ESD PROTECT DIODE RoHS: Compliant | 39867 |
|
$0.0650 / $0.3300 | Buy Now |
|
DISTI #
V72:2272_07277250
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2239 Container: Cut Strips | Americas - 4979 |
|
$0.0701 / $0.2784 | Buy Now |
|
|
Onlinecomponents.com | ESD Protection Diode, SOT-723 5.0 V RoHS: Compliant |
24000 In Stock |
|
$0.0615 / $0.0634 | Buy Now |
|
DISTI #
85985906
|
Verical | ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 3394 Package Multiple: 1 Date Code: 0701 | Americas - 491095 |
|
$0.1105 | Buy Now |
|
DISTI #
85981816
|
Verical | ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 3394 Package Multiple: 1 Date Code: 1801 | Americas - 217040 |
|
$0.1105 | Buy Now |
|
DISTI #
85986869
|
Verical | ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 3394 Package Multiple: 1 | Americas - 64000 |
|
$0.1105 | Buy Now |
|
DISTI #
83372471
|
Verical | ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Date Code: 2424 | Americas - 24000 |
|
$0.0807 / $0.0824 | Buy Now |
Part Details for ESD7C5.0DT5G
ESD7C5.0DT5G CAD Models
ESD7C5.0DT5G Part Data Attributes
|
|
ESD7C5.0DT5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD7C5.0DT5G
onsemi
ESD Protection Diode, SOT-723 5.0 V, SOT-723 3 LEAD, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-723 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 631AA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Min | 11 V | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.24 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Test Voltage | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESD7C5.0DT5G
This table gives cross-reference parts and alternative options found for ESD7C5.0DT5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD7C5.0DT5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UESD3.3DT5G | onsemi | $0.0862 | ESD Protection Common Anode Diodes, SOT-723 3 LEAD, 8000-REEL | ESD7C5.0DT5G vs UESD3.3DT5G |
ESD7C5.0DT5G Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal ESD protection involves placing the ESD7C5.0DT5G close to the connector or interface it's protecting, using short traces, and minimizing the distance between the device and the protected circuit.
-
To choose the correct ESD protection device, consider the interface or circuit being protected, the voltage and current requirements, and the level of ESD protection required (e.g., IEC 61000-4-2).
-
The maximum operating temperature for the ESD7C5.0DT5G is 125°C, as specified in the datasheet.
-
Yes, the ESD7C5.0DT5G is a bi-directional ESD protection device, meaning it can protect against both positive and negative voltage surges.
-
The ESD7C5.0DT5G is designed to withstand multiple ESD strikes, and its protection characteristics are maintained even after multiple strikes.
