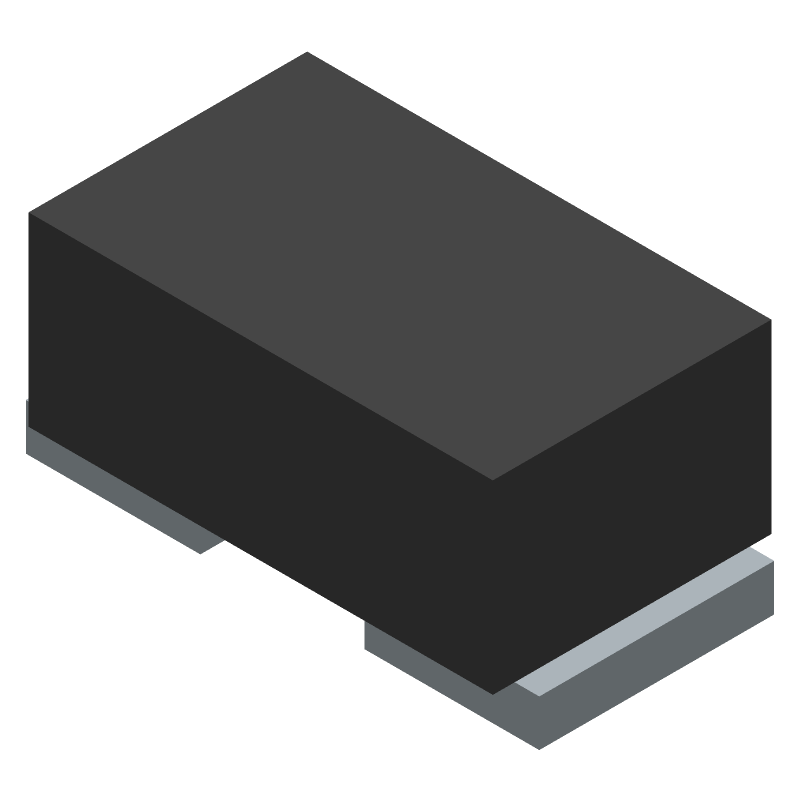

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD7462N2T5G by onsemi
Results Overview of ESD7462N2T5G by onsemi
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ESD7462N2T5G Information
ESD7462N2T5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD7462N2T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-ESD7462N2T5G-488-ND
|
DigiKey | ESD7462N2 - ULTRA-LOW CAPACITANC Min Qty: 2908 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT |
201579 In Stock |
|
$0.1000 | Buy Now |
|
DISTI #
85982227
|
Verical | ESD Suppressor TVS Bi-Dir 16V 2-Pin X2-DFN T/R RoHS: Compliant Min Qty: 3025 Package Multiple: 1 Date Code: 1801 | Americas - 201579 |
|
$0.1240 | Buy Now |
|
|
Rochester Electronics | Ultra-Low Capacitance ESD Protection RoHS: Compliant Status: Obsolete Min Qty: 1 | 201579 |
|
$0.0615 / $0.0992 | Buy Now |
|
|
Cytech Systems Limited | TVS DIODE 2X2DFN | 8000 |
|
RFQ | |
|
DISTI #
ESD7462N2T5G
|
EBV Elektronik | (Alt: ESD7462N2T5G) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 47670 |
|
RFQ |
Part Details for ESD7462N2T5G
ESD7462N2T5G CAD Models
ESD7462N2T5G Part Data Attributes
|
|
ESD7462N2T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD7462N2T5G
onsemi
Ultra-Low Capacitance ESD Protection, X2DFN-2, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | X2DFN-2 | |
| Manufacturer Package Code | 714AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Breakdown Voltage-Max | 28 V | |
| Breakdown Voltage-Min | 16.5 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5 | |
| Rep Pk Reverse Voltage-Max | 16 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESD7462N2T5G
This table gives cross-reference parts and alternative options found for ESD7462N2T5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD7462N2T5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESD7561N2T5G | onsemi | Check for Price | Micro−Packaged Diodes for ESD Protection, X2DFN-2, 8000-REEL, Automotive Qualified | ESD7462N2T5G vs ESD7561N2T5G |
ESD7462N2T5G Frequently Asked Questions (FAQ)
-
A good PCB layout for ESD7462N2T5G involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the connector. A ground plane is also recommended to reduce noise and improve performance.
-
The recommended capacitor value for ESD7462N2T5G is 1nF to 10nF. The capacitor value should be chosen based on the specific application requirements, such as the frequency of operation and the desired level of ESD protection.
-
The maximum operating temperature for ESD7462N2T5G is 125°C. However, it's recommended to operate the device within the specified temperature range of -40°C to 85°C for optimal performance and reliability.
-
Yes, ESD7462N2T5G is suitable for ESD protection in high-speed data lines, such as USB, HDMI, and Ethernet. The device has a low capacitance of 0.5pF, which minimizes signal distortion and ensures high-speed signal integrity.
-
To ensure proper soldering of ESD7462N2T5G, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads and use a reflow oven or a hot air gun to solder the device.
