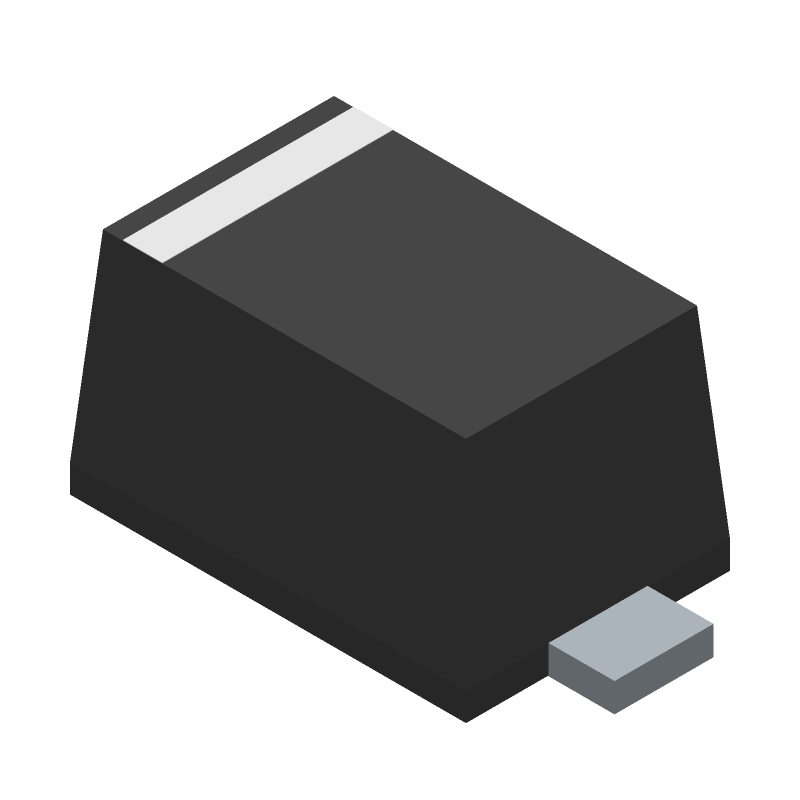

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD5B5.0ST1G by onsemi
Results Overview of ESD5B5.0ST1G by onsemi
- Distributor Offerings: (39 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ESD5B5.0ST1G Information
ESD5B5.0ST1G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD5B5.0ST1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10N9401
|
Newark | Tvs Diode, 50W, 5V, Sod-523, Clamping Voltage Vc Max:-, Diode Case Style:Sod-523, No. Of Pins:2Pins, Operating Voltage:5V, Power Dissipation Pd:200Mw, Product Range:Esd5B Series, Automotive Qualification Standard:Aec-Q101 Rohs Compliant: Yes |Onsemi ESD5B5.0ST1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 14071 |
|
$0.0350 / $0.0380 | Buy Now |
|
DISTI #
27M2350
|
Newark | Tvs Diode, 50W, 5V, Sod-523, Full Reel, Clamping Voltage Vc Max:-, Diode Case Style:Sod-523, No. Of Pins:2Pins, Operating Voltage:5V, Power Dissipation Pd:200Mw, Product Range:Esd5B Series, Automotive Qualification Standard:Aec-Q101 Rohs Compliant: Yes |Onsemi ESD5B5.0ST1G RoHS: Compliant Min Qty: 30000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0330 / $0.0340 | Buy Now |
|
DISTI #
ESD5B5.0ST1GOSCT-ND
|
DigiKey | TVS DIODE 5VWM SOD523 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
60652 In Stock |
|
$0.0261 / $0.2100 | Buy Now |
|
DISTI #
ESD5B5.0ST1G
|
Avnet Americas | ESD Suppressor TVS Single Bi-Dir ?30kV@Air Gap/?30kV@Contact Disc/16kV@HBM 2-Pin SOD-523 T/R - Tape and Reel (Alt: ESD5B5.0ST1G) RoHS: Compliant Min Qty: 30000 Package Multiple: 30000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
ESD5B5.0ST1G
|
Avnet Americas | ESD Suppressor TVS Single Bi-Dir ?30kV@Air Gap/?30kV@Contact Disc/16kV@HBM 2-Pin SOD-523 T/R - Tape and Reel (Alt: ESD5B5.0ST1G) RoHS: Compliant Min Qty: 30000 Package Multiple: 30000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
ESD5B5.0ST1G
|
Avnet Americas | ESD Suppressor TVS Single Bi-Dir ?30kV@Air Gap/?30kV@Contact Disc/16kV@HBM 2-Pin SOD-523 T/R - Tape and Reel (Alt: ESD5B5.0ST1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0233 / $0.0255 | Buy Now |
|
DISTI #
10N9401
|
Avnet Americas | ESD Suppressor TVS Single Bi-Dir ?30kV@Air Gap/?30kV@Contact Disc/16kV@HBM 2-Pin SOD-523 T/R - Product that comes on tape, but is not reeled (Alt: 10N9401) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 2 Days Container: Ammo Pack | 0 |
|
$0.0590 / $0.1680 | Buy Now |
|
DISTI #
863-ESD5B50ST1G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes ESD PROT DIODE BID RoHS: Compliant | 0 |
|
$0.0260 / $0.1700 | Order Now |
|
DISTI #
V36:1790_07322409
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 5V 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2430 | Americas - 438000 |
|
$0.0226 / $0.0355 | Buy Now |
|
DISTI #
V72:2272_07322409
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 5V 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2227 Container: Cut Strips | Americas - 26673 |
|
$0.0359 / $0.0365 | Buy Now |
Part Details for ESD5B5.0ST1G
ESD5B5.0ST1G CAD Models
ESD5B5.0ST1G Part Data Attributes
|
|
ESD5B5.0ST1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD5B5.0ST1G
onsemi
ESD Protection Diode, Bidirectional, SOD-523 2 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-523 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 502 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, LOW CAPACITANCE | |
| Breakdown Voltage-Max | 7.8 V | |
| Breakdown Voltage-Min | 5.8 V | |
| Breakdown Voltage-Nom | 6.8 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 0.9 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 50 W | |
| Number of Elements | 2 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESD5B5.0ST1G
This table gives cross-reference parts and alternative options found for ESD5B5.0ST1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD5B5.0ST1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SZESD5B5.0ST5G | onsemi | Check for Price | ESD Protection Diode, Bidirectional, SOD-523-2, 8000-REEL, Automotive Qualified | ESD5B5.0ST1G vs SZESD5B5.0ST5G |
ESD5B5.0ST1G Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal ESD protection involves placing the ESD5B5.0ST1G close to the input connector, using short traces, and minimizing the distance between the device and the protected circuit. Additionally, a ground plane and a solid ground connection are essential for effective ESD protection.
-
To choose the correct ESD protection device, consider the following factors: the voltage and current requirements of your application, the type of interface or port being protected (e.g., USB, HDMI, etc.), and the level of ESD protection required (e.g., IEC 61000-4-2).
-
The maximum operating temperature range for the ESD5B5.0ST1G is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
-
Yes, the ESD5B5.0ST1G is suitable for ESD protection in high-speed data lines, such as USB, HDMI, and DisplayPort. Its low capacitance and high surge capability make it an ideal choice for protecting high-speed interfaces.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines. Use a solder with a melting point below 260°C, and avoid applying excessive heat or force during the soldering process.
