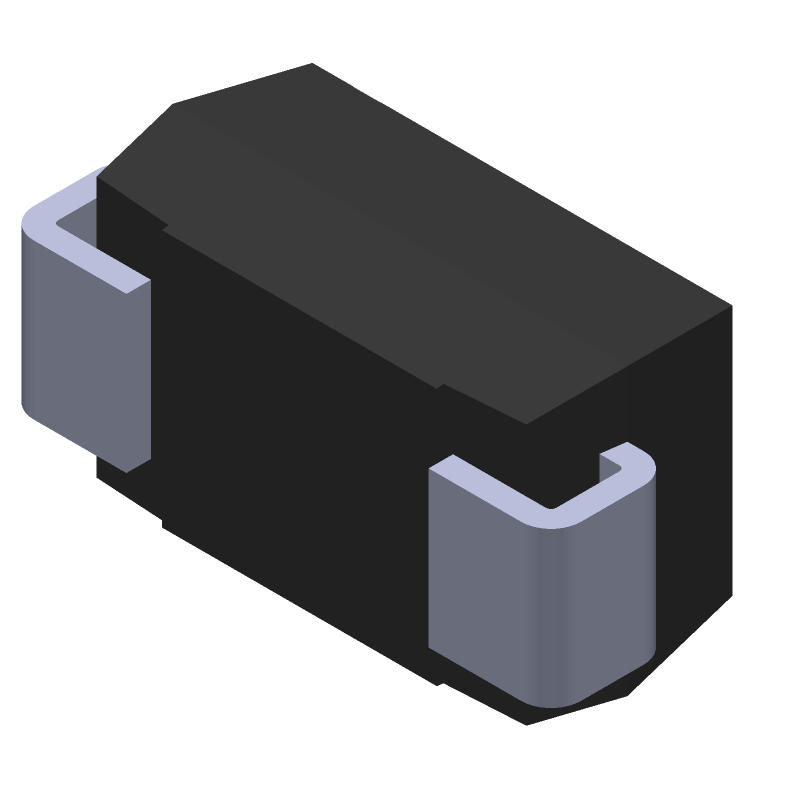

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ES1B-E3/5AT by Vishay Intertechnologies
Results Overview of ES1B-E3/5AT by Vishay Intertechnologies
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
ES1B-E3/5AT Information
ES1B-E3/5AT by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ES1B-E3/5AT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH3437
|
Newark | Rectifier, Sngl, 100V, 1A, Do-214Ac Rohs Compliant: Yes |Vishay ES1B-E3/5AT RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 21787 |
|
$0.1850 / $0.3090 | Buy Now |
|
DISTI #
26AM3246
|
Newark | 1A, 100V, 15Ns, Sma, Uf Rect. Smd |Vishay ES1B-E3/5AT RoHS: Not Compliant Min Qty: 7500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0350 | Buy Now |
|
DISTI #
76K4786
|
Newark | Rectifier Diode, Single, 100 V, 1 A, 1.1 V, 15 Ns, 30 A |Vishay ES1B-E3/5AT RoHS: Not Compliant Min Qty: 7500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0640 / $0.0940 | Buy Now |
|
DISTI #
ES1B-E3/5AT
|
Avnet Americas | 1A, 100V, 15NS, SMA, UF RECT. SMD - Tape and Reel (Alt: ES1B-E3/5AT) RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Lead time: 5 Weeks, 0 Days Container: Reel | 585000 |
|
$0.0342 | Buy Now |
|
DISTI #
625-ES1B-E3/5AT
|
Mouser Electronics | Rectifiers 1.0 Amp 100 Volt 30 Amp IFSM RoHS: Compliant | 57194 |
|
$0.0600 / $0.1700 | Buy Now |
|
DISTI #
E02:0323_00196604
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Lead time: 5 Weeks Date Code: 2503 | Europe - 37500 |
|
$0.0357 / $0.0525 | Buy Now |
|
DISTI #
V36:1790_18763274
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Lead time: 5 Weeks Date Code: 2402 | Americas - 37500 |
|
$0.0235 / $0.0290 | Buy Now |
|
DISTI #
V72:2272_18763274
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2136 Container: Cut Strips | Americas - 9550 |
|
$0.0373 / $0.0688 | Buy Now |
|
DISTI #
76919137
|
Verical | Diode Switching 100V 1A 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Date Code: 2402 | Americas - 37500 |
|
$0.0235 | Buy Now |
|
DISTI #
87601116
|
Verical | Diode Switching 100V 1A 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Date Code: 2503 | Americas - 37500 |
|
$0.0359 / $0.0528 | Buy Now |
Part Details for ES1B-E3/5AT
ES1B-E3/5AT CAD Models
ES1B-E3/5AT Part Data Attributes
|
|
ES1B-E3/5AT
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
ES1B-E3/5AT
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMA, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.865 V | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.015 µs | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ES1B-E3/5AT
This table gives cross-reference parts and alternative options found for ES1B-E3/5AT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ES1B-E3/5AT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| US1B-7 | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, PLASTIC, SMA, 2 PIN | ES1B-E3/5AT vs US1B-7 |
| ES1D-GT3 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | ES1B-E3/5AT vs ES1D-GT3 |
| US1B | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN | ES1B-E3/5AT vs US1B |
| CMR1U-01MTR13 | Central Semiconductor Corp | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, SMA, 2 PIN | ES1B-E3/5AT vs CMR1U-01MTR13 |
| ES1B | Rugao Dachang Electronics Co Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN | ES1B-E3/5AT vs ES1B |
| ES1B-13 | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, PLASTIC, SMA, 2 PIN | ES1B-E3/5AT vs ES1B-13 |
| US1B | Promax-Johnton Electronic Corporation | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | ES1B-E3/5AT vs US1B |
| GS1BE-TP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, SMAE, 2 PIN | ES1B-E3/5AT vs GS1BE-TP |
| HFM102 | Formosa Microsemi Co Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN | ES1B-E3/5AT vs HFM102 |
ES1B-E3/5AT Frequently Asked Questions (FAQ)
-
The recommended storage condition for ES1B-E3/5AT is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
Yes, ES1B-E3/5AT is suitable for high-reliability applications due to its high-quality construction and rigorous testing, making it a reliable choice for critical systems.
-
To prevent electrostatic discharge (ESD) damage, handle ES1B-E3/5AT components with anti-static wrist straps, mats, or bags, and ensure a grounded workstation.
-
The maximum allowable voltage derating for ES1B-E3/5AT is 80% of the rated voltage, ensuring a safe operating margin and preventing premature failure.
-
Yes, ES1B-E3/5AT is designed to operate in high-temperature environments, with a maximum operating temperature of 150°C, making it suitable for demanding applications.
