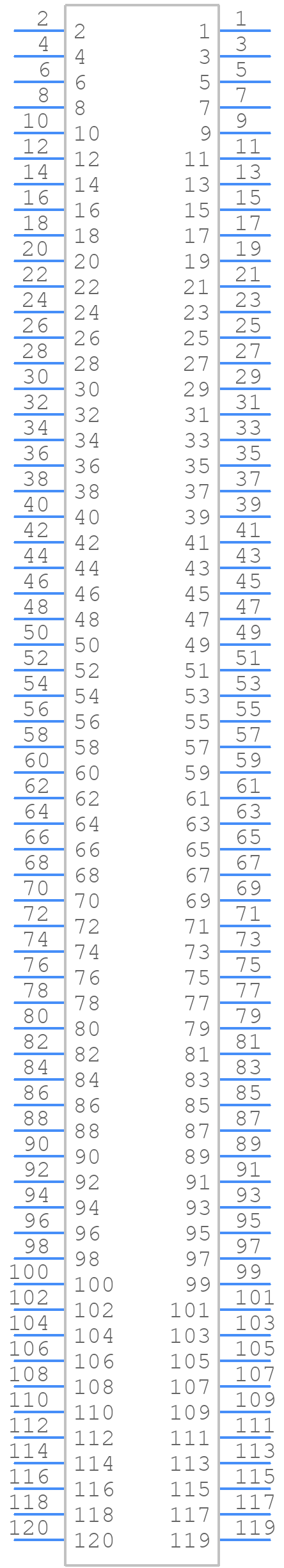

Part Symbol
-

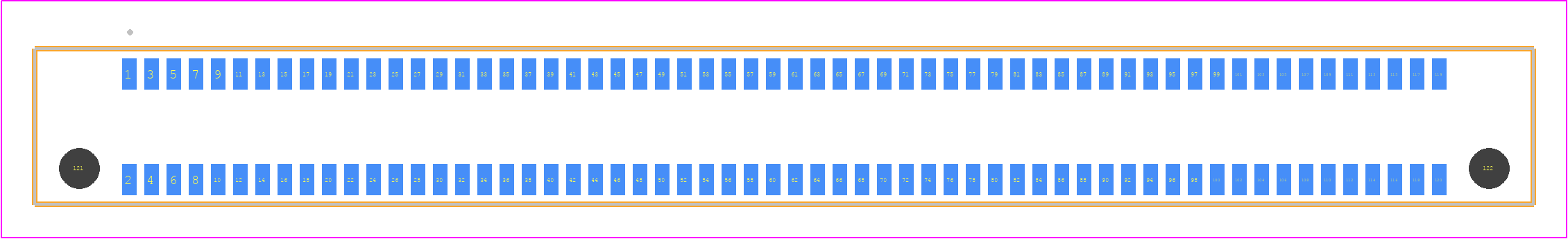

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ERM8-060-05.0-S-DV-TR by Samtec Inc
Results Overview of ERM8-060-05.0-S-DV-TR by Samtec Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Telecommunications
Consumer Electronics
Education and Research
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
ERM8-060-05.0-S-DV-TR Information
ERM8-060-05.0-S-DV-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for ERM8-060-05.0-S-DV-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SAM13818CT-ND
|
DigiKey | CONN HDR 120POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
394 In Stock |
|
$5.3982 / $8.9900 | Buy Now |
|
DISTI #
ERM8-060-05.0-S-DV-TR
|
Avnet Americas | Mezzanine Connector, High-Speed, Header, 0.8 mm, 2 Rows, 120 Contacts, Surface Mount - Tape and Reel (Alt: ERM8-060-05.0-S-DV-TR) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 1 Weeks, 0 Days Container: Reel | 164 Factory Stock |
|
$4.1568 / $5.9359 | Buy Now |
|
DISTI #
200-ERM806005.0SDVTR
|
Mouser Electronics | Board to Board & Mezzanine Connectors 0.80 mm Edge Rate(R) Rugged High Speed Terminal RoHS: Compliant | 247 |
|
$4.9700 / $8.9900 | Buy Now |
|
|
Onlinecomponents.com | 0.80 mm Edge Rate® Rugged High-Speed Terminal Strip RoHS: Compliant | 0 |
|
$5.0000 / $8.9000 | Buy Now |
|
|
Powell Electronics | 0.80 mm Edge Rate Rugged High-Speed Term Min Qty: 1 | 108 |
|
$6.5200 / $8.9900 | Buy Now |
|
DISTI #
000000000003036493
|
Sager | Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Terminal Min Qty: 1 | 164 |
|
$5.7100 / $8.9900 | Buy Now |
|
DISTI #
ERM8-060-05.0-S-DV-TR
|
Avnet Abacus | Mezzanine Connector HighSpeed Header 08 mm 2 Rows 120 Contacts Surface Mount (Alt: ERM8-060-05.0-S-DV-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 0.8mm 2 120P Standing paste SMDP0.8mm Board-to-Board and Backplane Connector ROHS | 50 |
|
$8.4335 / $11.7582 | Buy Now |
|
|
Master Electronics | 0.80 mm Edge Rate® Rugged High-Speed Terminal Strip RoHS: Compliant | 0 |
|
$5.0000 / $8.9000 | Buy Now |
Part Details for ERM8-060-05.0-S-DV-TR
ERM8-060-05.0-S-DV-TR CAD Models
ERM8-060-05.0-S-DV-TR Part Data Attributes
|
|
ERM8-060-05.0-S-DV-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
ERM8-060-05.0-S-DV-TR
Samtec Inc
Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Body Breadth | 0.22 inch | |
| Body Length | 2.126 inch | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Finish Mating | GOLD (30) OVER NICKEL (50) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Filter Feature | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.031 inch | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 3.81 mm | |
| Rated Current (Signal) | 2.2 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.7874 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 120 |
ERM8-060-05.0-S-DV-TR Frequently Asked Questions (FAQ)
-
The recommended torque for the screw-down mechanism is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the ERM8-060-05.0-S-DV-TR is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand up to 20 G of vibration.
-
The ERM8-060-05.0-S-DV-TR is rated for operation in temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult Samtec's environmental testing data and application notes for specific requirements.
-
The ERM8-060-05.0-S-DV-TR has a mating cycle life of at least 500 cycles, according to Samtec's testing and application notes.
-
While the ERM8-060-05.0-S-DV-TR is designed for 1.57 mm PCB thickness, Samtec offers variations for other PCB thicknesses. Consult Samtec's documentation or contact their support team for specific options.
