Resistors / Metal Glaze/Thick Film Resistors / ERJM1WSF20MU
Datasheets
ERJM1WSF20MU by: Panasonic Electronic Components

Fixed Resistor, Metal Glaze/thick Film, 1W, 0.02ohm, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT

Part Details for ERJM1WSF20MU by Panasonic Electronic Components

Results Overview of ERJM1WSF20MU by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ERJM1WSF20MU Information

ERJM1WSF20MU by Panasonic Electronic Components is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for ERJM1WSF20MU

Part # Distributor Description Stock Price Buy
DISTI # 70068901
RS Resistor, Thick Film, Res 0.02 Ohms, Pwr-Rtg 1 W, Tol 1%, SMT, 2512 Min Qty: 3000 Package Multiple: 1 Container: Bulk 0
  • 3,000 $0.3910
$0.3910 RFQ
Bristol Electronics   3235
RFQ
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 2109
  • 1 $1.0000
  • 112 $0.3000
  • 1,334 $0.2000
$0.2000 / $1.0000 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 (Also Known As: ERJ-M1WSF20MU) 2109
  • 1 $1.0000
  • 112 $0.3000
  • 1,334 $0.2000
$0.2000 / $1.0000 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 (Also Known As: ERJ-M1WSF20MU) 1512
  • 1 $1.0000
  • 21 $0.3000
  • 168 $0.2000
$0.2000 / $1.0000 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 1512
  • 1 $1.0000
  • 21 $0.3000
  • 168 $0.2000
$0.2000 / $1.0000 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 (Also Known As: ERJ-M1WSF20MU) 1243
  • 1 $0.3501
  • 258 $0.1634
  • 1,225 $0.1459
$0.1459 / $0.3501 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 1243
  • 1 $0.3501
  • 258 $0.1634
  • 1,225 $0.1459
$0.1459 / $0.3501 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 (Also Known As: ERJ-M1WSF20MU) 7
  • 1 $0.3501
$0.3501 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL GLAZE/THICK FILM, 1 W, 1 %, 100 PPM, 0.02 OHM, SURFACE MOUNT, 2512 7
  • 1 $0.3501
$0.3501 Buy Now
DISTI # ERJM1WSF20MU
Avnet Abacus SMD Current Sense Resistor 20 Milliohm 1 1 W 2512 6432 Metric Metal Plate - Tape and Reel (Alt: ERJM1WSF20MU) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Resistors 887
RFQ

Part Details for ERJM1WSF20MU

ERJM1WSF20MU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

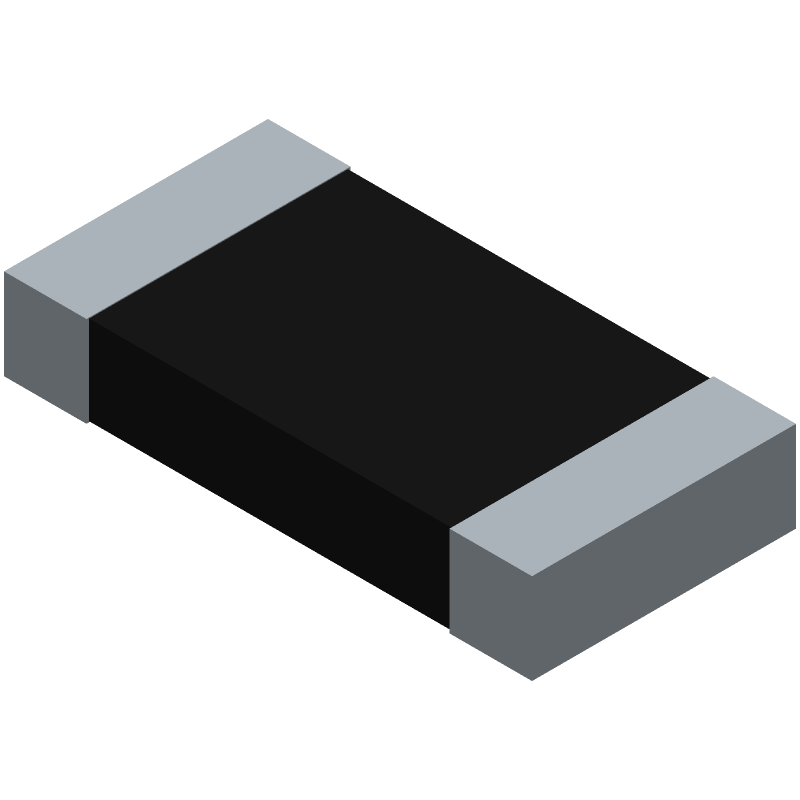

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ERJM1WSF20MU Part Data Attributes

Parametric Data
ERJM1WSF20MU Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ERJM1WSF20MU Panasonic Electronic Components Fixed Resistor, Metal Glaze/thick Film, 1W, 0.02ohm, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer Panasonic
Additional Feature HIGH-PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 170 °C
Operating Temperature-Min -55 °C
Package Height 0.8 mm
Package Length 6.4 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 3.2 mm
Packing Method TR, EMBOSSED, 7 INCH
Rated Power Dissipation (P) 1 W
Rated Temperature 70 °C
Resistance 0.02 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL PLATE
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%

ERJM1WSF20MU Related Parts

ERJM1WSF20MU Frequently Asked Questions (FAQ)

  • The recommended land pattern for the ERJM1WSF20MU is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.

  • The ERJM1WSF20MU is a moisture-sensitive device. It is recommended to store it in a dry environment (less than 20% RH) and to bake it at 125°C for 24 hours before reflow soldering.

  • The maximum reflow temperature for the ERJM1WSF20MU is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds.

  • Yes, the ERJM1WSF20MU is designed to withstand high vibrations. However, it is recommended to follow the recommended mounting and soldering procedures to ensure reliable operation.

  • To ensure the ERJM1WSF20MU's reliability in a high-temperature environment, it is recommended to follow the recommended derating guidelines, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB.
