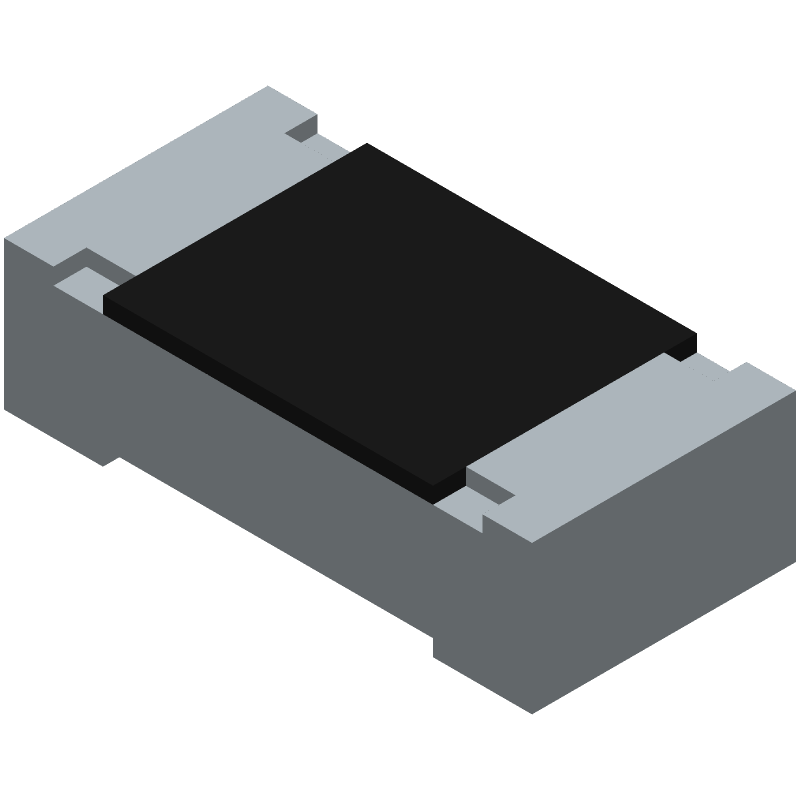

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ERJ3GEYJ471V by Panasonic Electronic Components
Results Overview of ERJ3GEYJ471V by Panasonic Electronic Components
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ERJ3GEYJ471V Information
ERJ3GEYJ471V by Panasonic Electronic Components is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ERJ3GEYJ471V
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65T8653
|
Newark | Res, Thick Film, 470R, 5%, 0.1W, 0603, Resistance:470Ohm, Resistance Tolerance:± 5%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:75V Rohs Compliant: Yes |Panasonic ERJ3GEYJ471V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 34937 |
|
$0.0050 | Buy Now |
|
DISTI #
12AC1120
|
Newark | Res, 470R, 5%, 0.1W, 0603, Resistor Case Style:0603 [1608 Metric], Resistance:470Ohm, Product Range:Erj3Ge Series, Voltage Rating:75V, Resistor Element Material:Thick Film, Power Rating:100Mw, Resistance Tolerance:± 5%, Temperature Rohs Compliant: Yes |Panasonic ERJ3GEYJ471V RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0070 / $0.0090 | Buy Now |
|
|
Bristol Electronics | 43737 |
|
RFQ | ||
|
|
Bristol Electronics | 3585 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 470 OHM, SURFACE MOUNT, 0603 | 157717 |
|
$0.0060 / $0.0600 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 470 OHM, SURFACE MOUNT, 0603 (Also Known As: ERJ-3GEYJ471V) | 157717 |
|
$0.0060 / $0.0600 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 470 OHM, SURFACE MOUNT, 0603 | 48108 |
|
$0.1650 / $0.5500 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 470 OHM, SURFACE MOUNT, 0603 (Also Known As: ERJ-3GEYJ471V) | 48108 |
|
$0.1650 / $0.5500 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 470 OHM, SURFACE MOUNT, 0603 (Also Known As: ERJ-3GEYJ471V) | 18954 |
|
$0.0038 / $0.0200 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 470 OHM, SURFACE MOUNT, 0603 | 18954 |
|
$0.0038 / $0.0200 | Buy Now |
Part Details for ERJ3GEYJ471V
ERJ3GEYJ471V CAD Models
ERJ3GEYJ471V Part Data Attributes
|
|
ERJ3GEYJ471V
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ERJ3GEYJ471V
Panasonic Electronic Components
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 470ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | Panasonic | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200, IEC60115-8 | |
| Resistance | 470 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 75 V |
ERJ3GEYJ471V Frequently Asked Questions (FAQ)
-
The recommended land pattern for ERJ3GEYJ471V is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
-
During reflow soldering, the ERJ3GEYJ471V should be placed on a flat surface, and the peak reflow temperature should not exceed 260°C. The component should be exposed to the reflow temperature for no more than 20 seconds.
-
The maximum power rating for ERJ3GEYJ471V is 0.25W. Exceeding this rating may cause the component to overheat and fail.
-
Yes, ERJ3GEYJ471V is suitable for use in high-frequency circuits up to 1 GHz. However, the component's self-resonant frequency is around 100 MHz, so it's essential to consider this when designing the circuit.
-
ERJ3GEYJ471V components should be stored in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -10°C and 40°C, and the humidity should be below 70%.
