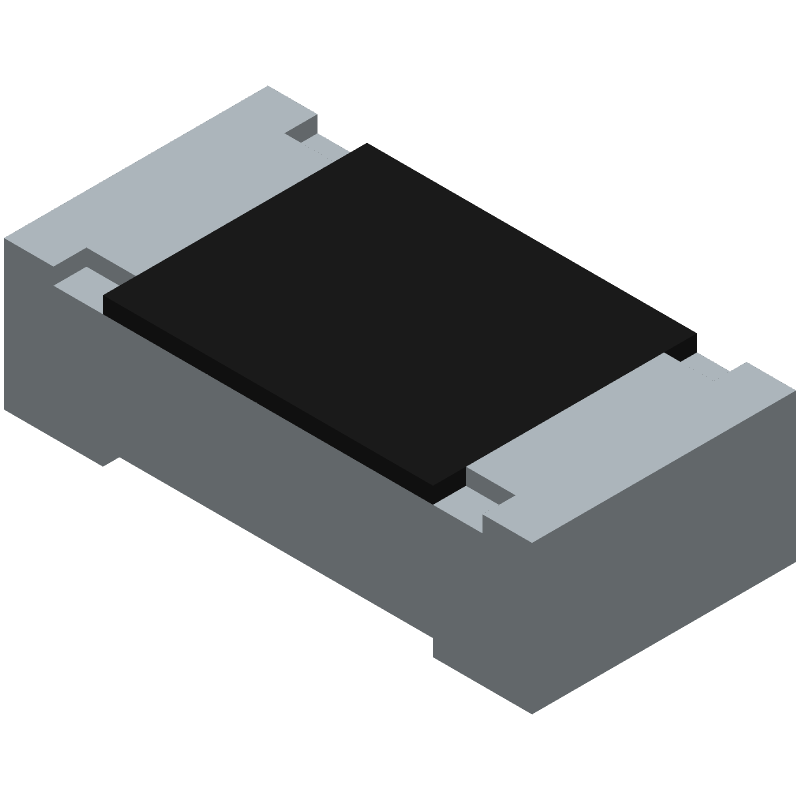

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ERJ3EKF6810V by Panasonic Electronic Components
Results Overview of ERJ3EKF6810V by Panasonic Electronic Components
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Energy and Power Systems
Renewable Energy
ERJ3EKF6810V Information
ERJ3EKF6810V by Panasonic Electronic Components is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ERJ3EKF6810V
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53W4669
|
Newark | Res, Thick Film, 681R, 1%, 0.1W, 0603, Resistance:681Ohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:Precision, Voltage Rating:75V Rohs Compliant: Yes |Panasonic ERJ3EKF6810V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 27107 |
|
$0.0040 | Buy Now |
|
DISTI #
51W9554
|
Newark | Res, Thick Film, 681R, 1%, 0.1W, 0603, Reel, Resistance:681Ohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:Precision, Voltage Rating:75V Rohs Compliant: Yes |Panasonic ERJ3EKF6810V RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Date Code: 1 Container: Reel | 25000 |
|
$0.0020 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE | 22325 |
|
$0.0044 / $0.0232 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE (Also Known As: ERJ-3EKF6810V) | 22325 |
|
$0.0044 / $0.0232 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE (Also Known As: ERJ-3EKF6810V) | 17244 |
|
$0.0045 / $0.0225 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE | 17244 |
|
$0.0045 / $0.0225 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE | 4127 |
|
$0.0045 / $0.0450 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE | 4127 |
|
$0.0045 / $0.0450 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE (Also Known As: ERJ-3EKF6810V) | 4127 |
|
$0.0045 / $0.0450 | Buy Now |
|
|
Quest Components | RES,METAL GLAZE,681OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0603-CASE (Also Known As: ERJ-3EKF6810V) | 4127 |
|
$0.0045 / $0.0450 | Buy Now |
Part Details for ERJ3EKF6810V
ERJ3EKF6810V CAD Models
ERJ3EKF6810V Part Data Attributes
|
|
ERJ3EKF6810V
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ERJ3EKF6810V
Panasonic Electronic Components
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 681ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 53 Weeks, 2 Days | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | IEC60115-8, PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PUNCHED, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 681 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
