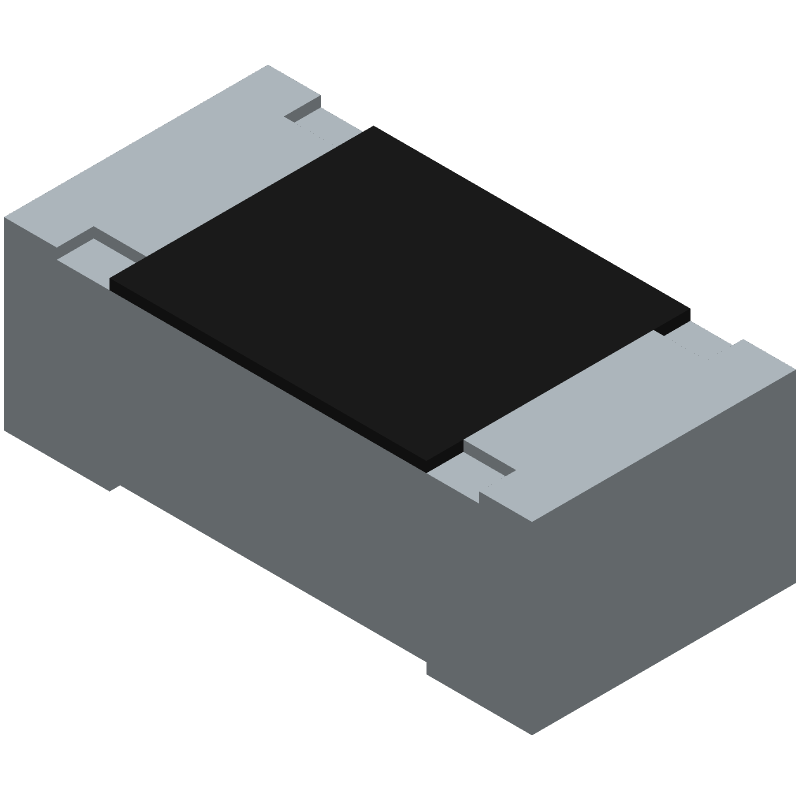

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ERJ2RKF4531X by Panasonic Electronic Components
Results Overview of ERJ2RKF4531X by Panasonic Electronic Components
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ERJ2RKF4531X Information
ERJ2RKF4531X by Panasonic Electronic Components is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ERJ2RKF4531X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85Y8332
|
Newark | Res, 4K53, 1%, 0.1W, 0402, Thick Film, Resistor Case Style:0402 [1005 Metric], Resistance:4.53Kohm, Product Range:Erj2R Series, Voltage Rating:50V, Resistor Element Material:Thick Film, Power Rating:63Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Panasonic ERJ2RKF4531X RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 12569 |
|
$0.0060 / $0.0230 | Buy Now |
|
|
Bristol Electronics | 9494 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 | 64000 |
|
$0.0039 / $0.0450 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 (Also Known As: ERJ-2RKF4531X) | 64000 |
|
$0.0039 / $0.0450 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 (Also Known As: ERJ-2RKF4531X) | 32000 |
|
$0.0060 / $0.0300 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 | 32000 |
|
$0.0060 / $0.0300 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 | 18942 |
|
$0.0030 / $0.0160 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 (Also Known As: ERJ-2RKF4531X) | 18942 |
|
$0.0030 / $0.0160 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 | 7296 |
|
$0.0045 / $0.0450 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 4530 ohm, SURFACE MOUNT, 0402 (Also Known As: ERJ-2RKF4531X) | 7296 |
|
$0.0045 / $0.0450 | Buy Now |
Part Details for ERJ2RKF4531X
ERJ2RKF4531X CAD Models
ERJ2RKF4531X Part Data Attributes
|
|
ERJ2RKF4531X
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ERJ2RKF4531X
Panasonic Electronic Components
Fixed Resistor, Metal Glaze/thick Film, 0.063W, 4530ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 27 Weeks, 1 Day | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | IEC60115-8, PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.35 mm | |
| Package Length | 1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, PUNCHED, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4530 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 50 V |
ERJ2RKF4531X Frequently Asked Questions (FAQ)
-
The recommended land pattern for ERJ2RKF4531X is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
-
Yes, ERJ2RKF4531X is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions are within the specified limits.
-
To prevent damage, handle ERJ2RKF4531X by the edges, avoid touching the component's leads or body, and use an anti-static wrist strap or mat. Also, ensure that the component is not subjected to excessive mechanical stress, bending, or twisting during assembly.
-
The recommended soldering profile for ERJ2RKF4531X is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
-
Yes, ERJ2RKF4531X is rated for operation in humid environments, with a moisture sensitivity level (MSL) of 2. However, it's essential to ensure that the component is properly sealed and protected from moisture ingress to prevent damage.
