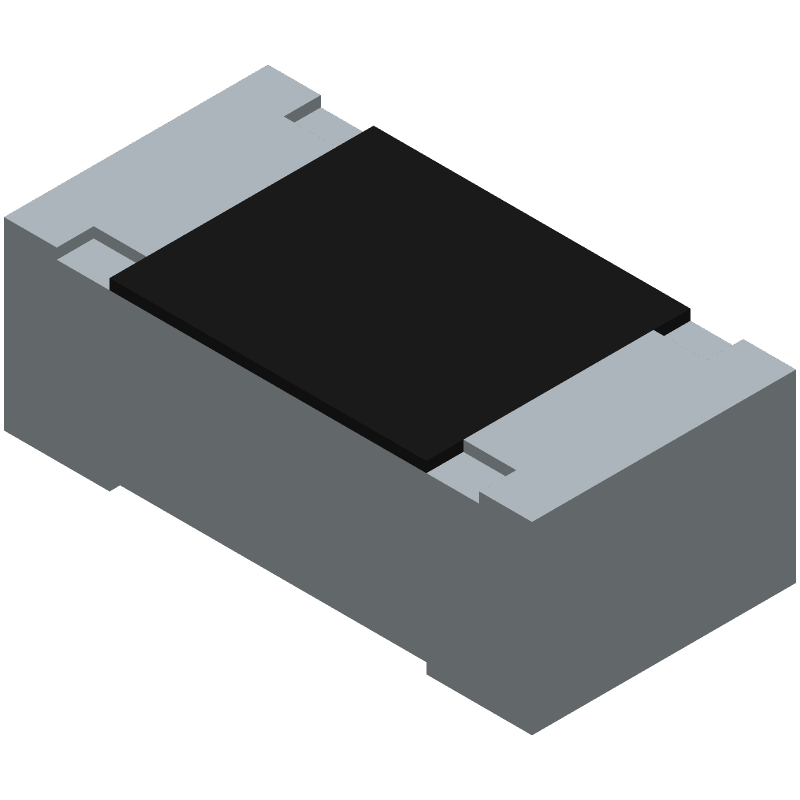

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ERJ2GEJ105X by Panasonic Electronic Components
Results Overview of ERJ2GEJ105X by Panasonic Electronic Components
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Industrial Automation
Audio and Video Systems
Electronic Manufacturing
ERJ2GEJ105X Information
ERJ2GEJ105X by Panasonic Electronic Components is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ERJ2GEJ105X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AK4820
|
Newark | Res, 1M, 5%, 0.1W, 0402, Thick Film Rohs Compliant: Yes |Panasonic ERJ2GEJ105X RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel | 70000 |
|
$0.0030 | Buy Now |
|
DISTI #
65T8250
|
Newark | Res, Thick Film, 1M, 5%, 0.1W, 0402, Resistance:1Mohm, Resistance Tolerance:± 5%, Power Rating:100Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:50V Rohs Compliant: Yes |Panasonic ERJ2GEJ105X RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 55387 |
|
$0.0050 / $0.0980 | Buy Now |
|
|
Bristol Electronics | 26072 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 | 158781 |
|
$0.0027 / $0.0168 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 (Also Known As: ERJ-2GEJ105X) | 158781 |
|
$0.0027 / $0.0168 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 | 47640 |
|
$0.0065 / $0.0750 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 (Also Known As: ERJ-2GEJ105X) | 47640 |
|
$0.0065 / $0.0750 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 (Also Known As: ERJ-2GEJ105X) | 34228 |
|
$0.0175 / $0.1500 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 | 34228 |
|
$0.0175 / $0.1500 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 1000000 OHM, SURFACE MOUNT, 0402 | 24000 |
|
$0.0063 / $0.0315 | Buy Now |
Part Details for ERJ2GEJ105X
ERJ2GEJ105X CAD Models
ERJ2GEJ105X Part Data Attributes
|
|
ERJ2GEJ105X
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ERJ2GEJ105X
Panasonic Electronic Components
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1000000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | Panasonic | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.35 mm | |
| Package Length | 1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200, IEC60115-8 | |
| Resistance | 1000000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 50 V |
