Resistors / Metal Glaze/Thick Film Resistors / ERJ1GEF49R9C
Datasheets
ERJ1GEF49R9C by: Panasonic Electronic Components

Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP

Part Details for ERJ1GEF49R9C by Panasonic Electronic Components

Results Overview of ERJ1GEF49R9C by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

ERJ1GEF49R9C Information

ERJ1GEF49R9C by Panasonic Electronic Components is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for ERJ1GEF49R9C

Part # Distributor Description Stock Price Buy
Bristol Electronics   Min Qty: 148 6712
  • 148 $0.0338
  • 445 $0.0225
  • 1,557 $0.0056
$0.0056 / $0.0338 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 123636
  • 1 $0.0304
  • 35,089 $0.0049
  • 101,216 $0.0046
$0.0046 / $0.0304 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 (Also Known As: ERJ-1GEF49R9C) 123636
  • 1 $0.0304
  • 35,089 $0.0049
  • 101,216 $0.0046
$0.0046 / $0.0304 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 (Also Known As: ERJ-1GEF49R9C) 12000
  • 1 $0.0450
  • 668 $0.0150
  • 3,334 $0.0045
$0.0045 / $0.0450 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 12000
  • 1 $0.0450
  • 668 $0.0150
  • 3,334 $0.0045
$0.0045 / $0.0450 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 9340
  • 1 $0.7500
  • 2,668 $0.2625
  • 5,715 $0.2250
$0.2250 / $0.7500 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 (Also Known As: ERJ-1GEF49R9C) 9340
  • 1 $0.7500
  • 2,668 $0.2625
  • 5,715 $0.2250
$0.2250 / $0.7500 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 (Also Known As: ERJ-1GEF49R9C) 6264
  • 1 $0.0570
  • 527 $0.0190
  • 2,633 $0.0114
$0.0114 / $0.0570 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 6264
  • 1 $0.0570
  • 527 $0.0190
  • 2,633 $0.0114
$0.0114 / $0.0570 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 5369
  • 1 $0.0450
  • 668 $0.0150
  • 3,334 $0.0045
$0.0045 / $0.0450 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 49.9OHM, 25V, 1% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0201 (Also Known As: ERJ-1GEF49R9C) 5369
  • 1 $0.0450
  • 668 $0.0150
  • 3,334 $0.0045
$0.0045 / $0.0450 Buy Now
DISTI # ERJ1GEF49R9C
Avnet Abacus SMD Chip Resistor 499 ohm 1 50 mW 0201 0603 Metric Thick Film Precision - Tape and Reel (Alt: ERJ1GEF49R9C) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 143 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Resistors 1138
RFQ

Part Details for ERJ1GEF49R9C

ERJ1GEF49R9C CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

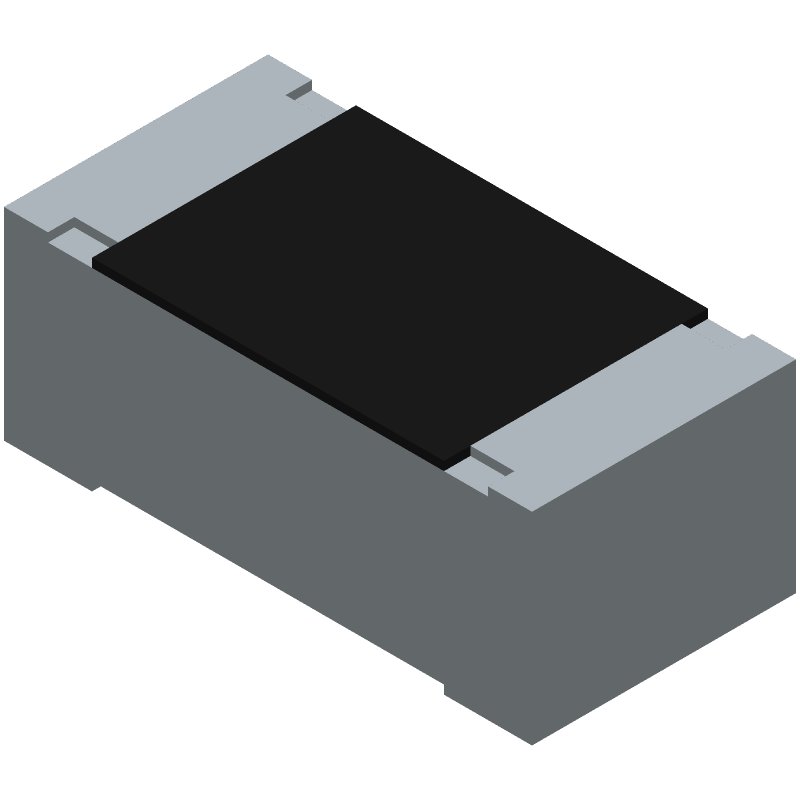

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ERJ1GEF49R9C Part Data Attributes

Parametric Data
ERJ1GEF49R9C Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ERJ1GEF49R9C Panasonic Electronic Components Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
Samacsys Manufacturer Panasonic
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.23 mm
Package Length 0.6 mm
Package Style SMT
Package Width 0.3 mm
Packing Method TR, PRESSED, 7 INCH
Rated Power Dissipation (P) 0.05 W
Rated Temperature 70 °C
Reference Standard IEC60115-8
Resistance 49.9 Ω
Resistor Type FIXED RESISTOR
Size Code 0201
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 25 V

Alternate Parts for ERJ1GEF49R9C

This table gives cross-reference parts and alternative options found for ERJ1GEF49R9C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERJ1GEF49R9C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCR006YLPF49R9 ROHM Semiconductor Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 250ppm/Cel, Surface Mount, 0201, CHIP ERJ1GEF49R9C vs MCR006YLPF49R9
2322806749R9 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT ERJ1GEF49R9C vs 2322806749R9
WR02X49R9FQL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201, ERJ1GEF49R9C vs WR02X49R9FQL
BCTS000201-49R9FTH Chilisin Electronics Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GEF49R9C vs BCTS000201-49R9FTH
RC0201FR-1349R9 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT ERJ1GEF49R9C vs RC0201FR-1349R9
RTT0149R9FH5 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201, ERJ1GEF49R9C vs RTT0149R9FH5
RC0201FR-1349R9P YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0201, CHIP ERJ1GEF49R9C vs RC0201FR-1349R9P
RC01W49R9FCG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GEF49R9C vs RC01W49R9FCG
RC01W49R9FTG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GEF49R9C vs RC01W49R9FTG
CR05-49R9-FK ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 49.9ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GEF49R9C vs CR05-49R9-FK

ERJ1GEF49R9C Related Parts

ERJ1GEF49R9C Frequently Asked Questions (FAQ)

  • The recommended land pattern for ERJ1GEF49R9C is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.

  • Yes, ERJ1GEF49R9C is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the resistor's power rating and reliability may be affected at elevated temperatures.

  • ERJ1GEF49R9C is a general-purpose resistor and not specifically designed for high-frequency applications. For high-frequency applications, a specialized resistor with low inductance and capacitance should be used.

  • ERJ1GEF49R9C is not designed for use in humid or wet environments. It is recommended to use a resistor with a moisture-resistant coating or a specialized resistor designed for humid or wet environments.

  • The recommended soldering temperature for ERJ1GEF49R9C is between 200°C to 250°C, with a maximum soldering time of 3 seconds.
