Programmable Logic / Field Programmable Gate Arrays / EP4CE40F29C8N
Datasheets
EP4CE40F29C8N by:

Field Programmable Gate Array, 39600 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, LEAD FREE, FBGA-780

Part Details for EP4CE40F29C8N by Intel Corporation

Results Overview of EP4CE40F29C8N by Intel Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Computing and Data Storage

EP4CE40F29C8N Information

EP4CE40F29C8N by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for EP4CE40F29C8N

Part # Distributor Description Stock Price Buy
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 1080
  • 1 $57.1400
  • 36 $42.9000
  • 100 $41.9800
$41.9800 / $57.1400 Buy Now

Part Details for EP4CE40F29C8N

EP4CE40F29C8N CAD Models

  • Part Symbol

    Part Symbol

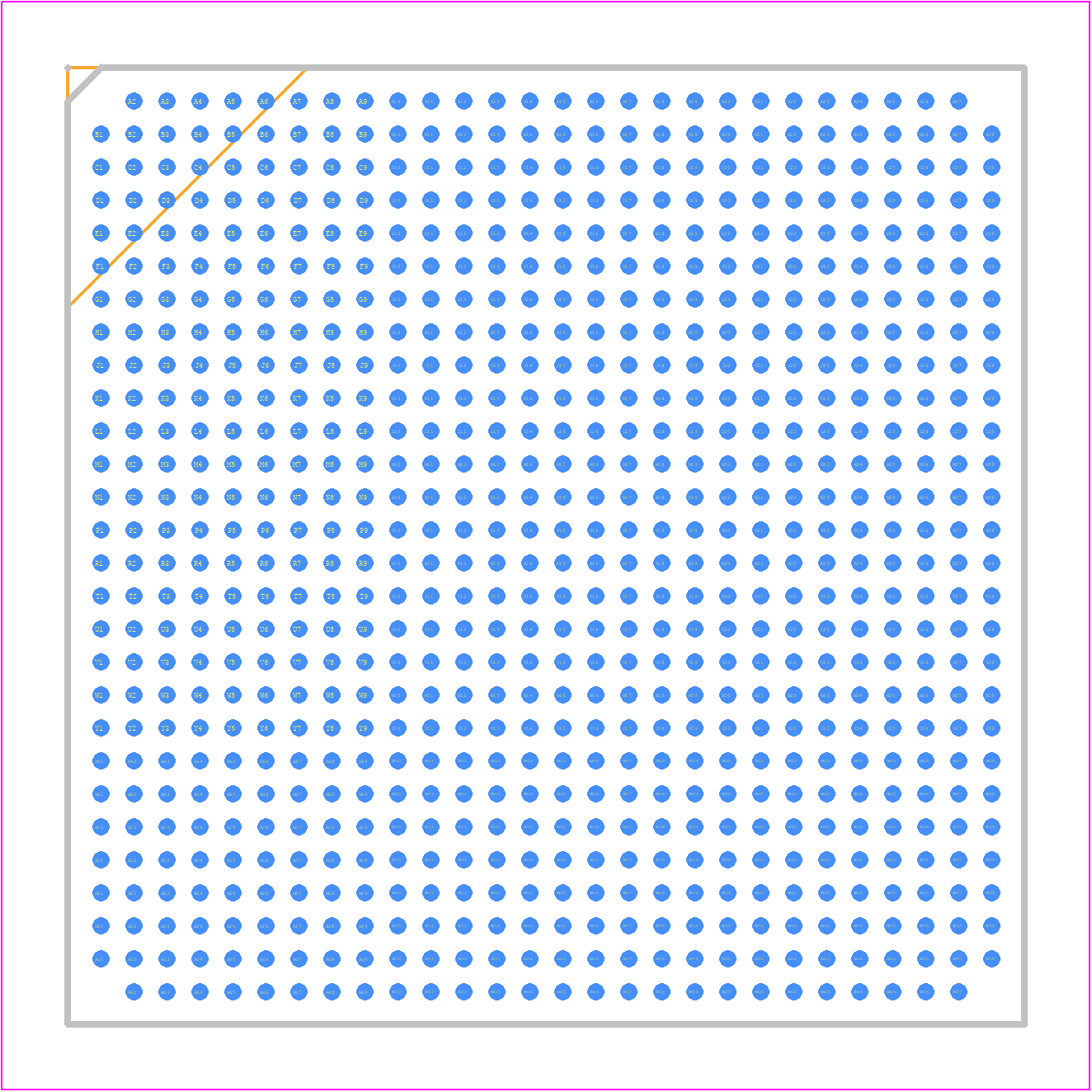

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EP4CE40F29C8N Part Data Attributes

Parametric Data
EP4CE40F29C8N Intel Corporation
Buy Now Datasheet
Compare Parts:
EP4CE40F29C8N Intel Corporation Field Programmable Gate Array, 39600 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, LEAD FREE, FBGA-780
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEL CORP
Package Description 29 X 29 MM, 1 MM PITCH, LEAD FREE, FBGA-780
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Intel
Additional Feature IT CAN ASO OPERATE AT 1.2V SUPPLY
Clock Frequency-Max 472.5 MHz
JESD-30 Code S-PBGA-B780
JESD-609 Code e1
Length 29 mm
Moisture Sensitivity Level 3
Number of CLBs 39600
Number of Inputs 535
Number of Logic Cells 39600
Number of Outputs 535
Number of Terminals 780
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 2475 CLBS
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA780,28X28,40
Package Shape SQUARE
Package Style GRID ARRAY
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 2.6 mm
Supply Voltage-Max 1.03 V
Supply Voltage-Min 0.97 V
Supply Voltage-Nom 1 V
Surface Mount YES
Temperature Grade OTHER
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Width 29 mm

Alternate Parts for EP4CE40F29C8N

This table gives cross-reference parts and alternative options found for EP4CE40F29C8N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EP4CE40F29C8N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EP4CE40F29C8 Altera Corporation Check for Price Field Programmable Gate Array, 39600-Cell, PBGA780, FBGA-780 EP4CE40F29C8N vs EP4CE40F29C8
Part Number Manufacturer Composite Price Description Compare
EP4CE40F29C8N Altera Corporation Check for Price Field Programmable Gate Array, 39600 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, LEAD FREE, FBGA-780 EP4CE40F29C8N vs EP4CE40F29C8N
EP4CE40F29I7 Intel Corporation Check for Price Field Programmable Gate Array, 2475 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, FBGA-780 EP4CE40F29C8N vs EP4CE40F29I7
EP4CE40F29C7 Intel Corporation Check for Price Field Programmable Gate Array, 2475 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, FBGA-780 EP4CE40F29C8N vs EP4CE40F29C7
EP4CE40F29I7N Intel Corporation Check for Price Field Programmable Gate Array, 2475 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, LEAD FREE, FBGA-780 EP4CE40F29C8N vs EP4CE40F29I7N
EP4CE40F29I7 Altera Corporation Check for Price Field Programmable Gate Array, 2475 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, FBGA-780 EP4CE40F29C8N vs EP4CE40F29I7
EP4CE40F29C7 Altera Corporation Check for Price Field Programmable Gate Array, 2475 CLBs, 472.5MHz, 39600-Cell, PBGA780, 29 X 29 MM, 1 MM PITCH, FBGA-780 EP4CE40F29C8N vs EP4CE40F29C7

EP4CE40F29C8N Related Parts

EP4CE40F29C8N Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the EP4CE40F29C8N is -40°C to 100°C.

  • To implement a clock domain crossing (CDC) in the EP4CE40F29C8N, you can use a synchronizer circuit or a FIFO-based CDC. The synchronizer circuit uses a pair of flip-flops to resynchronize the signal, while the FIFO-based CDC uses a FIFO to buffer the data and a clock domain crossing circuit to synchronize the clock.

  • The maximum frequency of the EP4CE40F29C8N is 500 MHz.

  • To optimize the power consumption of the EP4CE40F29C8N, you can use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling. You can also use the Intel Quartus II software to optimize the power consumption of the device.

  • The maximum current consumption of the EP4CE40F29C8N is 1.5 A.
