Programmable Logic / Field Programmable Gate Arrays / EP4CE15F17I7N
Datasheets
EP4CE15F17I7N by:

Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256

Part Details for EP4CE15F17I7N by Intel Corporation

Results Overview of EP4CE15F17I7N by Intel Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Computing and Data Storage

EP4CE15F17I7N Information

EP4CE15F17I7N by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for EP4CE15F17I7N

Part # Distributor Description Stock Price Buy
Chip 1 Exchange INSTOCK 40
RFQ
Cytech Systems Limited IC FPGA 165 I/O 256FBGA 6930
RFQ
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 826
  • 1 $41.4200
  • 25 $37.2700
  • 90 $31.0600
$31.0600 / $41.4200 Buy Now

Part Details for EP4CE15F17I7N

EP4CE15F17I7N CAD Models

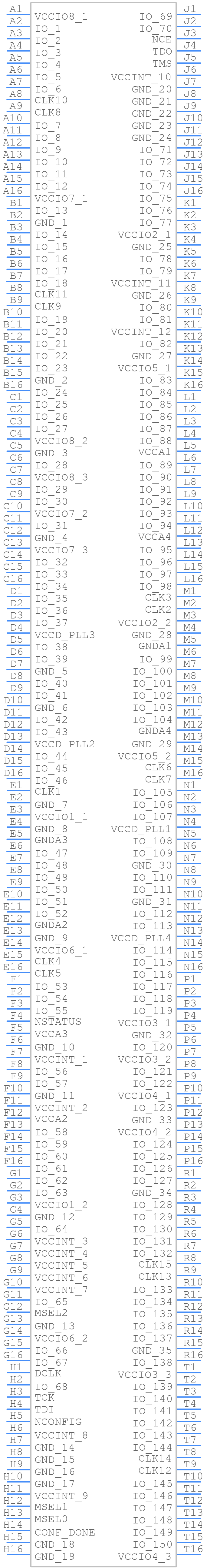

  • Part Symbol

    Part Symbol

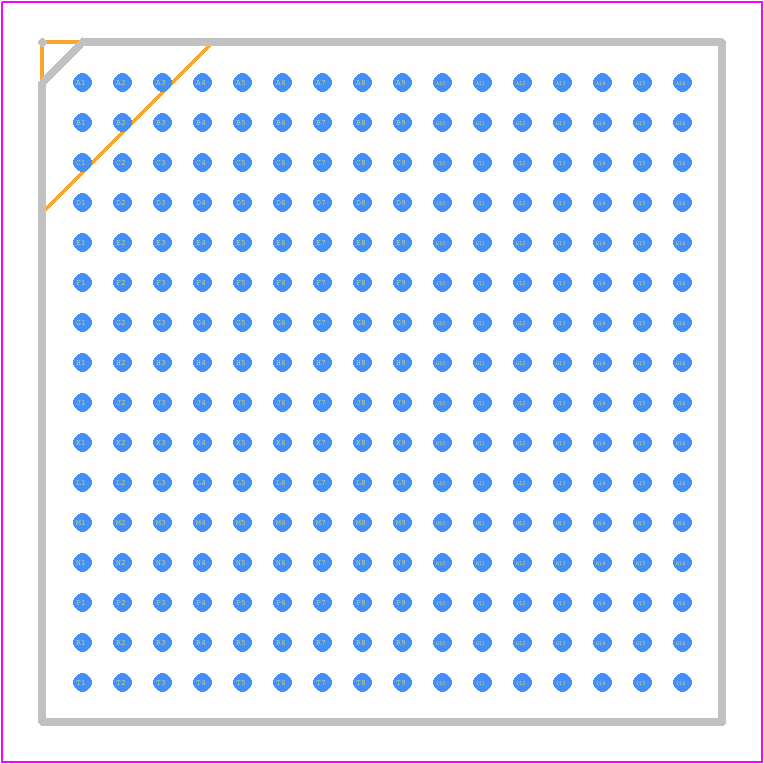

  • Footprint

    footprint

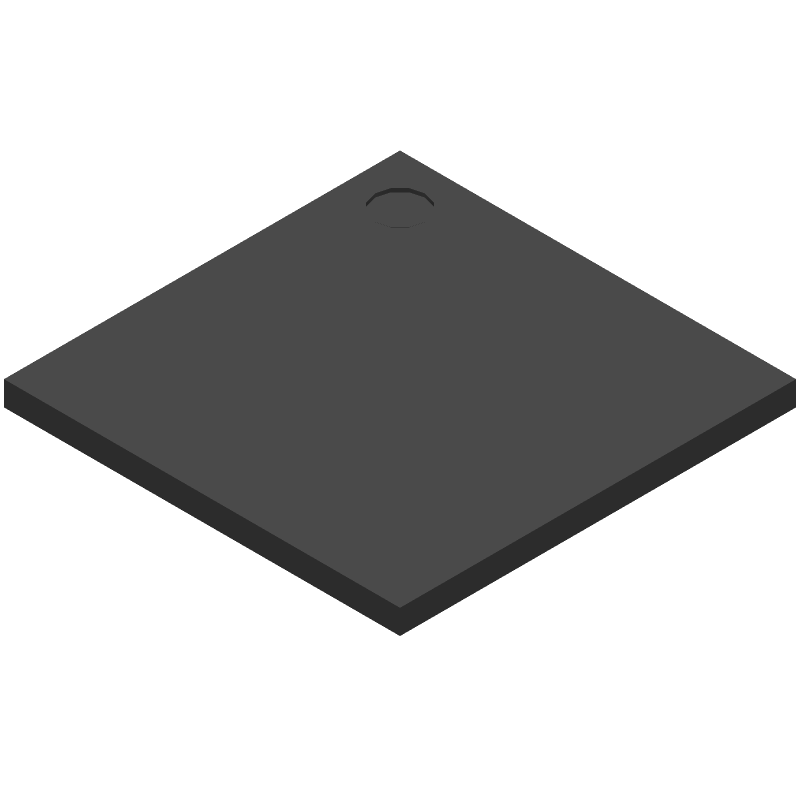

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EP4CE15F17I7N Part Data Attributes

Parametric Data
EP4CE15F17I7N Intel Corporation
Buy Now Datasheet
Compare Parts:
EP4CE15F17I7N Intel Corporation Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEL CORP
Package Description 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Intel
Clock Frequency-Max 472.5 MHz
JESD-30 Code S-PBGA-B256
JESD-609 Code e1
Length 17 mm
Moisture Sensitivity Level 3
Number of CLBs 963
Number of Inputs 165
Number of Logic Cells 15408
Number of Outputs 165
Number of Terminals 256
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Organization 963 CLBS
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA256,16X16,40
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 1.55 mm
Supply Voltage-Max 1.25 V
Supply Voltage-Min 1.15 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Width 17 mm

Alternate Parts for EP4CE15F17I7N

This table gives cross-reference parts and alternative options found for EP4CE15F17I7N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EP4CE15F17I7N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EP4CE15F17I7N Altera Corporation $43.3900 Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE15F17I7N vs EP4CE15F17I7N
EP4CE15F17C8N Altera Corporation $7.7636 Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE15F17I7N vs EP4CE15F17C8N
EP4CE15F17I7 Intel Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE15F17I7N vs EP4CE15F17I7
EP4CE15F17I7 Altera Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE15F17I7N vs EP4CE15F17I7
EP4CE15F17A7N Intel Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE15F17I7N vs EP4CE15F17A7N
EP4CE15F17C6 Altera Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE15F17I7N vs EP4CE15F17C6
EP4CE15F17C8N Intel Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE15F17I7N vs EP4CE15F17C8N
EP4CE15F17C8 Intel Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE15F17I7N vs EP4CE15F17C8
EP4CE15F17C6N Intel Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE15F17I7N vs EP4CE15F17C6N
EP4CE15F17C6N Altera Corporation Check for Price Field Programmable Gate Array, 963 CLBs, 472.5MHz, 15408-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE15F17I7N vs EP4CE15F17C6N

EP4CE15F17I7N Related Parts

EP4CE15F17I7N Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the EP4CE15F17I7N is 500 MHz.

  • The EP4CE15F17I7N has a typical power consumption of 1.1 W at 500 MHz.

  • The EP4CE15F17I7N has a maximum of 304 user I/O pins available.

  • Yes, the EP4CE15F17I7N supports partial reconfiguration, allowing for dynamic reconfiguration of the FPGA.

  • The EP4CE15F17I7N has a maximum of 2.5 Mb of embedded memory available.
