EP3C55U484I7N by:

Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484

Part Details for EP3C55U484I7N by Intel Corporation

Results Overview of EP3C55U484I7N by Intel Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Computing and Data Storage

EP3C55U484I7N Information

EP3C55U484I7N by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Part Details for EP3C55U484I7N

EP3C55U484I7N CAD Models

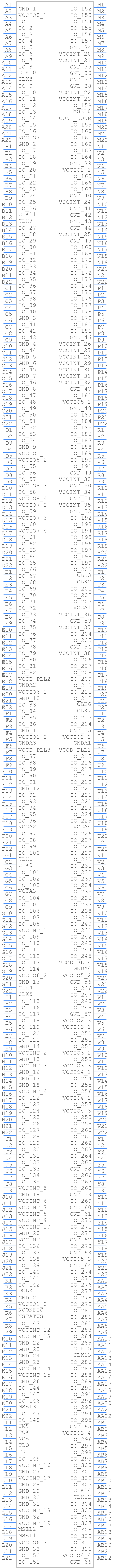

  • Part Symbol

    Part Symbol

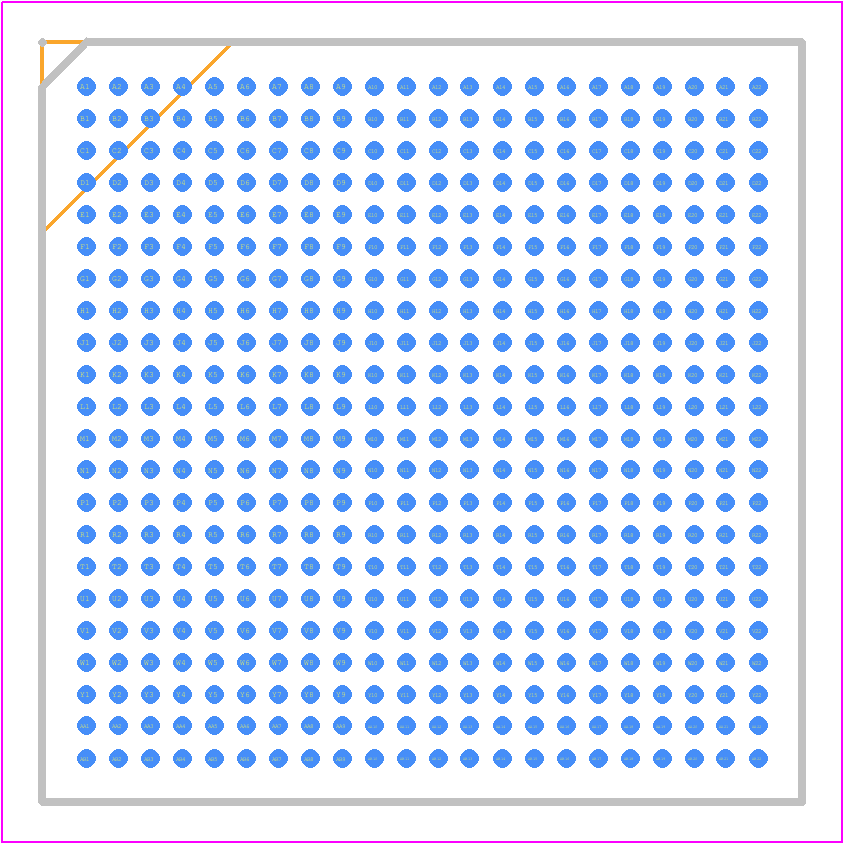

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EP3C55U484I7N Part Data Attributes

Parametric Data
EP3C55U484I7N Intel Corporation
Buy Now Datasheet
Compare Parts:
EP3C55U484I7N Intel Corporation Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEL CORP
Package Description 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484
Reach Compliance Code compliant
ECCN Code 3A991
HTS Code 8542.39.00.01
Samacsys Manufacturer Intel
Clock Frequency-Max 472.5 MHz
JESD-30 Code R-PBGA-B484
JESD-609 Code e1
Length 19 mm
Moisture Sensitivity Level 3
Number of CLBs 55856
Number of Inputs 327
Number of Logic Cells 55856
Number of Outputs 327
Number of Terminals 484
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Organization 55856 CLBS
Package Body Material PLASTIC/EPOXY
Package Code FBGA
Package Equivalence Code BGA484,22X22,32
Package Shape RECTANGULAR
Package Style GRID ARRAY, FINE PITCH
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 2.2 mm
Supply Voltage-Max 1.25 V
Supply Voltage-Min 1.15 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Width 19 mm

Alternate Parts for EP3C55U484I7N

This table gives cross-reference parts and alternative options found for EP3C55U484I7N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EP3C55U484I7N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EP3C55U484C7N Intel Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484 EP3C55U484I7N vs EP3C55U484C7N
Part Number Manufacturer Composite Price Description Compare
EP3C55U484I7 Intel Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484I7
EP3C55U484C7 Altera Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484C7
EP3C55U484C7 Intel Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484C7
EP3C55U484C7N Altera Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484 EP3C55U484I7N vs EP3C55U484C7N
EP3C55U484I7 Altera Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484I7
EP3C55U484C8N Intel Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484 EP3C55U484I7N vs EP3C55U484C8N
EP3C55U484C6 Altera Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484C6
EP3C55U484C8N Altera Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, UFBGA-484 EP3C55U484I7N vs EP3C55U484C8N
EP3C55U484C6 Intel Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484C6
EP3C55U484C8 Intel Corporation Check for Price Field Programmable Gate Array, 55856 CLBs, 472.5MHz, 55856-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, UBGA-484 EP3C55U484I7N vs EP3C55U484C8

EP3C55U484I7N Related Parts

EP3C55U484I7N Frequently Asked Questions (FAQ)

  • The EP3C55U484I7N has an industrial temperature range of -40°C to 100°C, making it suitable for use in harsh environments.

  • To implement a CDC in the EP3C55U484I7N, use the Intel FPGA IP Catalog to generate a CDC module, or use a synchronizer circuit with a FIFO or a gray counter to transfer data between clock domains.

  • The maximum frequency achievable with the EP3C55U484I7N depends on the specific design and implementation, but Intel claims a maximum clock frequency of up to 500 MHz for this device.

  • To optimize power consumption, use the Intel Quartus II Power Analyzer to identify power-hungry components, and apply power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.

  • Yes, the EP3C55U484I7N is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its high reliability and fault-tolerant features.
