Results Overview of EP3C25Q240C8N by Intel Corporation

Distributor Offerings: (1 listing)
Number of FFF Equivalents: (0 replacements)
CAD Models: (Available)
Number of Functional Equivalents: (3 options)
Part Data Attributes: (Available)
Reference Designs: (Not Available)

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Computing and Data Storage Telecommunications

EP3C25Q240C8N Information

EP3C25Q240C8N by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Part #	Distributor	Description	Stock	Price	Buy
EP3C25Q240C8N DISTI # EP3C25Q240C8N	TME	IC: FPGA, SMD, QFP240, Number of macrocells: 24624, I/O: 148, 402MHz Min Qty: 96	0	96 $117.0300	$117.0300	RFQ

Part Details for EP3C25Q240C8N

EP3C25Q240C8N CAD Models

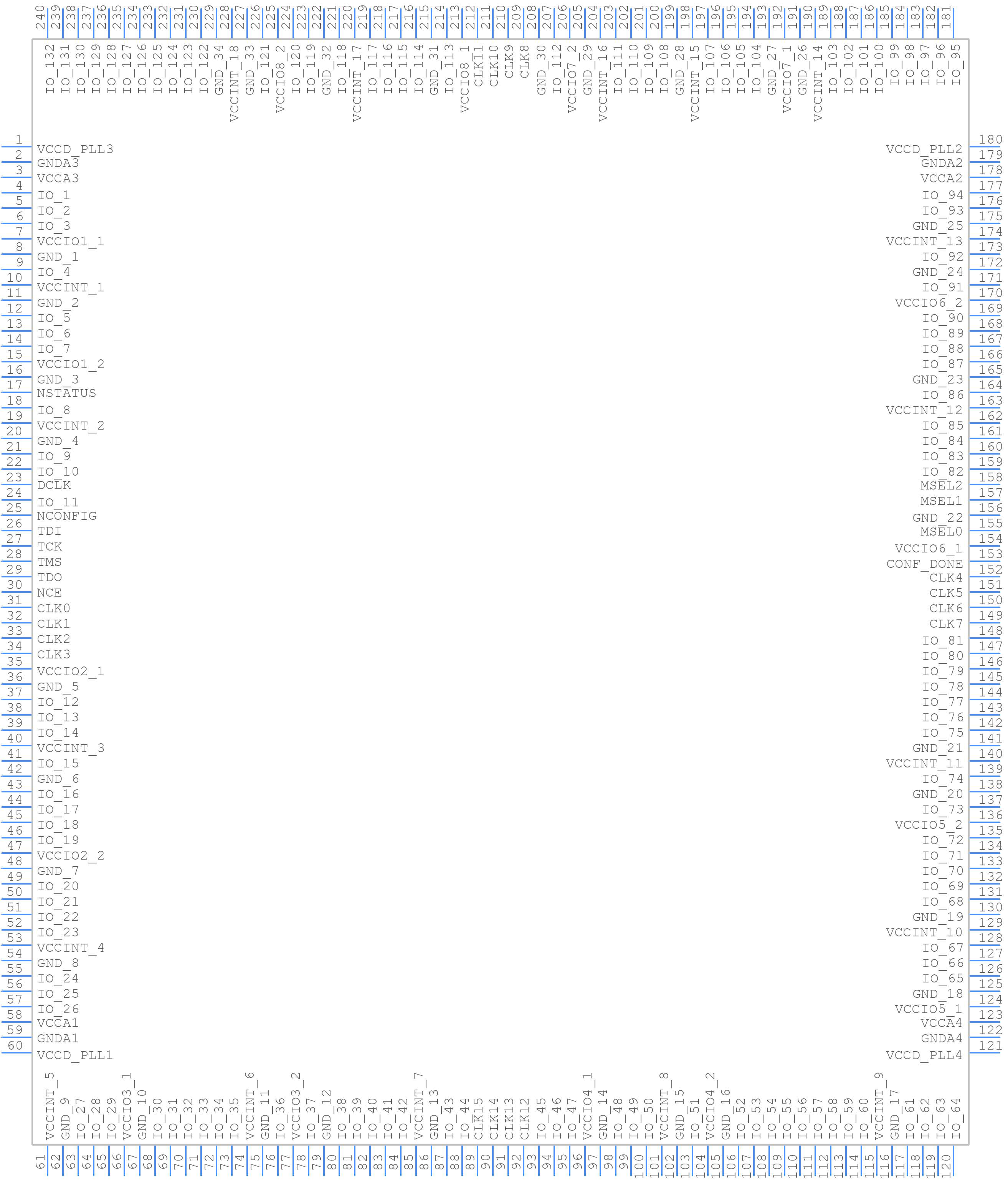

Part Symbol
Footprint

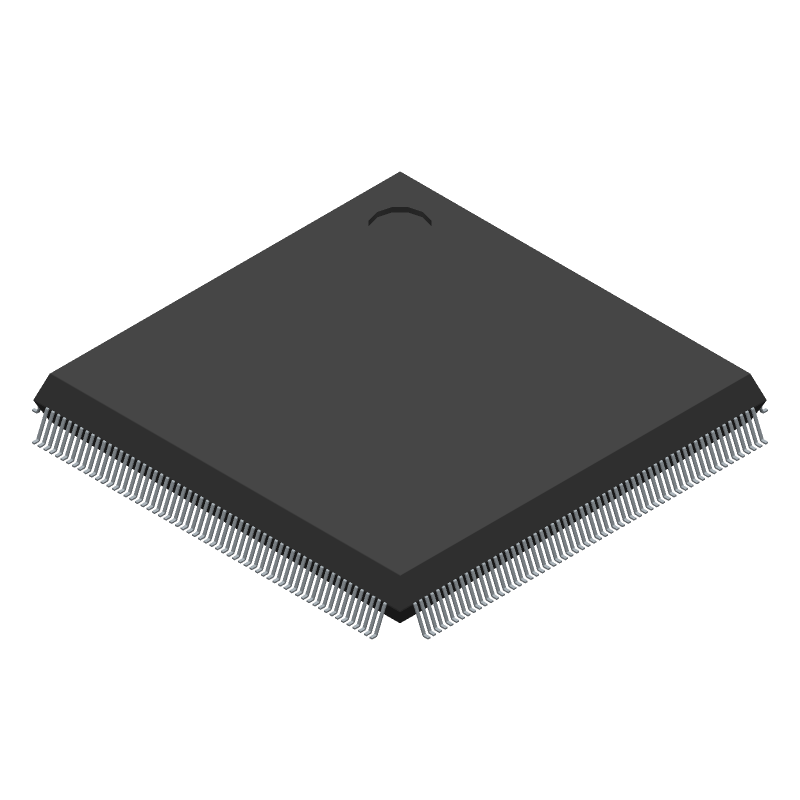

3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EP3C25Q240C8N Part Data Attributes

Parametric Data

Show differences only	EP3C25Q240C8N Intel Corporation Buy Now Datasheet	Buy Now	Compare Parts: EP3C25Q240C8N Intel Corporation Field Programmable Gate Array, 24624 CLBs, 472.5MHz, 24624-Cell, CMOS, PQFP240, 34.60 X 34.60 MM, 4.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, LEAD FREE, QFP-240

Rohs Code	Yes
Part Life Cycle Code	Active
Ihs Manufacturer	INTEL CORP
Package Description	34.60 X 34.60 MM, 4.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, LEAD FREE, QFP-240
Reach Compliance Code	compliant
HTS Code	8542.39.00.01
Samacsys Manufacturer	Intel
Clock Frequency-Max	472.5 MHz
JESD-30 Code	R-PQFP-G240
JESD-609 Code	e3
Length	32 mm
Moisture Sensitivity Level	3
Number of CLBs	24624
Number of Inputs	148
Number of Logic Cells	24624
Number of Outputs	148
Number of Terminals	240
Operating Temperature-Max	85 °C
Operating Temperature-Min
Organization	24624 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP240,1.3SQ,20
Package Shape	RECTANGULAR
Package Style	FLATPACK, FINE PITCH
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	4.1 mm
Supply Voltage-Max	1.25 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	32 mm

Alternate Parts for EP3C25Q240C8N

This table gives cross-reference parts and alternative options found for EP3C25Q240C8N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EP3C25Q240C8N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
EP3C25Q240C8N	Altera Corporation	$53.3700	Field Programmable Gate Array, 24624 CLBs, 472.5MHz, 24624-Cell, CMOS, PQFP240, 34.60 X 34.60 MM, 4.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, LEAD FREE, QFP-240	EP3C25Q240C8N vs EP3C25Q240C8N
EP3C25Q240C8	Intel Corporation	Check for Price	Field Programmable Gate Array, 24624 CLBs, 472.5MHz, 24624-Cell, CMOS, PQFP240, 34.60 X 34.60 MM, 4.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, QFP-240	EP3C25Q240C8N vs EP3C25Q240C8
EP3C25Q240C8	Altera Corporation	Check for Price	Field Programmable Gate Array, 24624 CLBs, 472.5MHz, 24624-Cell, CMOS, PQFP240, 34.60 X 34.60 MM, 4.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, QFP-240	EP3C25Q240C8N vs EP3C25Q240C8

EP3C25Q240C8N Frequently Asked Questions (FAQ)

The maximum operating temperature range for the EP3C25Q240C8N is -40°C to 100°C.
To implement a clock tree in the EP3C25Q240C8N, use the Quartus II software to create a clock network that meets the device's clocking requirements. The software will help you optimize the clock tree for your specific design.
The maximum frequency of the EP3C25Q240C8N is 500 MHz.
To optimize power consumption in the EP3C25Q240C8N, use the Quartus II software to enable power-saving features such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
The maximum current rating for the EP3C25Q240C8N is 1.5 A.
