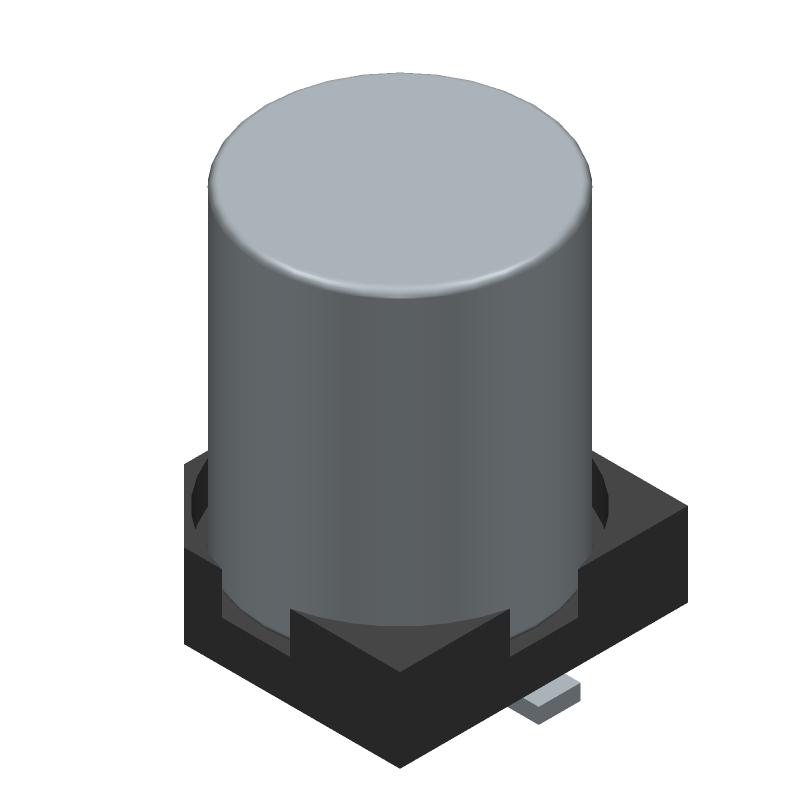

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EMZF350ADA100ME73G by Chemi-Con
Results Overview of EMZF350ADA100ME73G by Chemi-Con
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Telecommunications
Automotive
EMZF350ADA100ME73G Information
EMZF350ADA100ME73G by Chemi-Con is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Part Details for EMZF350ADA100ME73G
EMZF350ADA100ME73G CAD Models
EMZF350ADA100ME73G Part Data Attributes
|
|
EMZF350ADA100ME73G
Chemi-Con
Buy Now
Datasheet
|
Compare Parts:
EMZF350ADA100ME73G
Chemi-Con
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2121, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NIPPON CHEMI-CON CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Chemi-Con | |
| Capacitance | 10 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 7 mm | |
| Leakage Current | 0.0035 mA | |
| Length | 5.9 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 35 V | |
| Ripple Current | 95 mA | |
| Size Code | 2121 | |
| Surface Mount | YES | |
| Tan Delta | 0.14 | |
| Terminal Shape | FLAT | |
| Width | 5.3 mm |
Alternate Parts for EMZF350ADA100ME73G
This table gives cross-reference parts and alternative options found for EMZF350ADA100ME73G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EMZF350ADA100ME73G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| EMZF350ARA100ME73G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 10uF, 2321 | EMZF350ADA100ME73G vs EMZF350ARA100ME73G |
| EMLF350ARA100ME73G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 10uF, 2321 | EMZF350ADA100ME73G vs EMLF350ARA100ME73G |
| EMZE350ARA100ME73G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 10uF, 2321, | EMZF350ADA100ME73G vs EMZE350ARA100ME73G |
| EMLF350ADA100ME73G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2121, ROHS COMPLIANT | EMZF350ADA100ME73G vs EMLF350ADA100ME73G |
| EMZE350ADA100ME73G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2121, CHIP, ROHS COMPLIANT | EMZF350ADA100ME73G vs EMZE350ADA100ME73G |
