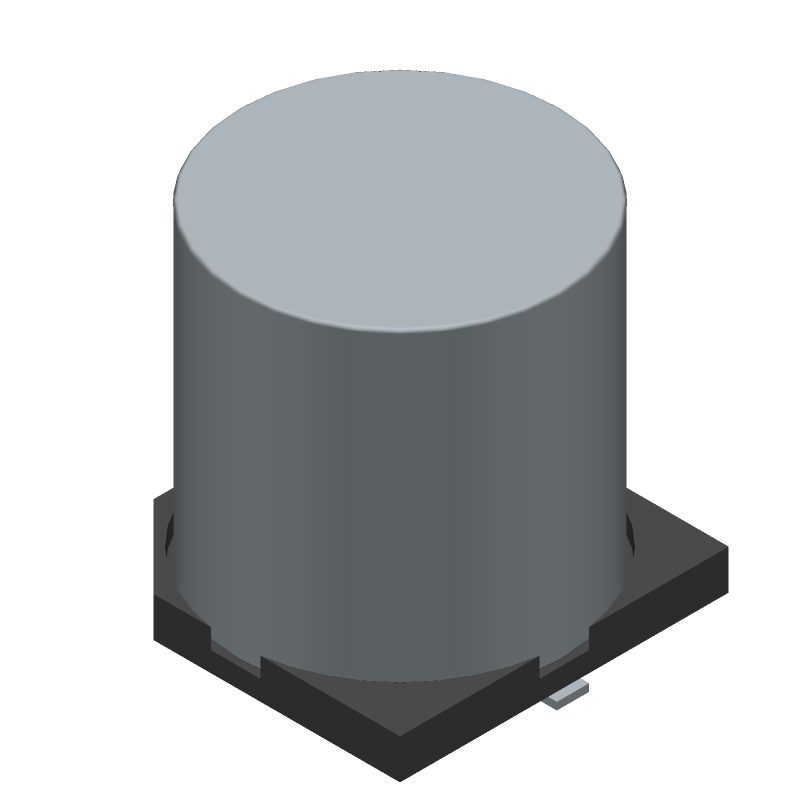

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EMVH101ARA470MKE0S by Chemi-Con
Results Overview of EMVH101ARA470MKE0S by Chemi-Con
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
EMVH101ARA470MKE0S Information
EMVH101ARA470MKE0S by Chemi-Con is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EMVH101ARA470MKE0S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87563206
|
Verical | Cap Aluminum Lytic 47uF 100V 20%( 12.5 X 13.5mm) SMD 0.33 Ohm 450mA 5000h 125°C Automotive AEC-Q200 T/R Min Qty: 58 Package Multiple: 1 Date Code: 2312 | Americas - 4853 |
|
$0.6030 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, 5451 | 461 |
|
$0.7380 / $1.8450 | Buy Now |
|
DISTI #
EMVH101ARA470MKE0S
|
TTI | Aluminum Electrolytic Capacitors - SMD 100VDC 47uF Tol 20% 12.5X13.5mm AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 250 Package Multiple: 250 Container: Reel |
Americas - 6250 In Stock |
|
$0.5470 / $0.6310 | Buy Now |
Part Details for EMVH101ARA470MKE0S
EMVH101ARA470MKE0S CAD Models
EMVH101ARA470MKE0S Part Data Attributes
|
|
EMVH101ARA470MKE0S
Chemi-Con
Buy Now
Datasheet
|
Compare Parts:
EMVH101ARA470MKE0S
Chemi-Con
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 5151, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NIPPON CHEMI-CON CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Samacsys Manufacturer | Chemi-Con | |
| Additional Feature | ESR IS MEASURED AT 100KHZ | |
| Capacitance | 47 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 12.5 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| ESR | 330 mΩ | |
| Height | 13.5 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.141 mA | |
| Length | 13 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 100 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 180 mA | |
| Size Code | 5151 | |
| Surface Mount | YES | |
| Tan Delta | 0.1 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | FLAT | |
| Width | 13 mm |
EMVH101ARA470MKE0S Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, to prevent damage to the capacitor.
-
Yes, the EMVH101ARA470MKE0S capacitor is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The ESR of the EMVH101ARA470MKE0S capacitor is typically around 0.15 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
-
Yes, the EMVH101ARA470MKE0S capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude.
-
The shelf life of the EMVH101ARA470MKE0S capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions.
