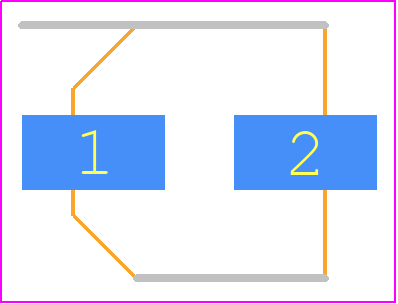

Footprint
-

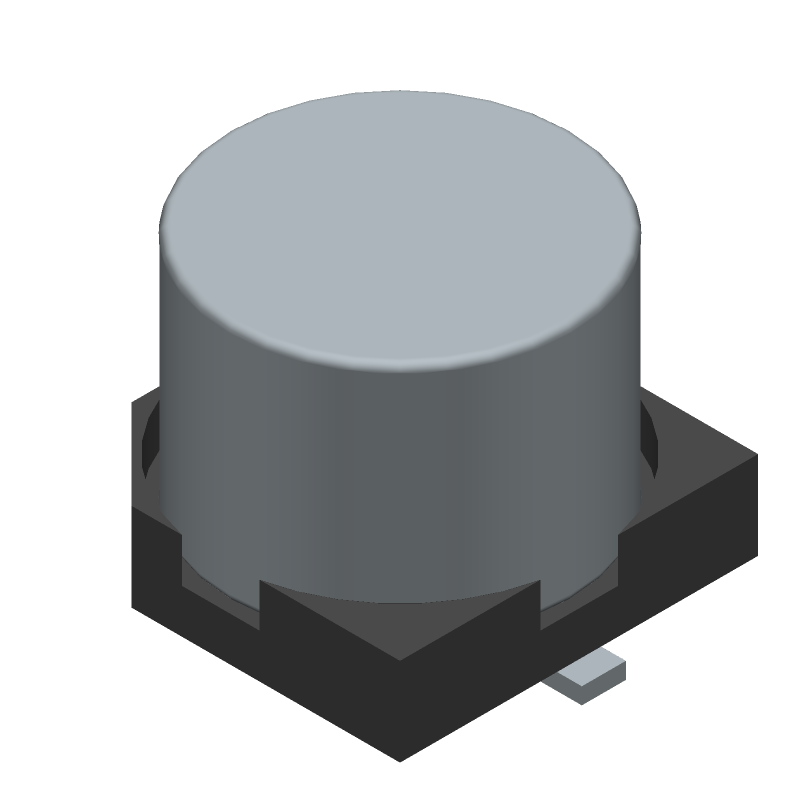

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EMVA6R3ADA221MF55G by Chemi-Con
Results Overview of EMVA6R3ADA221MF55G by Chemi-Con
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
EMVA6R3ADA221MF55G Information
EMVA6R3ADA221MF55G by Chemi-Con is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EMVA6R3ADA221MF55G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 834 |
|
RFQ |
Part Details for EMVA6R3ADA221MF55G
EMVA6R3ADA221MF55G CAD Models
EMVA6R3ADA221MF55G Part Data Attributes
|
|
EMVA6R3ADA221MF55G
Chemi-Con
Buy Now
Datasheet
|
Compare Parts:
EMVA6R3ADA221MF55G
Chemi-Con
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 2626, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NIPPON CHEMI-CON CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Chemi-Con | |
| Capacitance | 220 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 5.2 mm | |
| JESD-609 Code | e6 | |
| Leakage Current | 0.01386 mA | |
| Length | 7.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TRAY | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Ripple Current | 88 mA | |
| Size Code | 2626 | |
| Surface Mount | YES | |
| Tan Delta | 0.35 | |
| Terminal Finish | Tin/Bismuth (Sn/Bi) | |
| Terminal Shape | FLAT | |
| Width | 6.6 mm |
