EHDB9FFB Information
EHDB9FFB by Switchcraft Conxall is a Rectangular Adapter.
Rectangular Adapters are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for EHDB9FFB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03M3269
|
Newark | Adapter, D-Sub, 9Pos, Rcpt-Rcpt, D Sub Connector A:Standard D Sub, Convert From Gender:Receptacle, Convert From Positions:9Positions, D Sub Connector B:Standard D Sub, Convert To Gender:Receptacle, Convert To Positions:9Positions Rohs Compliant: Yes |Switchcraft/conxall EHDB9FFB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 141 |
|
$12.7000 / $18.9000 | Buy Now |
|
DISTI #
SC2031-ND
|
DigiKey | DSUB GENDER CHANGER DB9F DB9F Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
144 In Stock |
|
$13.0702 / $20.2700 | Buy Now |
|
DISTI #
502-EHDB9FFB
|
Mouser Electronics | D-Sub Adapters & Gender Changers EH SERIES DB9 FEM-FE RoHS: Compliant | 132 |
|
$13.0700 / $19.1500 | Buy Now |
|
DISTI #
70214484
|
RS | EH Series Panel Mount D-sub Connector Kit Female to Female 9 Way 1.5A Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 556 |
|
$15.9200 / $20.6800 | Buy Now |
|
|
Onlinecomponents.com | D Sub Connector Adapter - Standard D Sub - Receptacle - 9 Positions - Standard D Sub - Receptacle. RoHS: Compliant |
29 In Stock |
|
$12.1900 / $20.1600 | Buy Now |
|
DISTI #
51689591
|
Verical | Conn D-Sub Adapter SKT/SKT 9/9 POS ST Panel Mount 1 Port Bulk Min Qty: 3 Package Multiple: 1 Date Code: 1905 | Americas - 29 |
|
$16.4060 / $26.2080 | Buy Now |
|
|
Quest Components | RECTANGULAR CONNECTOR ADAPTER, 9 CONTACTS(SIDE1), 9 CONTACTS(SIDE2), FEMALE-FEMALE | 2 |
|
Buy Now | |
|
DISTI #
EHDB9FFB
|
TTI | D-Sub Adapters & Gender Changers EH SERIES DB9 FEM-FE RoHS: Compliant pbFree: Pb-Free Min Qty: 1 Package Multiple: 1 Container: Kit |
Americas - 110 In Stock |
|
$12.5600 / $18.1100 | Buy Now |
|
DISTI #
EHDB9FFB
|
TME | Transition: D-Sub coupler, D-Sub 9pin female,both sides, black Min Qty: 1 | 81 |
|
$14.3000 / $18.4000 | Buy Now |
|
DISTI #
EHDB9FFB
|
IBS Electronics | EH SERIES PANEL MOUNT D-SUB CONNECTOR KIT FEMALE TO FEMALE 9 WAY 1.5A | SWITCHCRAFT EHDB9FFB Min Qty: 1 Package Multiple: 1 | 29 |
|
$15.8470 / $26.2080 | Buy Now |
Part Details for EHDB9FFB
EHDB9FFB CAD Models
EHDB9FFB Part Data Attributes
|
|
EHDB9FFB
Switchcraft Conxall
Buy Now
Datasheet
|
Compare Parts:
EHDB9FFB
Switchcraft Conxall

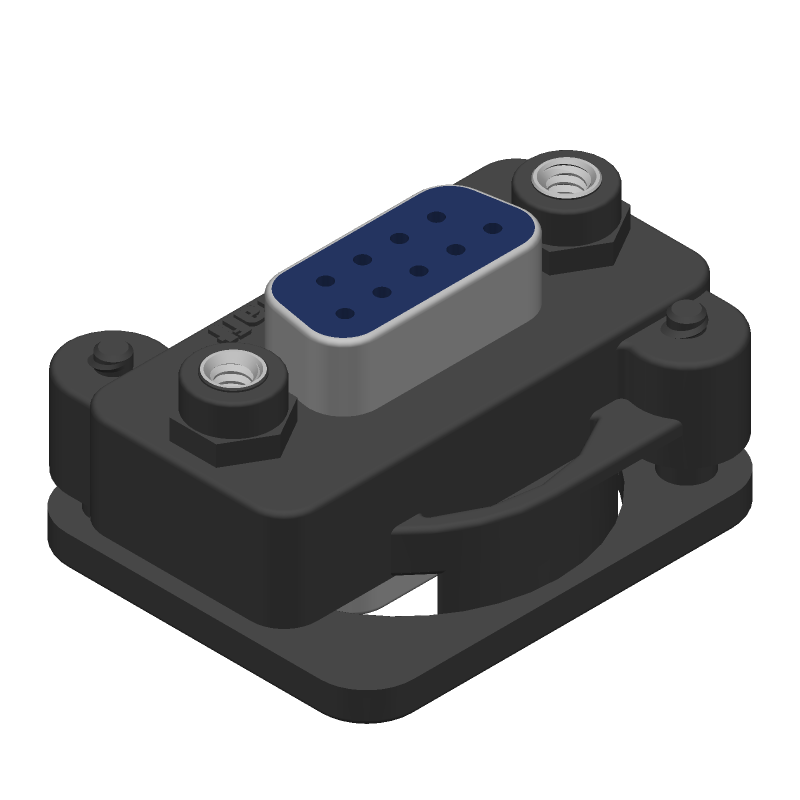

Rectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Panel Mount, Female-Female, ROHS COMPLIANT
|
