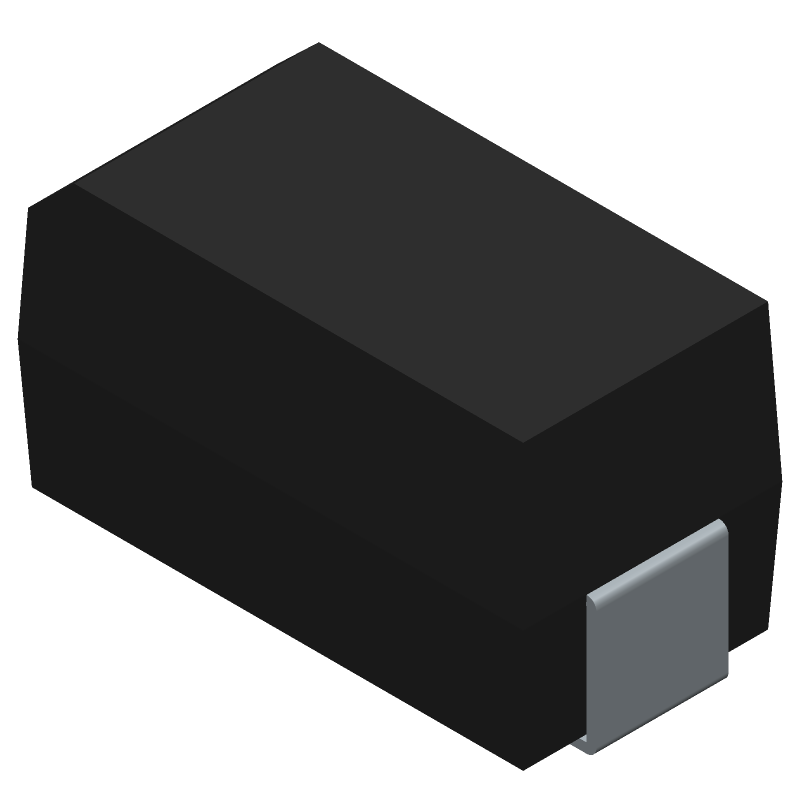

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EGF1D-E3/67A by Vishay Intertechnologies
Results Overview of EGF1D-E3/67A by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
EGF1D-E3/67A Information
EGF1D-E3/67A by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for EGF1D-E3/67A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
EGF1D-E3/67A
|
Avnet Americas | 1A,200V,50NS,UF SUPERECT,SMD - Tape and Reel (Alt: EGF1D-E3/67A) RoHS: Compliant Min Qty: 6000 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.2000 / $0.2125 | Buy Now |
|
DISTI #
625-EGF1D-E3
|
Mouser Electronics | Rectifiers 1.0 Amp 200V 50ns RoHS: Compliant | 6434 |
|
$0.2200 / $0.3300 | Buy Now |
|
DISTI #
V72:2272_18776476
|
Arrow Electronics | Diode Switching 200V 1A 2-Pin DO-214BA T/R Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2219 Container: Cut Strips | Americas - 5569 |
|
$0.2180 / $0.3274 | Buy Now |
|
DISTI #
EGF1D-E3/67A
|
TTI | Rectifiers 1.0 Amp 200V 50ns RoHS: Compliant pbFree: Pb-Free Min Qty: 1500 Package Multiple: 1500 Container: Reel |
Americas - 6000 In Stock |
|
$0.2040 | Buy Now |
|
DISTI #
EGF1D-E3/67A
|
TME | Diode: rectifying, SMD, 200V, 1A, 50ns, DO214BA, Ufmax: 1V, Ifsm: 30A Min Qty: 1 | 0 |
|
$0.3300 / $0.9330 | RFQ |
|
DISTI #
EGF1D-E3/67A
|
IBS Electronics | RECTIFIER DIODE 1 PHASE 1 ELEMENT 1A 200V V(RRM) SILICON DO-214BA Min Qty: 6000 Package Multiple: 1 | 0 |
|
$0.2795 / $0.2990 | Buy Now |
|
DISTI #
EGF1D-E3/67A
|
EBV Elektronik | 1A200V50NSUF SUPERECTSMD (Alt: EGF1D-E3/67A) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 1V1A 50ns 1A 200V DO-214BA Fast Recovery / High Efficiency Diodes ROHS | 3 |
|
$0.2882 / $0.5447 | Buy Now |
Part Details for EGF1D-E3/67A
EGF1D-E3/67A CAD Models
EGF1D-E3/67A Part Data Attributes
|
|
EGF1D-E3/67A
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
EGF1D-E3/67A
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 1A, 200V V(RRM), Silicon, DO-214BA,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY | |
| Application | EFFICIENCY | |
| Breakdown Voltage-Min | 200 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JEDEC-95 Code | DO-214BA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.05 µs | |
| Reverse Test Voltage | 200 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
EGF1D-E3/67A Frequently Asked Questions (FAQ)
-
The recommended storage condition for EGF1D-E3/67A is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
Yes, EGF1D-E3/67A is designed for high-reliability applications, including aerospace, defense, and industrial control systems, due to its high-quality materials and manufacturing process.
-
EGF1D-E3/67A is designed to withstand power surges and spikes up to 10 kV, making it suitable for use in harsh electrical environments.
-
Yes, EGF1D-E3/67A is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.
-
The typical lead time for EGF1D-E3/67A is 8-12 weeks, depending on the quantity and availability of the component.
