EEUFR1J820B Information
EEUFR1J820B by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFR1J820B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62W8089
|
Newark | Cap, Alu Elec, 82Uf, 63V, Radial, Capacitance:82Μf, Voltage(Dc):63V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:6000 Hours @ 105°C, Polarity:Polar, Capacitor Case/Package:Radial Leaded Rohs Compliant: Yes |Panasonic EEUFR1J820B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Ammo Pack | 1258 |
|
$0.1370 | Buy Now |
|
DISTI #
EEUFR1J820B
|
TME | Capacitor: electrolytic, low ESR, THT, 82uF, 63VDC, Ø8x11.5mm, ±20% Min Qty: 1 | 554 |
|
$0.1180 / $0.3340 | Buy Now |
|
DISTI #
EEUFR1J820B
|
Avnet Abacus | - Tape and Reel (Alt: EEUFR1J820B) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for EEUFR1J820B

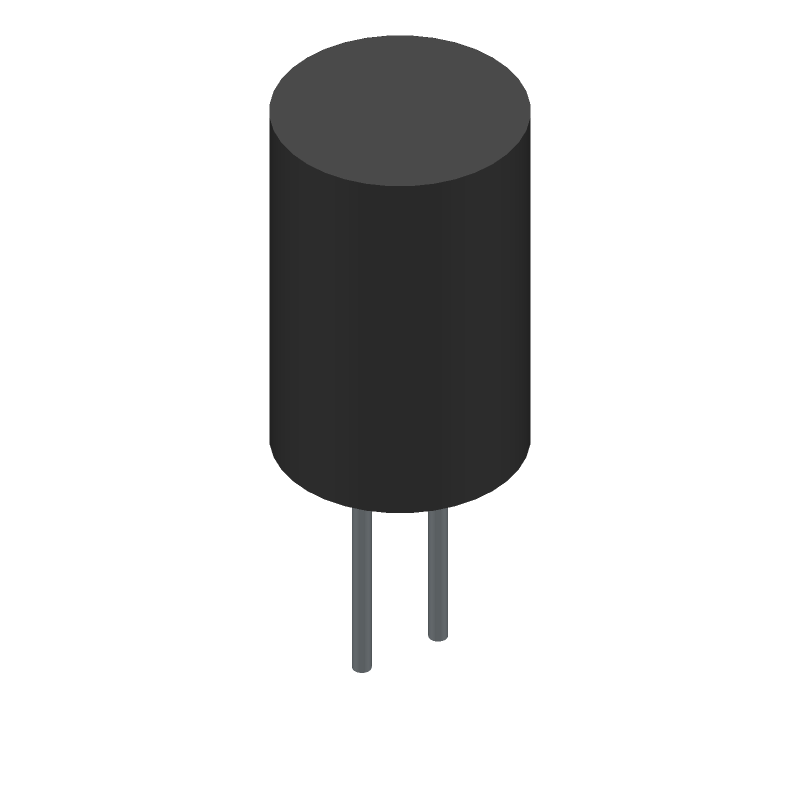

EEUFR1J820B CAD Models
EEUFR1J820B Part Data Attributes
|
|
EEUFR1J820B
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFR1J820B
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 82uF,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 82 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 8 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.05166 mA | |
| Length | 11.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Radial | |
| Packing Method | AMMO PACK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 63 V | |
| Ripple Current | 396.2 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.09 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE |
Alternate Parts for EEUFR1J820B
This table gives cross-reference parts and alternative options found for EEUFR1J820B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEUFR1J820B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 63ZLH82MKC8X11.5 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | EEUFR1J820B vs 63ZLH82MKC8X11.5 |
| NRZJ820M63V8X11.5TBF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | EEUFR1J820B vs NRZJ820M63V8X11.5TBF |
| NRSH820M63V8X11.5SP7.5LLF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 82uF, | EEUFR1J820B vs NRSH820M63V8X11.5SP7.5LLF |
| 63ZLH82MCC8X11.5 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | EEUFR1J820B vs 63ZLH82MCC8X11.5 |
| NRSH820M63V8X11.5TBSTNF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 82uF, | EEUFR1J820B vs NRSH820M63V8X11.5TBSTNF |
| 63ZLH82MCA8X11.5 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | EEUFR1J820B vs 63ZLH82MCA8X11.5 |
| 63ZLH82MEFCCC8X11.5 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | EEUFR1J820B vs 63ZLH82MEFCCC8X11.5 |
| NRSH820M63V8X11.5SPF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 82uF, | EEUFR1J820B vs NRSH820M63V8X11.5SPF |
| NRZJ820M63V8X11.5TBYF | NIC Components Corp | Check for Price | Fixed Capacitor, | EEUFR1J820B vs NRZJ820M63V8X11.5TBYF |
| NRZJ820M63V8X11.5SP7.5LLF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 82uF, | EEUFR1J820B vs NRZJ820M63V8X11.5SP7.5LLF |
