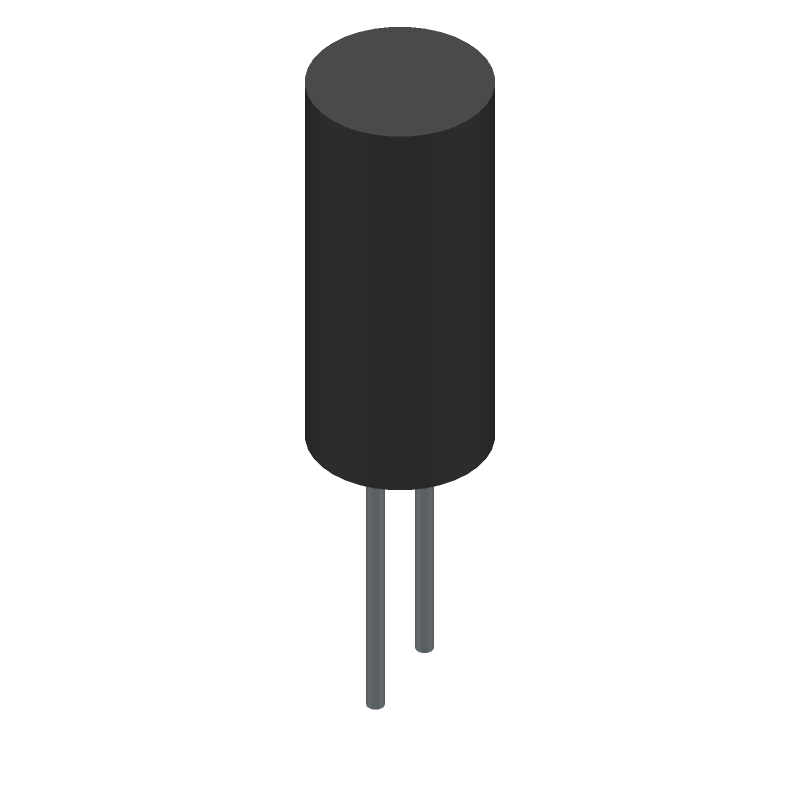

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEUFM1H220 by Panasonic Electronic Components
Results Overview of EEUFM1H220 by Panasonic Electronic Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EEUFM1H220 Information
EEUFM1H220 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFM1H220
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
17T5138
|
Newark | Aluminum Electrolytic Capacitor, 22Uf, 50V, 20%, Radial, Capacitance:22Μf, Voltage(Dc):50V, Capacitance Tolerance:± 20%, Capacitor Terminals:Radial Leaded, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Lead Spacing:2Mm Rohs Compliant: Yes |Panasonic EEUFM1H220 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 23 |
|
$0.0790 / $0.2200 | Buy Now |
|
DISTI #
70068579
|
RS | Capacitor, Aluminum Electrolytic, Cap 22 uF, Tol 20%, Vol-Rtg 50 VDC, Radial Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1970 / $0.2340 | RFQ |
|
DISTI #
EEUFM1H220
|
TME | Capacitor: electrolytic, low ESR, THT, 22uF, 50VDC, Ø5x11mm, ±20% Min Qty: 1 | 1815 |
|
$0.0508 / $0.2948 | Buy Now |
|
DISTI #
EEUFM1H220
|
Avnet Abacus | Aluminum Electrolytic Capacitor 22 uF 50 V 20 2000 hours 105C Radial Leaded (Alt: EEUFM1H220) RoHS: Compliant Min Qty: 6000 Package Multiple: 200 Lead time: 23 Weeks, 0 Days | Abacus - 21800 |
|
Buy Now | |
|
|
New Advantage Corporation | Cap Alu Radial 22uF 20% 50V 105C 2000hrs 250mA 2mm 5x11 Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 200 | 17400 |
|
$0.0649 / $0.0702 | Buy Now |
|
|
Vyrian | Capacitors | 8176 |
|
RFQ |
Part Details for EEUFM1H220
EEUFM1H220 CAD Models
EEUFM1H220 Part Data Attributes
|
|
EEUFM1H220
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFM1H220
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 19 Weeks, 1 Day | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 22 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 5 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.011 mA | |
| Length | 11 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Ripple Current | 137.5 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.1 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 2 mm | |
| Terminal Shape | WIRE |
Alternate Parts for EEUFM1H220
This table gives cross-reference parts and alternative options found for EEUFM1H220. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEUFM1H220, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UPB1H220MDD1FA | Nichicon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF, | EEUFM1H220 vs UPB1H220MDD1FA |
| 8220LFM0511RXN1N | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF | EEUFM1H220 vs 8220LFM0511RXN1N |
| 2220LFM0511RXN411F | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF, | EEUFM1H220 vs 2220LFM0511RXN411F |
| NRE-JL220M50V5X11F3CF | NIC Components Corp | Check for Price | CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL | EEUFM1H220 vs NRE-JL220M50V5X11F3CF |
| SE050M0022C2F10511 | YAGEO Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF, | EEUFM1H220 vs SE050M0022C2F10511 |
| 8220LFM0511RX05D | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF | EEUFM1H220 vs 8220LFM0511RX05D |
| KGM1H220M0511 | Gemmy Electronics Co Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF | EEUFM1H220 vs KGM1H220M0511 |
| SJ050M0022B2F-0511 | YAGEO Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF, | EEUFM1H220 vs SJ050M0022B2F-0511 |
| 50YXH22M5X11 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF, | EEUFM1H220 vs 50YXH22M5X11 |
| 2220LFM0511RXN3110 | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF, | EEUFM1H220 vs 2220LFM0511RXN3110 |
EEUFM1H220 Frequently Asked Questions (FAQ)
-
Panasonic recommends a PCB layout with a solid ground plane, minimal lead length, and a Kelvin connection for the sense pin to minimize parasitic inductance and resistance. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
-
EEUFM1H220 has a high power density, so thermal management is crucial. Panasonic recommends using a heat sink with a thermal conductivity of at least 1 W/mK, and applying a thermal interface material with a thermal conductivity of at least 5 W/mK. The heat sink should be attached to the device using a screw or clip, and the thermal interface material should be applied between the device and the heat sink.
-
The derating curve for EEUFM1H220 is not explicitly provided in the datasheet. However, Panasonic recommends derating the device's current rating by 1.5% per degree Celsius above 50°C to ensure reliable operation. This means that at 70°C, the device's current rating should be derated by 15%.
-
EEUFM1H220 is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10 Hz to 2000 Hz. However, Panasonic recommends taking additional measures to secure the device and the PCB in high-vibration environments, such as using a vibration-dampening material or a shock-absorbing mount.
-
EEUFM1H220 is designed to operate in a humid environment, but Panasonic recommends taking precautions to prevent moisture ingress. This includes applying a conformal coating to the PCB, using a moisture-resistant encapsulant, and ensuring that the device is stored in a dry environment before assembly.
