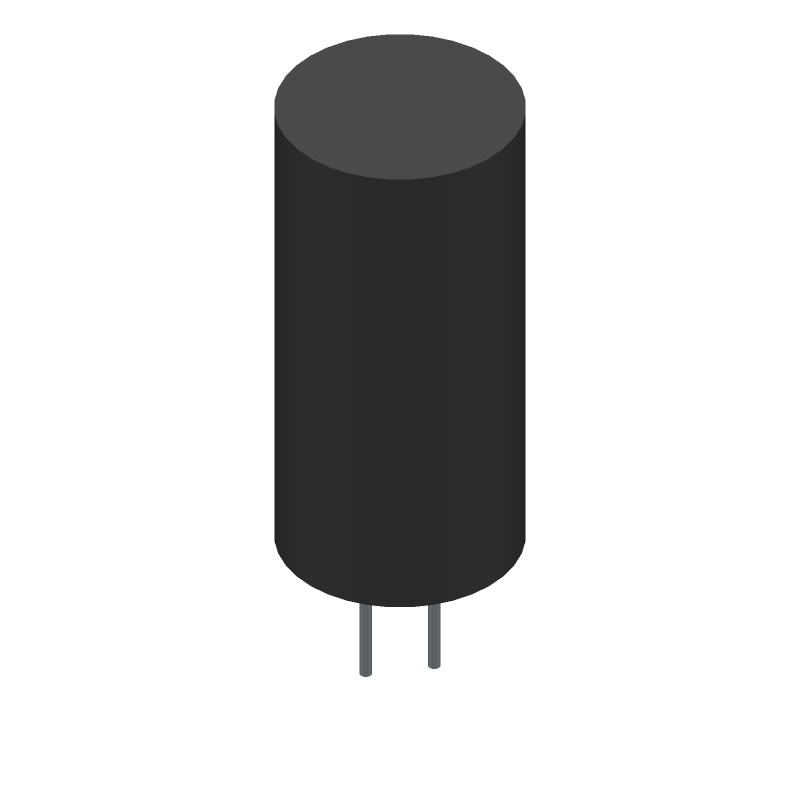

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEUFM1E152B by Panasonic Electronic Components
Results Overview of EEUFM1E152B by Panasonic Electronic Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EEUFM1E152B Information
EEUFM1E152B by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFM1E152B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
EEUFM1E152B
|
TME | Capacitor: electrolytic, low ESR, THT, 1500uF, 25VDC, Ø12.5x25mm Min Qty: 500 | 0 |
|
$0.6200 | RFQ |
|
DISTI #
EEUFM1E152B
|
Avnet Abacus | Aluminum Electrolytic Capacitor 1500 uF 25 V 20 7000 hours 105C Radial Leaded - Tape and Reel (Alt: EEUFM1E152B) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for EEUFM1E152B
EEUFM1E152B CAD Models
EEUFM1E152B Part Data Attributes
|
|
EEUFM1E152B
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFM1E152B
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 1500 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 12.5 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.375 mA | |
| Length | 25 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | AMMO PACK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Ripple Current | 2552 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.16 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE |
Alternate Parts for EEUFM1E152B
This table gives cross-reference parts and alternative options found for EEUFM1E152B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEUFM1E152B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 8152LDMAB25RXN0B | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF | EEUFM1E152B vs 8152LDMAB25RXN0B |
| 8152LDMAB25RXN4J | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF | EEUFM1E152B vs 8152LDMAB25RXN4J |
| 8152LDMAB25LWN5P | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152B vs 8152LDMAB25LWN5P |
| 1152LDMAB25RTN5110 | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,1.5MF,25VDC,20% -TOL,20% +TOL | EEUFM1E152B vs 1152LDMAB25RTN5110 |
| EKZE250EC3152MK25S | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, LEAD FREE | EEUFM1E152B vs EKZE250EC3152MK25S |
| 8152LDMAB25RTN111P | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,1.5MF,25VDC,20% -TOL,20% +TOL | EEUFM1E152B vs 8152LDMAB25RTN111P |
| 8152LDMAB25RX01B | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF | EEUFM1E152B vs 8152LDMAB25RX01B |
| 8152LDMAB25RT05B | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF | EEUFM1E152B vs 8152LDMAB25RT05B |
| 2152LDMAB25RTN7110 | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,1.5MF,25VDC,20% -TOL,20% +TOL | EEUFM1E152B vs 2152LDMAB25RTN7110 |
| 8152LDMAB25LWN1A | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152B vs 8152LDMAB25LWN1A |
