Part Details for EEUFM1E152 by Panasonic Electronic Components
Results Overview of EEUFM1E152 by Panasonic Electronic Components
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EEUFM1E152 Information
EEUFM1E152 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFM1E152
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85Y5138
|
Newark | Cap, Alu Elec, 1500Uf, 25V, Radial, Capacitance:1500Μf, Voltage(Dc):25V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:7000 Hours @ 105°C, Polarity:Polar, Capacitor Case/Package:Radial Leaded Rohs Compliant: Yes |Panasonic EEUFM1E152 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 11830 |
|
$0.4970 | Buy Now |
|
|
Quest Components | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 1500 UF, THROUGH HOLE MOUNT | 40 |
|
$0.7215 / $1.2025 | Buy Now |
|
|
Quest Components | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 1500 UF, THROUGH HOLE MOUNT (Also Known As: EEU-FM1E152) | 40 |
|
$0.7215 / $1.2025 | Buy Now |
|
|
Quest Components | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 1500 UF, THROUGH HOLE MOUNT (Also Known As: EEU-FM1E152) | 21 |
|
$0.6815 / $0.8178 | Buy Now |
|
|
Quest Components | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 1500 UF, THROUGH HOLE MOUNT | 21 |
|
$0.6815 / $0.8178 | Buy Now |
|
DISTI #
EEUFM1E152
|
TME | Capacitor: electrolytic, low ESR, THT, 1500uF, 25VDC, Ø12.5x25mm Min Qty: 2 | 73 |
|
$0.6400 / $2.8100 | Buy Now |
|
DISTI #
EEUFM1E152
|
Avnet Abacus | Aluminum Electrolytic Capacitor 1500 uF 25 V 20 7000 hours 105C Radial Leaded (Alt: EEUFM1E152) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 23 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Capacitors | 6045 |
|
RFQ |
Part Details for EEUFM1E152

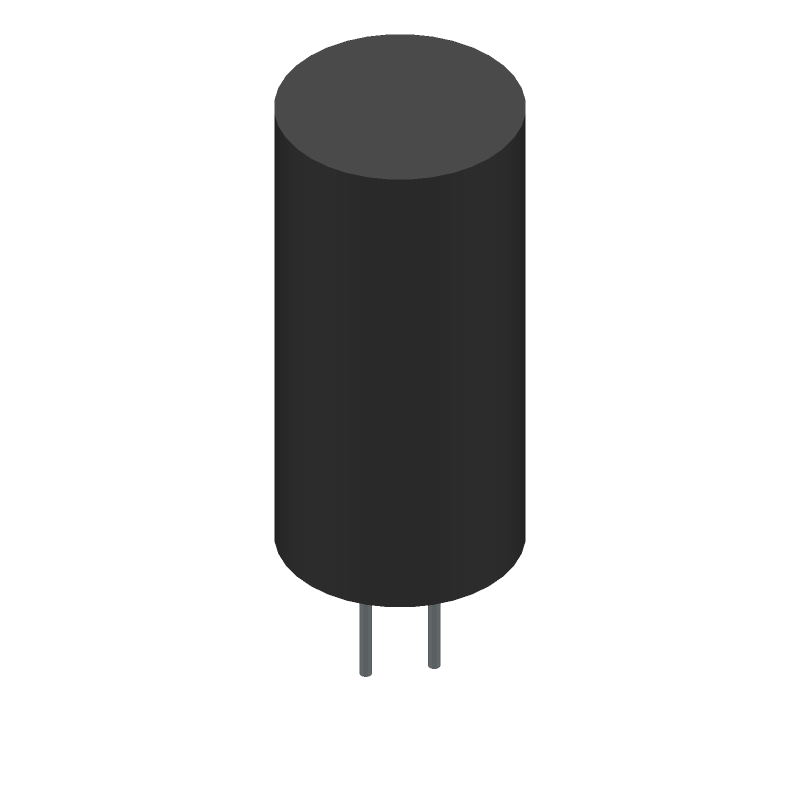

EEUFM1E152 CAD Models
EEUFM1E152 Part Data Attributes
|
|
EEUFM1E152
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFM1E152
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 1500 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 12.5 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.375 mA | |
| Length | 25 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Ripple Current | 2552 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.16 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE |
Alternate Parts for EEUFM1E152
This table gives cross-reference parts and alternative options found for EEUFM1E152. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEUFM1E152, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UHE1E152MHD1TO | Nichicon Corporation | $0.6090 | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | EEUFM1E152 vs UHE1E152MHD1TO |
| 25YXH1500MEFCRX12.5X25 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152 vs 25YXH1500MEFCRX12.5X25 |
| 8152LDMAB25RXN0J | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF | EEUFM1E152 vs 8152LDMAB25RXN0J |
| RJL-25V152MI6#-G9 | ELNA America Inc | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152 vs RJL-25V152MI6#-G9 |
| EKZE250ETA152MK25S | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, LEAD FREE | EEUFM1E152 vs EKZE250ETA152MK25S |
| 2152LDMAB25RTN011C | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,1.5MF,25VDC,20% -TOL,20% +TOL | EEUFM1E152 vs 2152LDMAB25RTN011C |
| MK1E158M12025 | Samwha Electronics | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152 vs MK1E158M12025 |
| 8152LDMAB25RXN5P | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF | EEUFM1E152 vs 8152LDMAB25RXN5P |
| RJF-25V152MI6#-GAT | ELNA America Inc | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152 vs RJF-25V152MI6#-GAT |
| NRSG152M25V12.5X25F1F | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF, | EEUFM1E152 vs NRSG152M25V12.5X25F1F |
