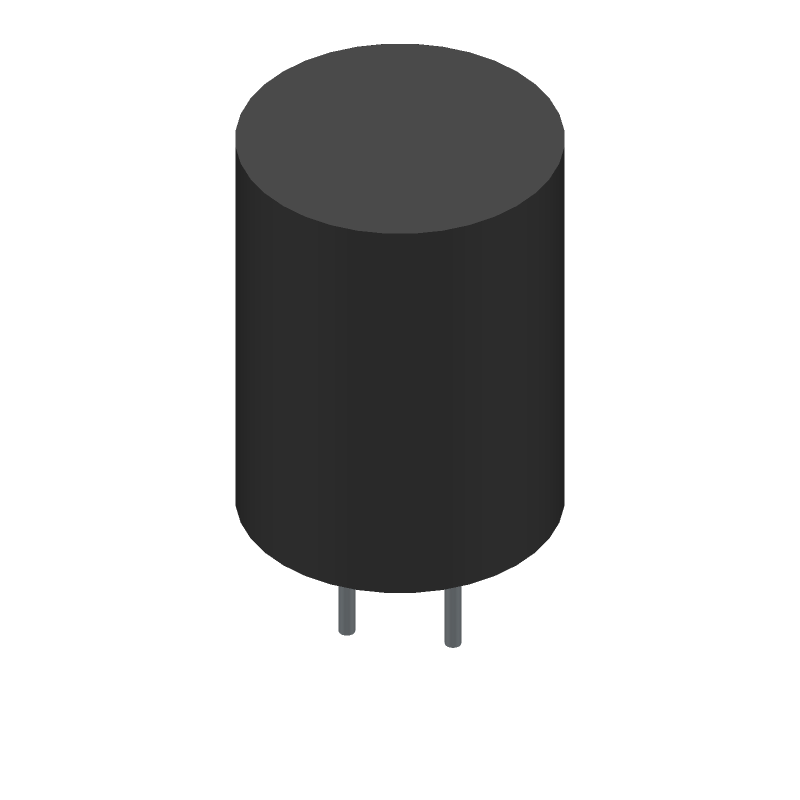

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEUFK1V182S by Panasonic Electronic Components
Results Overview of EEUFK1V182S by Panasonic Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EEUFK1V182S Information
EEUFK1V182S by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFK1V182S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62W7892
|
Newark | Aluminium Electrolytic Capacitor, Aec-Q200 Fk Series, 1800 - F, - 20%, 35 V, 16 Mm Rohs Compliant: Yes |Panasonic EEUFK1V182S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 65 |
|
$1.0500 / $2.5300 | Buy Now |
|
DISTI #
70359667
|
RS | 1800uF 35V dc ALUM Electrolytic Capacitor, FK Radial Series 5000h 16(Dia.)x20mm Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$2.1500 | RFQ |
|
DISTI #
EEUFK1V182S
|
TME | Capacitor: electrolytic, low ESR, THT, 1800uF, 35VDC, Ø16x20mm Min Qty: 500 | 0 |
|
$1.3500 | RFQ |
|
DISTI #
EEUFK1V182S
|
Avnet Abacus | Aluminum Electrolytic Capacitor 1800 uF 35 V 20 5000 hours 105C Radial Leaded (Alt: EEUFK1V182S) RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 23 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Capacitors | 769 |
|
RFQ |
Part Details for EEUFK1V182S
EEUFK1V182S CAD Models
EEUFK1V182S Part Data Attributes
|
|
EEUFK1V182S
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFK1V182S
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 1800 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 16 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.63 mA | |
| Length | 20 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 35 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 1864 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.14 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE |
EEUFK1V182S Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for EEUFK1V182S is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
-
Yes, EEUFK1V182S is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as automotive and industrial systems.
-
The EEUFK1V182S capacitor is designed to provide low impedance and high-frequency noise suppression, making it suitable for use in high-frequency circuits and noise-sensitive applications.
-
Yes, the EEUFK1V182S capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
-
The shelf life of EEUFK1V182S capacitors is typically 2 years from the date of manufacture, but it's recommended to follow proper storage and handling procedures to ensure the capacitors remain within their specifications.
