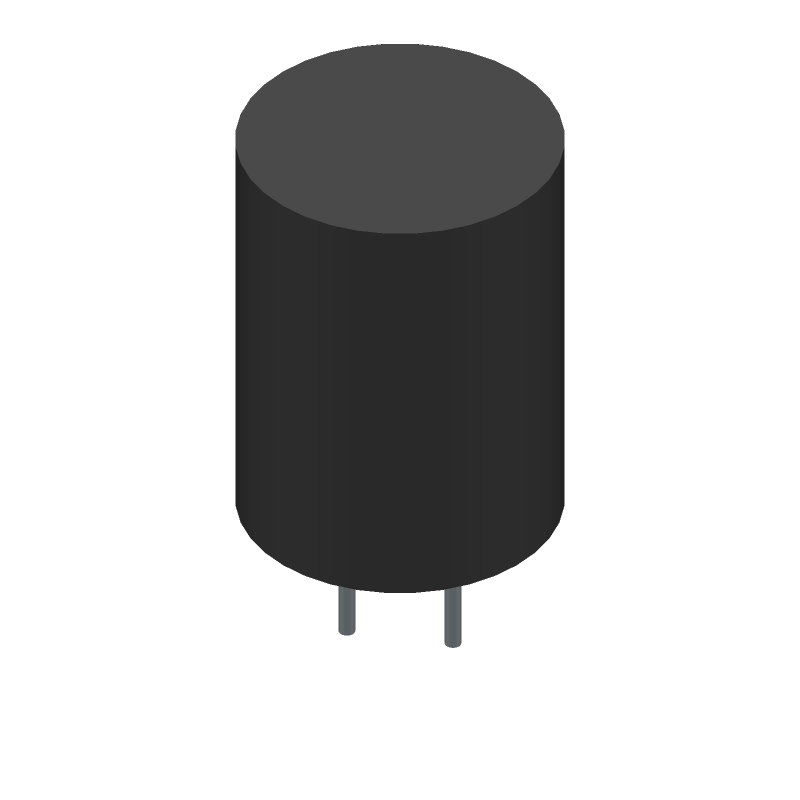

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEUFC1V102SB by Panasonic Electronic Components
Results Overview of EEUFC1V102SB by Panasonic Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
EEUFC1V102SB Information
EEUFC1V102SB by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFC1V102SB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41AH9512
|
Newark | Cap, 1000Uf, 35V, Alu Elec, Radial Rohs Compliant: Yes |Panasonic EEUFC1V102SB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 18 |
|
$0.7350 / $1.4800 | Buy Now |
|
DISTI #
EEUFC1V102SB
|
TME | Capacitor: electrolytic, low ESR, THT, 1000uF, 35VDC, Ø16x20mm Min Qty: 250 | 0 |
|
$0.8500 | RFQ |
|
DISTI #
EEUFC1V102SB
|
Avnet Abacus | Aluminum Electrolytic Capacitor 1000 uF 35 V 20 5000 hours 105C Radial Leaded - Tape and Reel (Alt: EEUFC1V102SB) RoHS: Compliant Min Qty: 500 Package Multiple: 250 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Capacitors | 228 |
|
RFQ |
Part Details for EEUFC1V102SB
EEUFC1V102SB CAD Models
EEUFC1V102SB Part Data Attributes
|
|
EEUFC1V102SB
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFC1V102SB
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 1000 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 16 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.35 mA | |
| Length | 20 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | AMMO PACK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 35 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 1653.75 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.14 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE |
EEUFC1V102SB Frequently Asked Questions (FAQ)
-
The recommended land pattern for EEUFC1V102SB can be found in the Panasonic Electronic Components' recommended land pattern document or by contacting their technical support. The land pattern should ensure good solderability and minimize the risk of solder bridging.
-
To prevent damage, handle the EEUFC1V102SB by the body, avoid touching the leads or components, and use an anti-static wrist strap or mat. Also, ensure the assembly area is clean and free from debris.
-
The maximum allowable voltage derating for EEUFC1V102SB is typically 80% of the rated voltage. However, it's recommended to consult with Panasonic Electronic Components' technical support or application notes for specific derating guidelines.
-
EEUFC1V102SB is rated for operation up to 125°C. However, it's essential to consider the derating curves and ensure the capacitor's operating conditions are within the specified limits. Consult with Panasonic Electronic Components' technical support for specific guidance on high-temperature applications.
-
Store EEUFC1V102SB in a cool, dry place, away from direct sunlight and moisture. Avoid storing them in close proximity to strong electromagnetic fields or radiation sources. Follow the storage guidelines provided by Panasonic Electronic Components or industry standards such as IPC-A-610.
