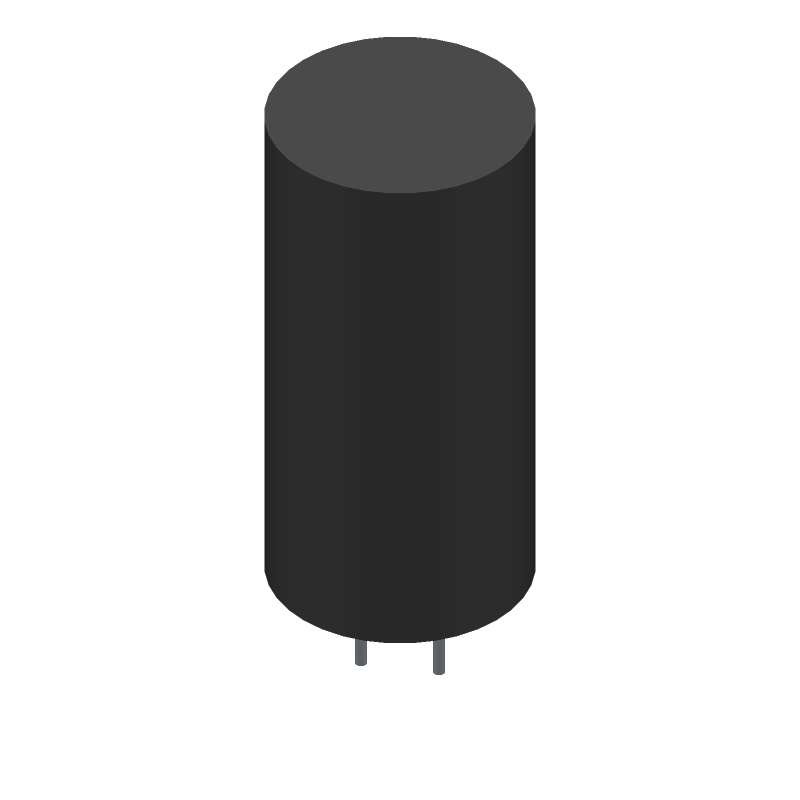

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEUFC1E472 by Panasonic Electronic Components
Results Overview of EEUFC1E472 by Panasonic Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
EEUFC1E472 Information
EEUFC1E472 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFC1E472
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83AK4208
|
Newark | Cap, Alu Elec, 4700Uf, 25V, Radial, Capacitance:4700Μf, Voltage(Dc):25V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:5000 Hours @ 105°C, Polarity:Polar, Capacitor Case/Package:Radial Leaded Rohs Compliant: Yes |Panasonic EEUFC1E472 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2280 |
|
$1.5300 | Buy Now |
|
DISTI #
70068469
|
RS | Capacitor, Aluminum Electrolytic, Al Electrolytic Cap, 4700uF 25V 105Deg C Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$2.0300 / $2.3900 | RFQ |
|
DISTI #
EEUFC1E472
|
TME | Capacitor: electrolytic, low ESR, THT, 4700uF, 25VDC, Ø18x35.5mm Min Qty: 1 | 105 |
|
$1.6000 / $2.6200 | Buy Now |
|
DISTI #
EEUFC1E472
|
Avnet Abacus | Aluminum Electrolytic Capacitor 4700 uF 25 V 20 5000 hours 105C Radial Leaded (Alt: EEUFC1E472) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 23 Weeks, 0 Days | Abacus - 1850 |
|
Buy Now | |
|
|
New Advantage Corporation | Cap Alu Radial 4700uF 20% 25V 105C 5000hrs 3680mA 7.5mm 18x35.5 Auto Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 50 | 2650 |
|
$2.9200 / $3.1600 | Buy Now |
Part Details for EEUFC1E472
EEUFC1E472 CAD Models
EEUFC1E472 Part Data Attributes
|
|
EEUFC1E472
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFC1E472
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 4700 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 18 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e2 | |
| Leakage Current | 1.175 mA | |
| Length | 35.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 3128 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.22 | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE |
EEUFC1E472 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for EEUFC1E472 is between 250°C to 260°C for a maximum of 5 seconds.
-
Yes, EEUFC1E472 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The ESR of EEUFC1E472 is approximately 0.015 ohms at 100 kHz.
-
Yes, EEUFC1E472 is designed to operate in high-temperature environments, with a maximum operating temperature of 125°C.
-
Yes, EEUFC1E472 meets the requirements for automotive applications, including AEC-Q200 qualification.
