Capacitors / Fixed Capacitors / EEUFC1E221
Datasheets
EEUFC1E221 by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for EEUFC1E221 by Panasonic Electronic Components

Results Overview of EEUFC1E221 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare

EEUFC1E221 Information

EEUFC1E221 by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEUFC1E221

Part # Distributor Description Stock Price Buy
DISTI # 62W7738
Newark Aluminium Electrolytic Capacitor, Aec-Q200 Fc Series, 220 - F, - 20%, 25 V, 8 Mm, Radial Leaded Rohs Compliant: Yes |Panasonic EEUFC1E221 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 18232
  • 1 $0.4120
  • 10 $0.2200
  • 25 $0.2010
  • 50 $0.1820
  • 100 $0.1630
  • 500 $0.1530
  • 1,000 $0.1430
$0.1430 / $0.4120 Buy Now
DISTI # 70068462
RS Capacitor, Aluminum Electrolytic, Al Electrolytic Cap, 220uF 25V 105Deg C Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.3620
  • 50 $0.3370
  • 100 $0.3260
$0.3260 / $0.3620 RFQ
Bristol Electronics   67
RFQ
Quest Components CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 220 uF, THROUGH HOLE MOUNT 4000
  • 1 $1.0000
  • 1,334 $0.2000
  • 4,001 $0.1750
$0.1750 / $1.0000 Buy Now
Quest Components CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 220 uF, THROUGH HOLE MOUNT (Also Known As: EEU-FC1E221) 4000
  • 1 $1.0000
  • 1,334 $0.2000
  • 4,001 $0.1750
$0.1750 / $1.0000 Buy Now
Quest Components CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 220 uF, THROUGH HOLE MOUNT (Also Known As: EEU-FC1E221) 96
  • 1 $0.2385
  • 22 $0.1988
  • 51 $0.1590
$0.1590 / $0.2385 Buy Now
Quest Components CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 220 uF, THROUGH HOLE MOUNT 96
  • 1 $0.2385
  • 22 $0.1988
  • 51 $0.1590
$0.1590 / $0.2385 Buy Now
DISTI # EEUFC1E221
TME Capacitor: electrolytic, low ESR, THT, 220uF, 25VDC, Ø8x11.5mm Min Qty: 5 3361
  • 5 $0.3590
  • 20 $0.2260
  • 100 $0.1640
  • 200 $0.1540
  • 400 $0.1500
  • 600 $0.1470
  • 1,000 $0.1450
  • 2,000 $0.1430
  • 4,000 $0.1420
  • 8,000 $0.1410
$0.1410 / $0.3590 Buy Now
DISTI # KEL24781
Rutronik FC 220uF 25V 20% 8x11/3,5 RoHS: Compliant Min Qty: 200 Package Multiple: 200 Container: Bulk Stock DE - 19200
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 200 $0.1551
  • 400 $0.1480
  • 800 $0.1408
  • 1,400 $0.1301
  • 2,600 $0.1265
$0.1265 / $0.1551 Buy Now
DISTI # EEUFC1E221
Avnet Abacus Aluminum Electrolytic Capacitor 220 uF 25 V 20 2000 hours 105C Radial Leaded (Alt: EEUFC1E221) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 23 Weeks, 0 Days Abacus - 26600
Buy Now
New Advantage Corporation Cap Alu Radial 220uF 20% 25V 105C 2000hrs 555mA 3.5mm 8x11.5 Auto Low ES RoHS: Compliant Min Qty: 1 Package Multiple: 200 22000
  • 800 $0.2868
  • 22,000 $0.2654
$0.2654 / $0.2868 Buy Now

Part Details for EEUFC1E221

EEUFC1E221 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

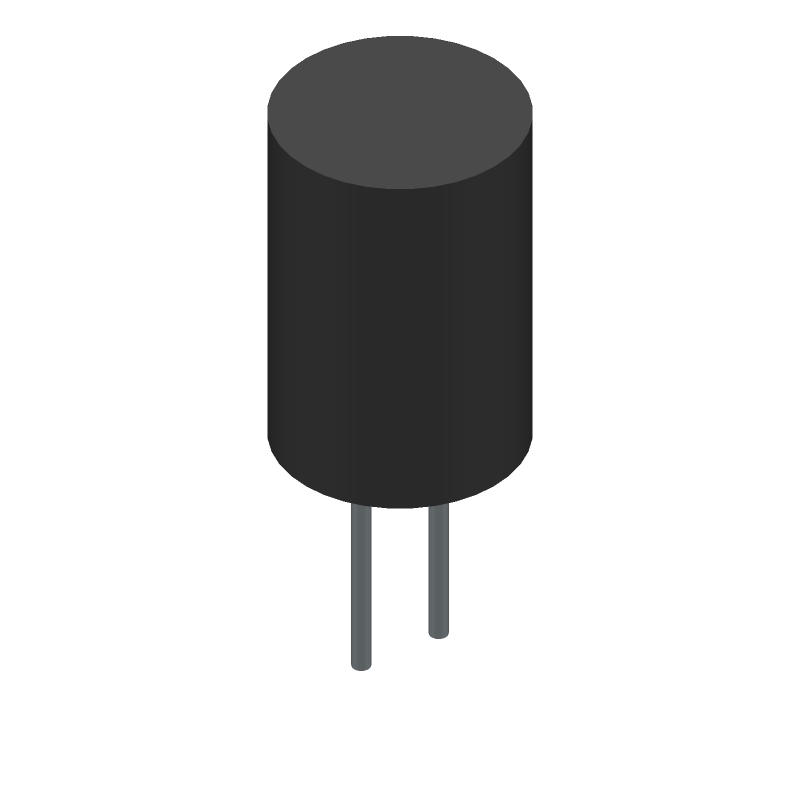

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EEUFC1E221 Part Data Attributes

Parametric Data
EEUFC1E221 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
EEUFC1E221 Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description RADIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 30 Weeks, 1 Day
Samacsys Manufacturer Panasonic
Capacitance 220 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 8 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 0.055 mA
Length 11.5 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method BULK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 25 V
Reference Standard AEC-Q200
Ripple Current 360.75 mA
Surface Mount NO
Tan Delta 0.14
Terminal Finish Tin (Sn)
Terminal Pitch 3.5 mm
Terminal Shape WIRE

Alternate Parts for EEUFC1E221

This table gives cross-reference parts and alternative options found for EEUFC1E221. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEUFC1E221, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NRWA221M25V8X11.5TBSTF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT EEUFC1E221 vs NRWA221M25V8X11.5TBSTF
LXYR1EM221 Luminous Town Electric Co Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 220uF EEUFC1E221 vs LXYR1EM221
227KXM025MSA Cornell Dubilier Electronics Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, EEUFC1E221 vs 227KXM025MSA
EKME250ETD221MHB5S United Chemi-Con Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 220uF, EEUFC1E221 vs EKME250ETD221MHB5S
EKMG250ELL221MHB5D Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT EEUFC1E221 vs EKMG250ELL221MHB5D
NRWS221M25V8X11.5TBNF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT EEUFC1E221 vs NRWS221M25V8X11.5TBNF
25YXA220MEFCCA8X11.5 Rubycon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 220uF, EEUFC1E221 vs 25YXA220MEFCCA8X11.5
RD1E227M0811MML Samwha Electronics Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, EEUFC1E221 vs RD1E227M0811MML
RD1E227M0811MPG Samwha Electronics Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT EEUFC1E221 vs RD1E227M0811MPG
NRSZC221M25V8X11.5TBSTF NIC Components Corp Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT EEUFC1E221 vs NRSZC221M25V8X11.5TBSTF

EEUFC1E221 Related Parts

EEUFC1E221 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for EEUFC1E221 is between 250°C to 260°C for a maximum of 5 seconds.

  • Yes, EEUFC1E221 is designed to withstand high-vibration environments. It has a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 directions.

  • Yes, EEUFC1E221 is AEC-Q200 qualified, making it suitable for automotive applications.

  • The ESR of EEUFC1E221 is 0.015 ohms maximum at 100 kHz.

  • Yes, EEUFC1E221 has a moisture resistance of 40°C, 90% RH, 1000 hours, making it suitable for humid environments.
