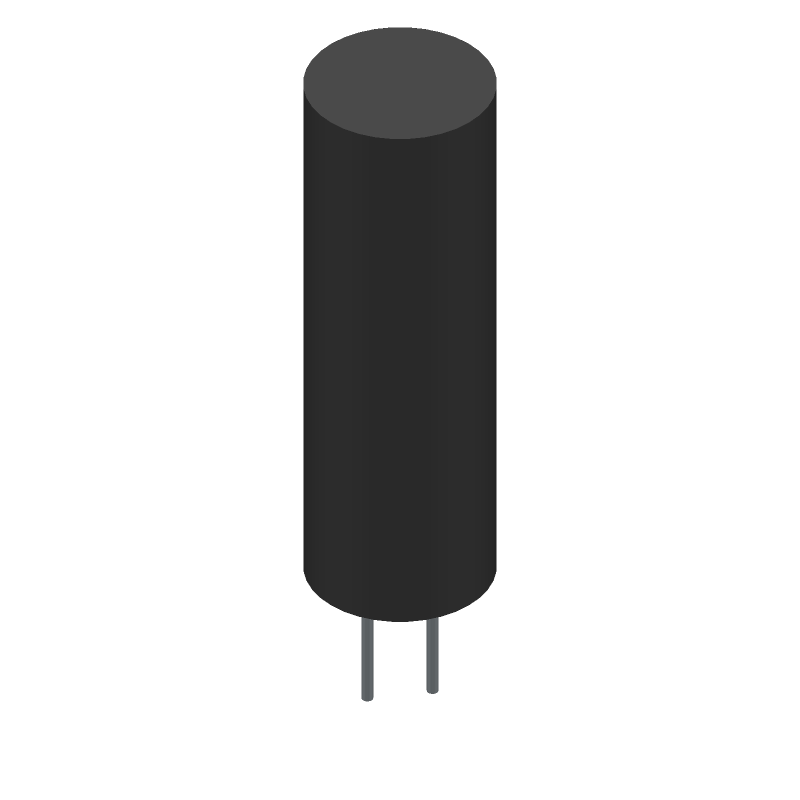

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEUFC1E102L by Panasonic Electronic Components
Results Overview of EEUFC1E102L by Panasonic Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
EEUFC1E102L Information
EEUFC1E102L by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEUFC1E102L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62W7734
|
Newark | Aluminium Electrolytic Capacitor, Aec-Q200 Fc Series, 1000 - F, - 20%, 25 V, 10 Mm Rohs Compliant: Yes |Panasonic EEUFC1E102L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2949 |
|
$0.4600 / $0.9760 | Buy Now |
|
DISTI #
EEUFC1E102L
|
TME | Capacitor: electrolytic, low ESR, THT, 1000uF, 25VDC, Ø10x30mm Min Qty: 1 | 38 |
|
$0.5040 / $1.0650 | Buy Now |
|
DISTI #
EEUFC1E102L
|
Avnet Abacus | Aluminum Electrolytic Capacitor 1000 uF 25 V 20 3000 hours 105C Radial Leaded (Alt: EEUFC1E102L) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 23 Weeks, 0 Days | Abacus - 300 |
|
Buy Now | |
|
|
Vyrian | Capacitors | 3928 |
|
RFQ |
Part Details for EEUFC1E102L
EEUFC1E102L CAD Models
EEUFC1E102L Part Data Attributes
|
|
EEUFC1E102L
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEUFC1E102L
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 1000 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 10 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.25 mA | |
| Length | 30 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 1361.25 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.14 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE |
