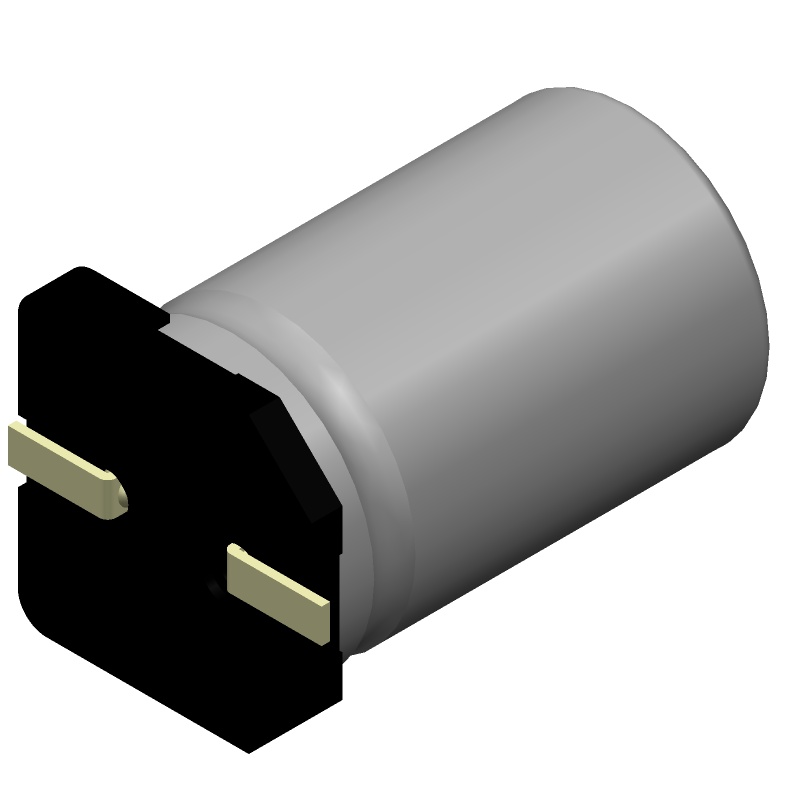

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEHZS1J181UP by Panasonic Electronic Components
Results Overview of EEHZS1J181UP by Panasonic Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EEHZS1J181UP Information
EEHZS1J181UP by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEHZS1J181UP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AJ5343
|
Newark | Cap, 180Uf, 63V, Alu Elec, Hybrid, Smd Rohs Compliant: Yes |Panasonic EEHZS1J181UP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.6000 / $2.9300 | Buy Now |
|
DISTI #
50AJ7982
|
Newark | Cap, 180Uf, 63V, Alu Elec, Hybrid, Smd, Capacitance:180Μf, Capacitance Tolerance:± 20%, Voltage(Dc):63V, Capacitor Case/Package:Radial Can - Smd, Esr:0.015Ohm, Lifetime @ Temperature:4000 Hours @ 125°C, Product Diameter:10Mm Rohs Compliant: Yes |Panasonic EEHZS1J181UP RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9550 / $1.2900 | Buy Now |
|
DISTI #
EEHZS1J181UP
|
TME | Capacitor: hybrid, 180uF, 63VDC, ESR: 15mΩ, ZS, SMD, ±20%, -55÷125°C Min Qty: 250 | 0 |
|
$1.2400 | RFQ |
|
DISTI #
EEHZS1J181UP
|
Avnet Abacus | (Alt: EEHZS1J181UP) RoHS: Not Compliant Min Qty: 500 Package Multiple: 250 Lead time: 23 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for EEHZS1J181UP
EEHZS1J181UP CAD Models
EEHZS1J181UP Part Data Attributes
|
|
EEHZS1J181UP
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEHZS1J181UP
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 63V, 20% +Tol, 20% -Tol, 180uF, Surface Mount, 4141, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | ESR IS MEASURED AT 100KHZ | |
| Capacitance | 180 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Dielectric Material | ALUMINUM (SOLID POLYMER) | |
| ESR | 15 mΩ | |
| Height | 16.5 mm | |
| Leakage Current | 0.1134 mA | |
| Length | 10.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 63 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 525 mA | |
| Size Code | 4141 | |
| Surface Mount | YES | |
| Tan Delta | 0.08 | |
| Terminal Shape | FLAT | |
| Width | 10.3 mm |
