EEHZA1J330P Information
EEHZA1J330P by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEHZA1J330P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AC4850
|
Newark | Cap, 33Μf, 63V, 20% Rohs Compliant: Yes |Panasonic EEHZA1J330P RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel | 5500 |
|
$0.6480 / $0.6950 | Buy Now |
|
DISTI #
73576428
|
Verical | Cap Aluminum Polymer Hybrid 33uF 63VDC 20%( 8 X 10.2mm) SMD 0.04 Ohm 1.7A 10000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 500 Package Multiple: 500 Date Code: 2326 | Americas - 2000 |
|
$1.0946 / $1.2337 | Buy Now |
|
DISTI #
EEHZA1J330P
|
TME | Capacitor: hybrid, 33uF, 63VDC, ESR: 40mΩ, ZA, SMD, ±20%, -55÷105°C Min Qty: 10 | 0 |
|
$0.5750 / $0.9900 | RFQ |
|
DISTI #
EEHZA1J330P
|
Avnet Abacus | Hybrid Aluminium Electrolytic Capacitor 33 F 20 63 V Radial Can SMD 004 ohm - Tape and Reel (Alt: EEHZA1J330P) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 63V 20% 33uF SMDD8xL10.5mm Hybrid Aluminum Electrolytic Capacitors ROHS | 2 |
|
$0.3289 / $0.6016 | Buy Now |
|
|
Vyrian | Capacitors | 8469 |
|
RFQ |
Part Details for EEHZA1J330P

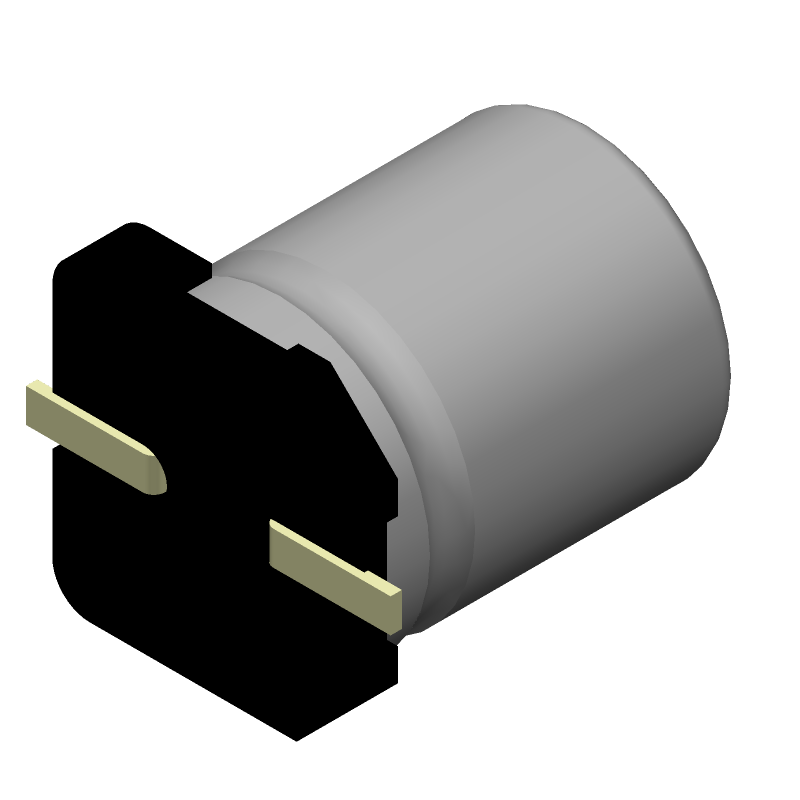

EEHZA1J330P CAD Models
EEHZA1J330P Part Data Attributes
|
|
EEHZA1J330P
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEHZA1J330P
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 63V, 20% +Tol, 20% -Tol, 33uF, Surface Mount, 3333, CHIP, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks, 1 Day | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | ESR IS MEASURED AT 100 KHZ | |
| Capacitance | 33 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Dielectric Material | ALUMINUM (SOLID POLYMER) | |
| ESR | 40 mΩ | |
| Height | 10.2 mm | |
| Leakage Current | 0.02079 mA | |
| Length | 8.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 63 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 170 mA | |
| Size Code | 3333 | |
| Surface Mount | YES | |
| Tan Delta | 0.08 | |
| Terminal Shape | FLAT | |
| Width | 8.3 mm |
