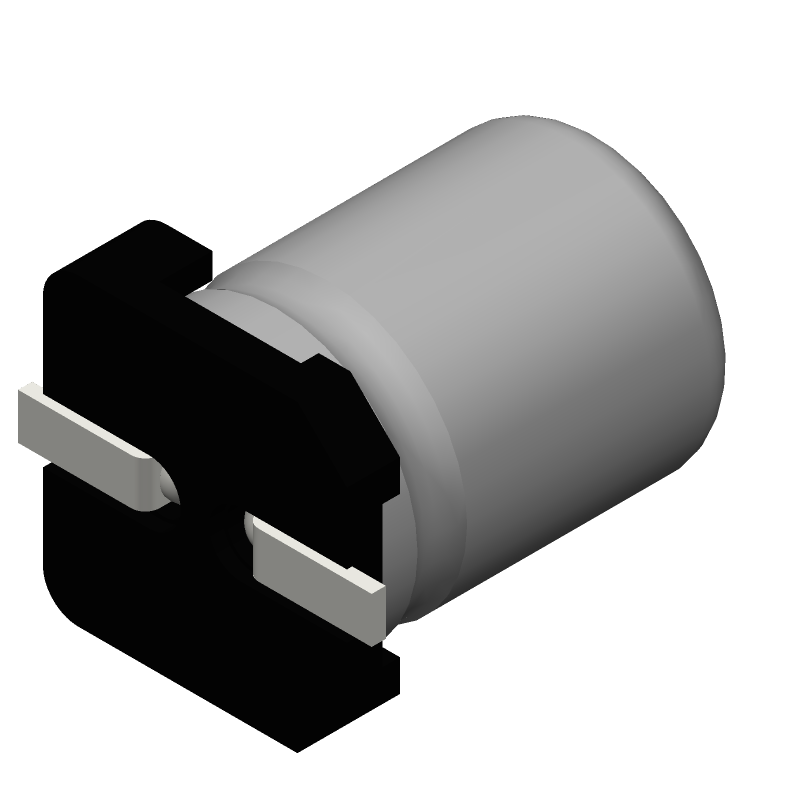

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEEFTH100UAR by Panasonic Electronic Components
Results Overview of EEEFTH100UAR by Panasonic Electronic Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
EEEFTH100UAR Information
EEEFTH100UAR by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEEFTH100UAR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89Y7226
|
Newark | Cap, 10Μf, 50V, Radial, Smd Reel, Ae Capacitor Case:Radial Can - Smd, Capacitance:10Μf, Voltage Rating:50V, Esr:2.3Ohm, Product Range:Ft Series, Lifetime @ Temperature:2000 Hours @ 105°C, Operating Temperature Min:-55°C, Operating Rohs Compliant: Yes |Panasonic EEEFTH100UAR RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 1 Container: Reel | 14000 |
|
$0.1140 / $0.1200 | Buy Now |
|
DISTI #
85AK4277
|
Newark | Cap, Alu Elec, 10Uf, 50V, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:10Μf, Voltage(Dc):50V, Esr:2.3Ohm, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Product Range:Ft Series, Capacitance Tolerance:± 20% Rohs Compliant: Yes |Panasonic EEEFTH100UAR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 12000 |
|
$0.1360 / $0.4490 | Buy Now |
|
|
Bristol Electronics | 4000 |
|
RFQ | ||
|
DISTI #
EEEFTH100UAR
|
TME | Capacitor: electrolytic, low ESR, SMD, 10uF, 50VDC, Ø4x5.8mm, ±20% Min Qty: 5 | 2985 |
|
$0.0670 / $0.1830 | Buy Now |
|
DISTI #
EEEFTH100UAR
|
Avnet Abacus | SMD Aluminium Electrolytic Capacitor Radial Can SMD 10 F 50 V 23 ohm 2000 hours 105C - Tape and Reel (Alt: EEEFTH100UAR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 92000 |
|
Buy Now | |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 59 |
|
RFQ | |
|
|
LCSC | 10uF 50V 85mA100kHz 2.3100kHz 20% SMDD4xL5.8mm Aluminum Electrolytic Capacitors - SMD ROHS | 1395 |
|
$0.0812 / $0.1648 | Buy Now |
|
|
New Advantage Corporation | Cap Alu SMD 10uF 20% 50V 105C 2000hrs 85mA 4x5.8 Auto Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 2000 | 58000 |
|
$0.1206 / $0.1303 | Buy Now |
|
|
Vyrian | Capacitors | 15464 |
|
RFQ |
Part Details for EEEFTH100UAR
EEEFTH100UAR CAD Models
EEEFTH100UAR Part Data Attributes
|
|
EEEFTH100UAR
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEEFTH100UAR
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1717, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | ESR IS MEASURED AT 100KHZ | |
| Capacitance | 10 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 4 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| ESR | 2300 mΩ | |
| Height | 5.8 mm | |
| Leakage Current | 0.005 mA | |
| Length | 4.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 55.25 mA | |
| Size Code | 1717 | |
| Surface Mount | YES | |
| Tan Delta | 0.10 | |
| Terminal Shape | FLAT | |
| Width | 4.3 mm |
EEEFTH100UAR Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the EEEFTH100UAR is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the EEEFTH100UAR is designed to withstand high-vibration environments and is suitable for use in applications such as automotive and industrial systems.
-
The ESR of the EEEFTH100UAR is approximately 10 mohms at 100 kHz.
-
Yes, the EEEFTH100UAR is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum ripple current rating for the EEEFTH100UAR is 1.5 Arms at 100 kHz.
