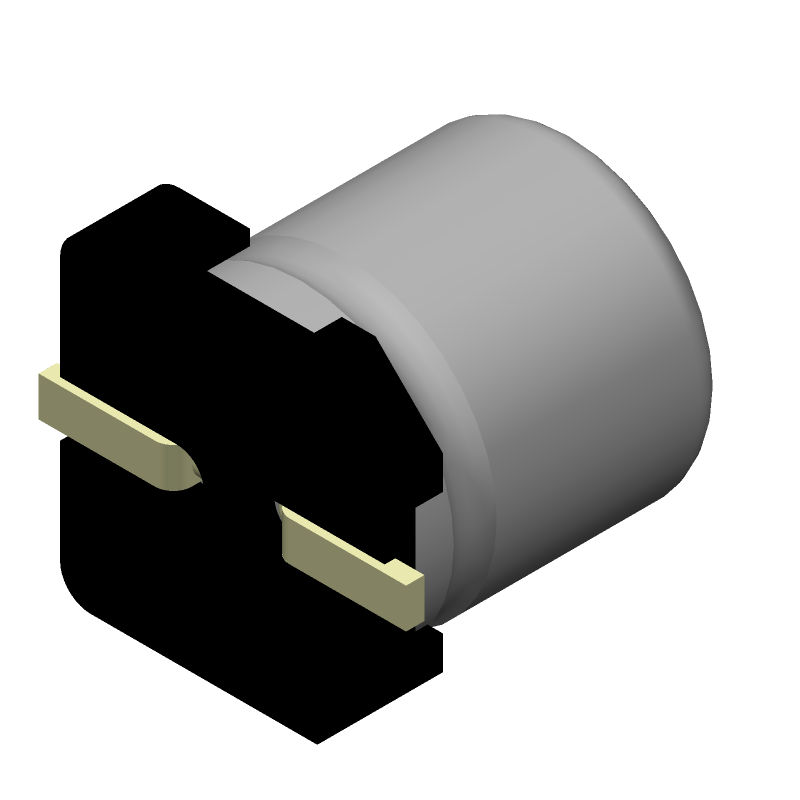

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEEFT1C101AR by Panasonic Electronic Components
Results Overview of EEEFT1C101AR by Panasonic Electronic Components
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
EEEFT1C101AR Information
EEEFT1C101AR by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEEFT1C101AR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89Y7236
|
Newark | Cap, Alu Elec, 100Uf, 16Vdc, Smd Can, Ae Capacitor Case:Radial Can - Smd, Capacitance:100Μf, Voltage Rating:16V, Esr:0.36Ohm, Product Range:Ft Series, Lifetime @ Temperature:2000 Hours @ 105°C, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Panasonic EEEFT1C101AR RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel | 81498 |
|
$0.1290 / $0.1380 | Buy Now |
|
DISTI #
85AK4285
|
Newark | Cap, Alu Elec, 100Uf, 16V, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:100Μf, Voltage(Dc):16V, Esr:0.36Ohm, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Product Range:Ft Series, Product Diameter:5Mm Rohs Compliant: Yes |Panasonic EEEFT1C101AR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 27950 |
|
$0.1490 / $0.1760 | Buy Now |
|
DISTI #
70349111
|
RS | 100uF 16V dc ALUM Electrolytic Capacitor C, FT SMD Series 2000h 5(Dia.)x5.8mm Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2480 / $0.3540 | RFQ |
|
DISTI #
EEEFT1C101AR
|
TME | Capacitor: electrolytic, low ESR, SMD, 100uF, 16VDC, Ø5x5.8mm, ±20% Min Qty: 1 | 15711 |
|
$0.0800 / $0.4050 | Buy Now |
|
DISTI #
KEL18346
|
Rutronik | V-FT 100uF 16V 20% 5x6 RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Stock DE - 1000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.1165 / $0.1511 | Buy Now |
|
DISTI #
SMC-EEEFT1C101AR
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 351 |
|
RFQ | |
|
DISTI #
EEEFT1C101AR
|
Avnet Abacus | Aluminum Electrolytic Capacitor 100 uF 16 V 20 2000 hours 105C Radial Can SMD - Tape and Reel (Alt: EEEFT1C101AR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 100000 |
|
Buy Now | |
|
|
Cytech Systems Limited | 3000 |
|
RFQ | ||
|
|
LCSC | 100uF 16V 240mA100kHz 360m100kHz 20% SMD Aluminum Electrolytic Capacitors - SMD ROHS | 6905 |
|
$0.1031 / $0.2128 | Buy Now |
|
|
New Advantage Corporation | CapAluminiumSMD100uF20%16V105C2000hrs240mA5x5.8Auto RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 126000 |
|
$0.1422 / $0.1537 | Buy Now |
Part Details for EEEFT1C101AR
EEEFT1C101AR CAD Models
EEEFT1C101AR Part Data Attributes
|
|
EEEFT1C101AR
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEEFT1C101AR
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2121, CHIP, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | ESR IS MEASURED AT 100KHZ | |
| Capacitance | 100 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 5 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| ESR | 360 mΩ | |
| Height | 5.8 mm | |
| Leakage Current | 0.016 mA | |
| Length | 5.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 16 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 156 mA | |
| Size Code | 2121 | |
| Surface Mount | YES | |
| Tan Delta | 0.16 | |
| Terminal Shape | FLAT | |
| Width | 5.3 mm |
EEEFT1C101AR Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for EEEFT1C101AR is 260°C for 10 seconds or less.
-
Yes, EEEFT1C101AR is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The ESR of EEEFT1C101AR is 0.15 ohms or less at 100 kHz.
-
Yes, EEEFT1C101AR is designed to operate in high-temperature environments, with a maximum operating temperature of 125°C.
-
Yes, EEEFT1C101AR meets the requirements for automotive applications, including AEC-Q200 qualification.
