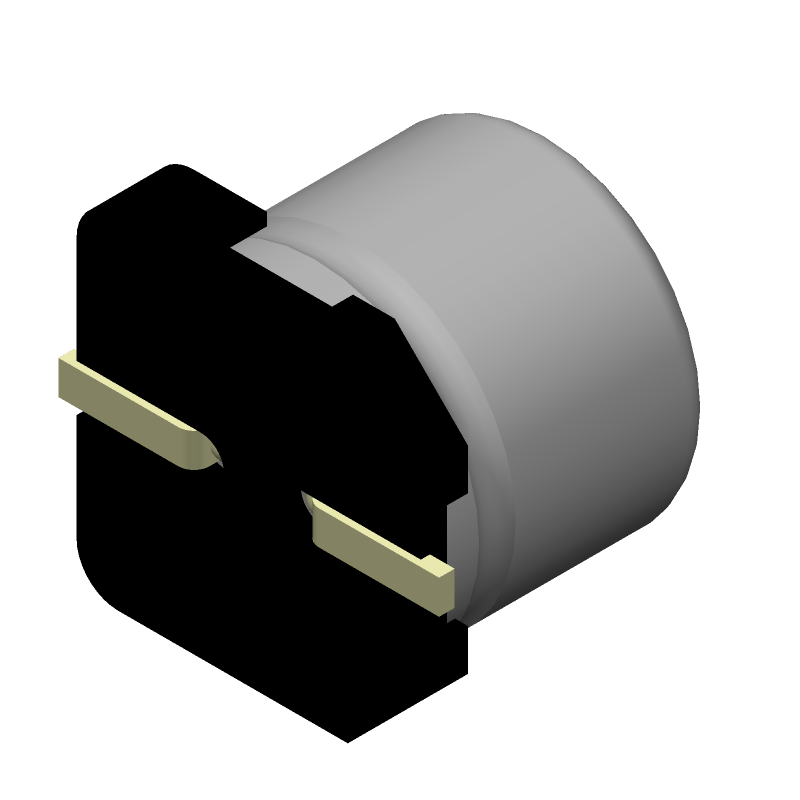

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEE1VA470WP by Panasonic Electronic Components
Results Overview of EEE1VA470WP by Panasonic Electronic Components
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
EEE1VA470WP Information
EEE1VA470WP by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEE1VA470WP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AC4829
|
Newark | Cap, Alu Elec, 47Uf, 35V, Smd Can, Ae Capacitor Case:Radial Can - Smd, Capacitance:47Μf, Voltage Rating:35V, Esr:-, Product Range:S Series, Lifetime @ Temperature:1000 Hours @ 85°C, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Panasonic EEE1VA470WP RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 24000 |
|
$0.1030 / $0.1040 | Buy Now |
|
DISTI #
53W3856
|
Newark | Aluminum Electrolytic Capacitor, 47Uf, 35V, 20%, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:47Μf, Voltage(Dc):35V, Esr:-, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Product Range:S Series, Msl:- Rohs Compliant: Yes |Panasonic EEE1VA470WP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 439 |
|
$0.0980 / $0.1070 | Buy Now |
|
|
Quest Components | CAP,AL2O3,47UF,35VDC,20-% TOL,20+% TOL | 2400 |
|
$0.1140 / $0.5700 | Buy Now |
|
|
Quest Components | CAP,AL2O3,47UF,35VDC,20-% TOL,20+% TOL (Also Known As: EEE-1VA470WP) | 2400 |
|
$0.1140 / $0.5700 | Buy Now |
|
|
Quest Components | CAP,AL2O3,47UF,35VDC,20-% TOL,20+% TOL (Also Known As: EEE-1VA470WP) | 52 |
|
$0.1680 / $0.5600 | Buy Now |
|
|
Quest Components | CAP,AL2O3,47UF,35VDC,20-% TOL,20+% TOL | 52 |
|
$0.1680 / $0.5600 | Buy Now |
|
DISTI #
EEE1VA470WP
|
TME | Capacitor: electrolytic, SMD, 47uF, 35VDC, Ø6.3x5.4mm, ±20%, 1000h Min Qty: 10 | 880 |
|
$0.1270 / $0.2750 | Buy Now |
|
|
NexGen Digital | 95 |
|
RFQ | ||
|
DISTI #
EEE1VA470WP
|
Avnet Abacus | SMD Aluminium Electrolytic Capacitor Radial Can SMD 47 F 35 V 1000 hours 85C Polar - Tape and Reel (Alt: EEE1VA470WP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 103000 |
|
Buy Now | |
|
|
New Advantage Corporation | Cap Alu SMD 47uF 20% 35V 85C 1000hrs 70mA 6.3x5.4 Auto RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 6000 |
|
$0.1219 / $0.1318 | Buy Now |
Part Details for EEE1VA470WP
EEE1VA470WP CAD Models
EEE1VA470WP Part Data Attributes
|
|
EEE1VA470WP
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEE1VA470WP
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 28 Weeks, 6 Days | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 47 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 6.3 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 5.4 mm | |
| Leakage Current | 0.0165 mA | |
| Length | 6.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 35 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 70 mA | |
| Size Code | 2626 | |
| Surface Mount | YES | |
| Tan Delta | 0.16 | |
| Terminal Shape | FLAT | |
| Width | 6.6 mm |
EEE1VA470WP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the EEE1VA470WP is between 250°C to 260°C for a maximum of 5 seconds.
-
Yes, the EEE1VA470WP is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high resonance frequency.
-
The EEE1VA470WP is designed to operate in high-temperature environments up to 125°C, with a capacitance change of ±15% within the operating temperature range.
-
Yes, the EEE1VA470WP is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The recommended storage condition for the EEE1VA470WP is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.
